101

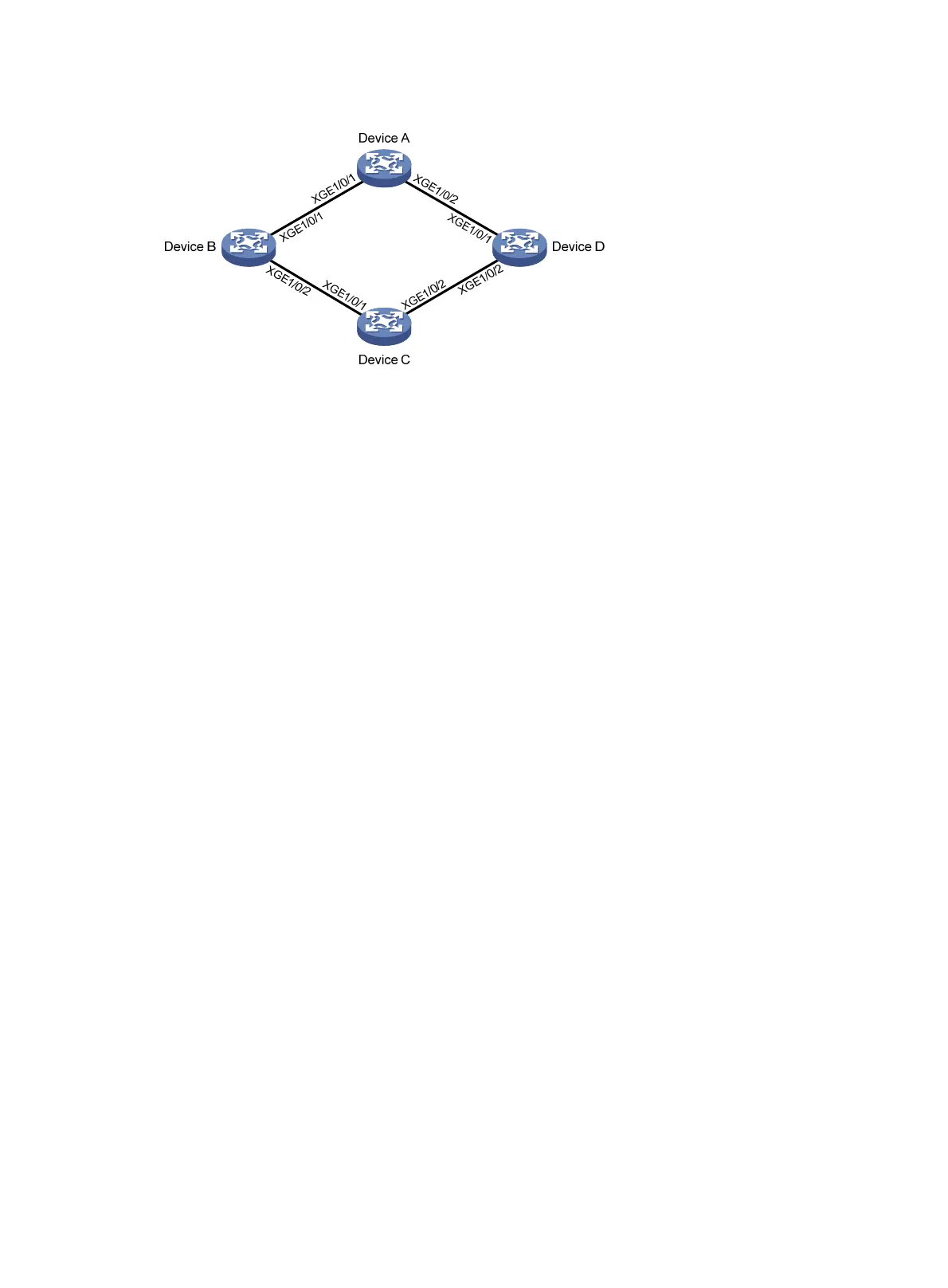

Figure 25 Network diagram

Configuration procedure

1. Configure Device C:

# Create VLAN 1 through VLAN 200, map VLANs 1 through 100 to MSTI 1, and VLANs 101

through 200 to MSTI 2, and activate MST region configuration.

<DeviceC> system-view

[DeviceC] vlan 1 to 200

[DeviceC] stp region-configuration

[DeviceC-mst-region] instance 1 vlan 1 to 100

[DeviceC-mst-region] instance 2 vlan 101 to 200

[DeviceC-mst-region] active region-configuration

[DeviceC-mst-region] quit

# Shut down Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2, disable the spanning

tree feature on them, configure them as trunk ports, and assign them to VLAN 1 through VLAN

200.

[DeviceC] interface ten-gigabitethernet 1/0/1

[DeviceC-Ten-GigabitEthernet1/0/1] shutdown

[DeviceC-Ten-GigabitEthernet1/0/1] undo stp enable

[DeviceC-Ten-GigabitEthernet1/0/1] port link-type trunk

[DeviceC-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 to 200

[DeviceC-Ten-GigabitEthernet1/0/1] quit

[DeviceC] interface ten-gigabitethernet 1/0/2

[DeviceC-Ten-GigabitEthernet1/0/2] shutdown

[DeviceC-Ten-GigabitEthernet1/0/2] undo stp enable

[DeviceC-Ten-GigabitEthernet1/0/2] port link-type trunk

[DeviceC-Ten-GigabitEthernet1/0/2] port trunk permit vlan 1 to 200

[DeviceC-Ten-GigabitEthernet1/0/2] quit

# Create smart link group 1, and configure all VLANs mapped to MSTI 1 as the protected

VLANs for smart link group 1.

[DeviceC] smart-link group 1

[DeviceC-smlk-group1] protected-vlan reference-instance 1

# Configure Ten-GigabitEthernet 1/0/1 as the primary port and Ten-GigabitEthernet 1/0/2 as

the secondary port for smart link group 1.

[DeviceC-smlk-group1] port ten-gigabitethernet 1/0/1 primary

[DeviceC-smlk-group1] port ten-gigabitethernet 1/0/2 secondary
