HPE FlexFabric 5700 Series Configuration Guide

192
Reply from 20.1.1.1: bytes=56 Sequence=3 ttl=254 time=1 ms
Reply from 20.1.1.1: bytes=56 Sequence=4 ttl=254 time=1 ms
Reply from 20.1.1.1: bytes=56 Sequence=5 ttl=254 time=1 ms
--- Ping statistics for 20.1.1.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.00% packet loss
round-trip min/avg/max/std-dev = 1/1/2/1 ms
Static routing-Track-BFD collaboration configuration
example
Network requirements
As shown in Figure 48:
• Switch A is the default gateway of the hosts in subnet 20.1.1.0/24.
• Switch B is the default gateway of the hosts in subnet 30.1.1.0/24.
• Hosts in the two subnets communicate with each other through static routes.
To ensure network availability, configure route backup and static routing-Track-BFD collaboration on
Switch A and Switch B as follows:
• On Switch A, assign a higher priority to the static route to 30.1.1.0/24 with Switch B as the next
hop. This route is the master route. The static route to 30.1.1.0/24 with Switch C as the next hop
acts as the backup route. When the master route is unavailable, BFD can quickly detect the
route failure to make the backup route take effect.
• On Switch B, assign a higher priority to the static route to 20.1.1.0/24 with Switch A as the next
hop. This route is the master route. The static route to 20.1.1.0/24 with Switch C as the next hop
acts as the backup route. When the master route is unavailable, BFD can quickly detect the
route failure to make the backup route take effect.

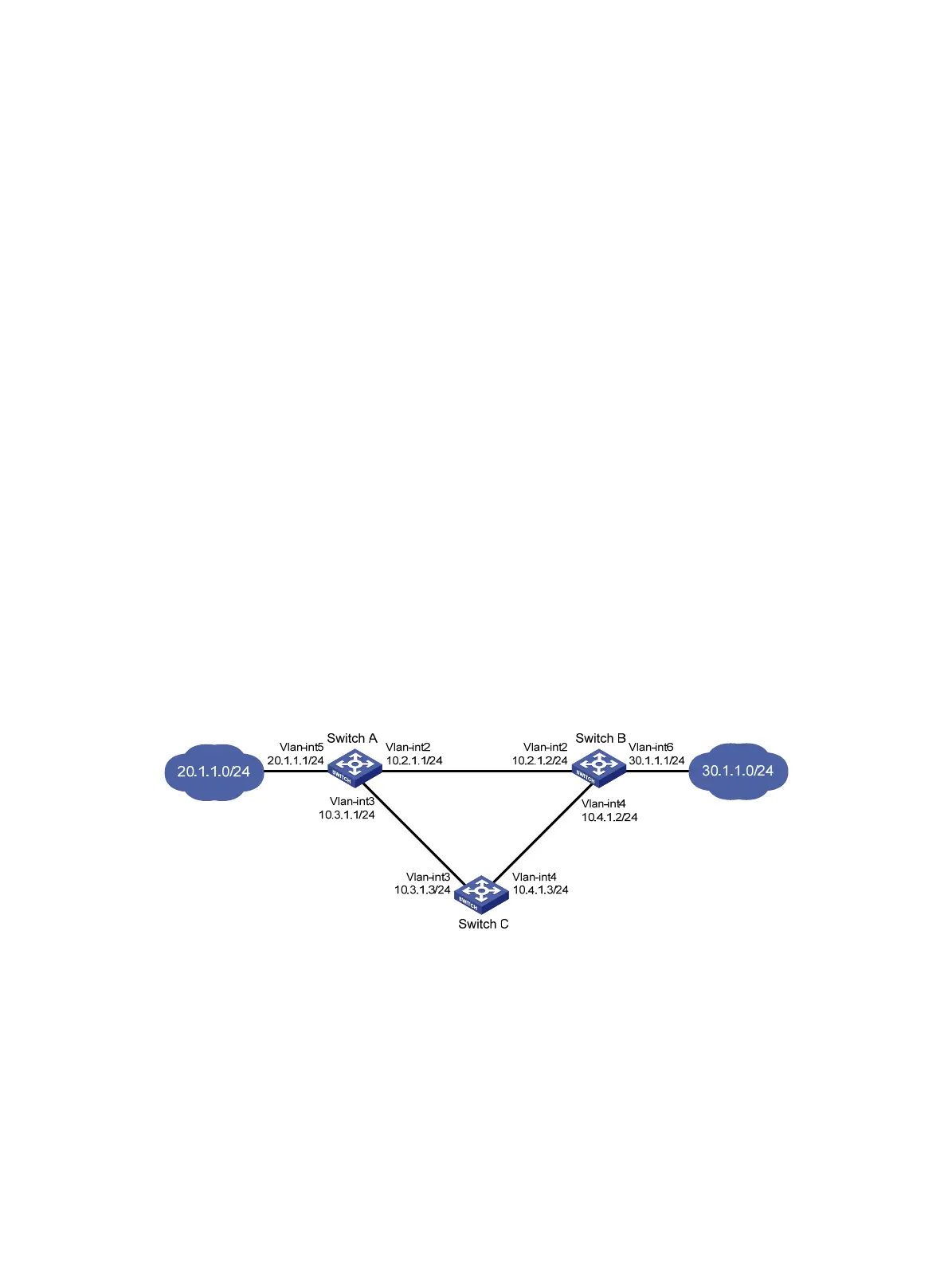

Figure 48 Network diagram
Configuration procedure
1. Create VLANs and assign ports to them. Configure the IP address of each VLAN interface as
shown in Figure 48. (Detai
ls not shown.)
2. Configure Switch A:
# Configure a static route to 30.1.1.0/24 with the next hop 10.2.1.2 and the default priority 60,
and associate this static route with track entry 1.
<SwitchA> system-view
[SwitchA] ip route-static 30.1.1.0 24 10.2.1.2 track 1
# Configure a static route to 30.1.1.0/24 with the next hop 10.3.1.3 and the priority 80.
[SwitchA] ip route-static 30.1.1.0 24 10.3.1.3 preference 80

HPE FlexFabric 5700 Series Specifications

General

Product Line	HPE FlexFabric
Model	5700 Series
Power Supply	Redundant power supply options
Layer Support	Layer 2/3
Management	HPE Intelligent Management Center (IMC), CLI, SNMP
Routing Protocol	RIP, OSPF, BGP, IS-IS
Features	Virtualization
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3ae
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (noncondensing)
Latency	Less than 1 µs
