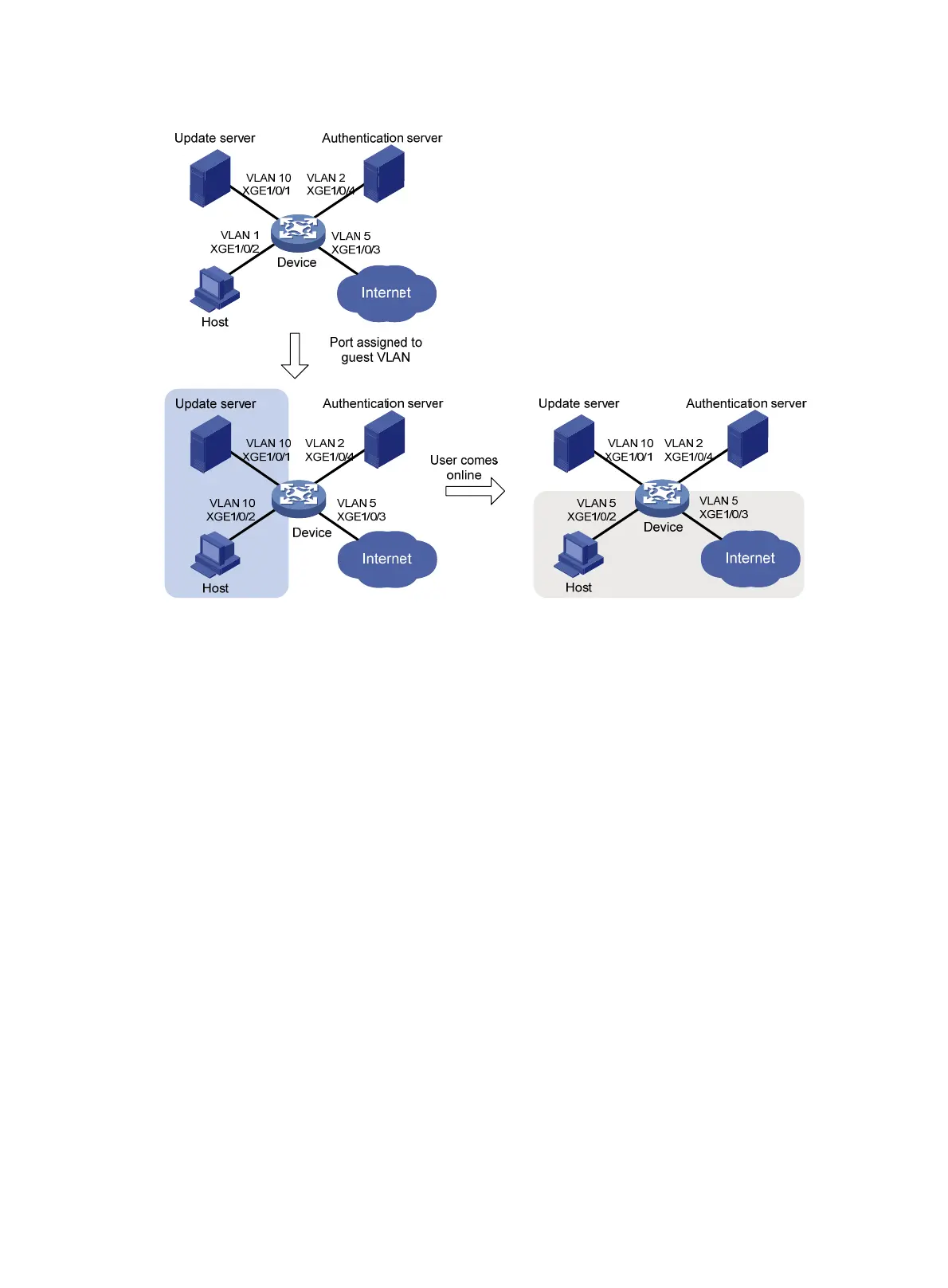

Figure 33 Network diagram
Configuration procedure
1. Configure the 802.1X client. Make sure the 802.1X client can update its IP address after the
access port is assigned to the guest VLAN or an authorization VLAN. (Details not shown.)
2. Configure the RADIUS server to provide authentication, authorization, and accounting services.
Configure user accounts and authorization VLAN (VLAN 5 in this example) for the users.
(Details not shown.)
3. Create VLANs, and assign ports to the VLANs on the access device.
<Device> system-view
[Device] vlan 1
[Device-vlan1] port ten-gigabitethernet 1/0/2
[Device-vlan1] quit
[Device] vlan 10
[Device-vlan10] port ten-gigabitethernet 1/0/1
[Device-vlan10] quit
[Device] vlan 2
[Device-vlan2] port ten-gigabitethernet 1/0/4
[Device-vlan2] quit
[Device] vlan 5
[Device-vlan5] port ten-gigabitethernet 1/0/3
[Device-vlan5] quit
4. Configure a RADIUS scheme on the access device:
# Create RADIUS scheme 2000 and enter RADIUS scheme view.
[Device] radius scheme 2000
# Specify the server at 10.11.1.1 as the primary authentication server, and set the
authentication port to 1812.
