490

Task Command

Display uRPF configuration.

display

urpf

[

slot

slot-number ]

Global uRPF configuration example

Network requirements

As shown in Figure 142, a client (Switch A) directly connects to an ISP switch (Switch B).

To prevent source address spoofing attacks, perform the following tasks:

• Enable strict uRPF check on Switch A.

• Enable strict uRPF check on Switch B.

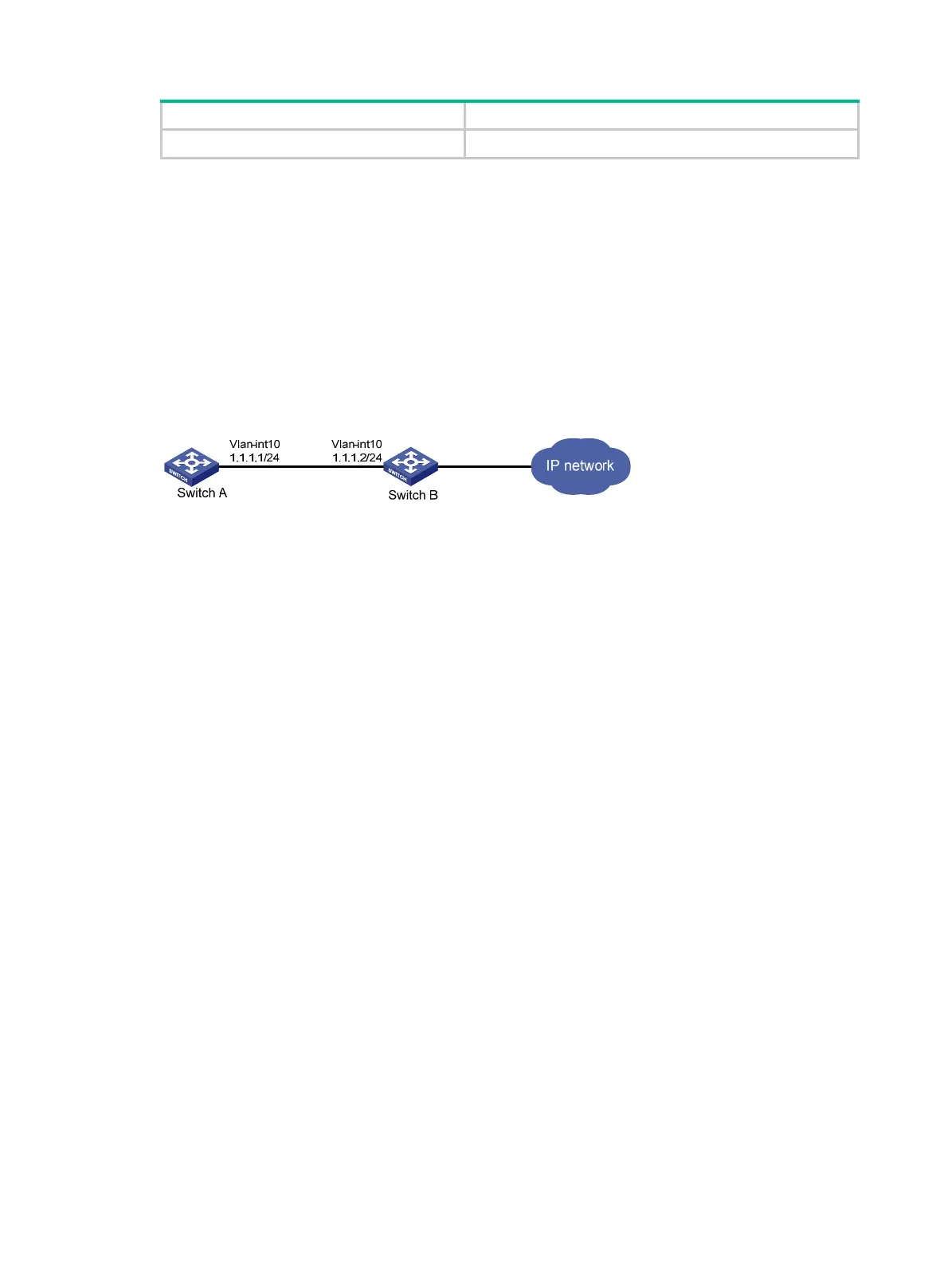

Figure 142 Network diagram

Configuration procedure

1. Enable strict uRPF check on Switch A.

<SwitchA> system-view

[SwitchA] ip urpf strict

2. Enable strict uRPF check on Switch B.

<SwitchB> system-view

[SwitchB] ip urpf strict
