Configuring extended direct portal authentication
Network requirements
As shown in Figure 58, the host is directly connected to the switch (the access device). The host is
assigned a public IP address either manually or through DHCP. A portal server acts as both a portal
authentication server and a portal Web server. A RADIUS server acts as the
authentication/accounting server.
Configure extended direct portal authentication. If the host fails security check after passing identity
authentication, it can access only subnet 192.168.0.0/24. After passing security check, the host can
access other network resources.

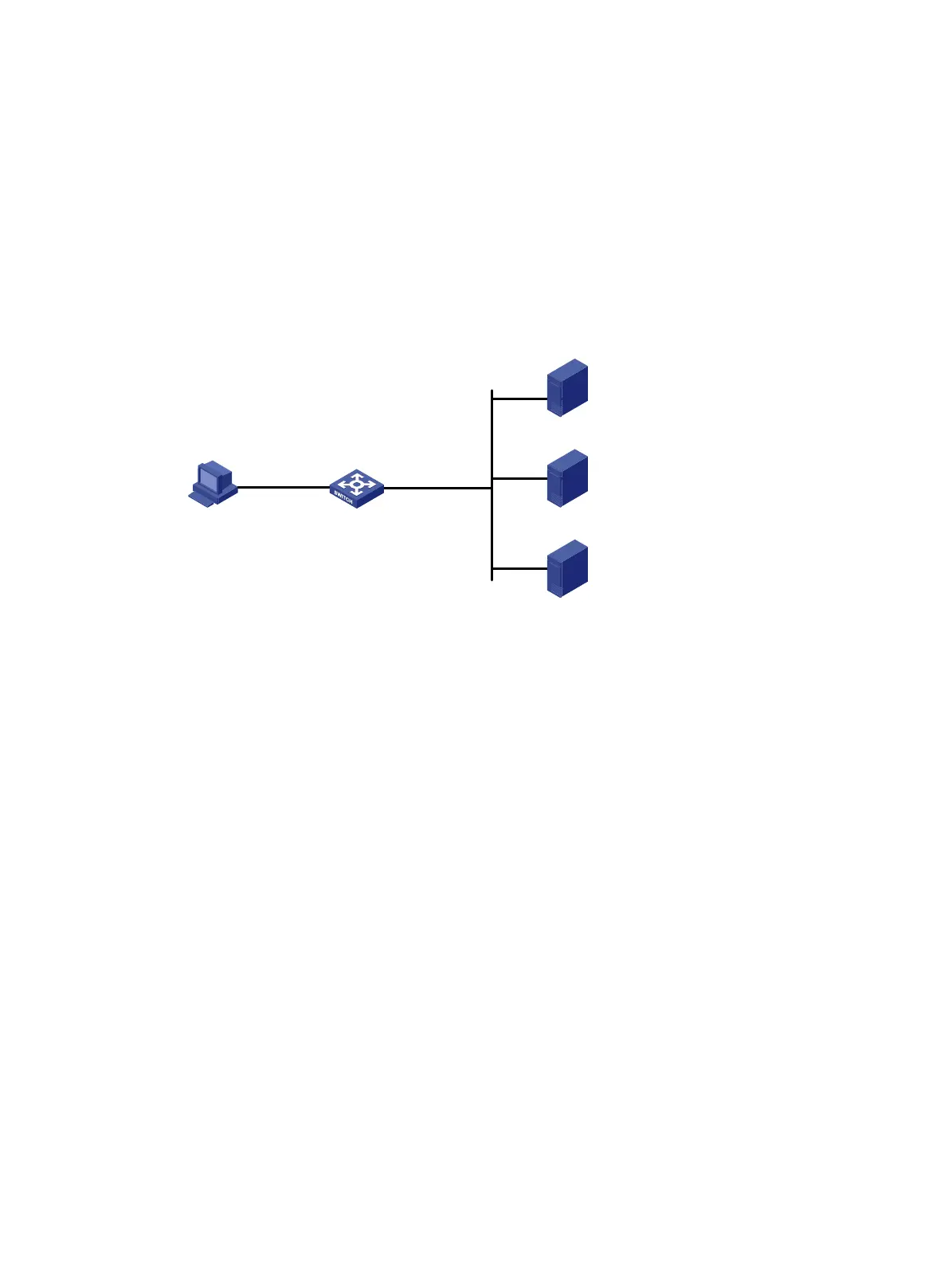

Figure 58 Network diagram
Configuration prerequisites
• Configure IP addresses for the host, switch, and servers as shown in Figure 58 and make sure
they can reach each other.
• Configure the RADIUS server correctly to provide authentication and accounting functions.
Configuration procedure
Perform the following tasks on the switch.
1. Configure a RADIUS scheme:
# Create a RADIUS scheme named rs1 and enter its view.
<Switch> system-view
[Switch] radius scheme rs1
# Specify the primary authentication server and primary accounting server, and configure the
keys for communication with the servers.
[Switch-radius-rs1] primary authentication 192.168.0.112
[Switch-radius-rs1] primary accounting 192.168.0.112
[Switch-radius-rs1] key accounting simple radius
[Switch-radius-rs1] key authentication simple radius
[Switch-radius-rs1] user-name-format without-domain
# Specify the security policy server.
[Switch-radius-rs1] security-policy-server 192.168.0.113
[Switch-radius-rs1] quit
# Enable RADIUS session control.
[Switch] radius session-control enable
Portal server
192.168.0.111/24
192.168.0.112/24
Security policy server
192.168.0.113/24
RADIUS server
Switch
Host
2.2.2.2/24
Gateway: 2.2.2.1/24
Vlan-int100
2.2.2.1/24
Vlan-int2
192.168.0.100/24
