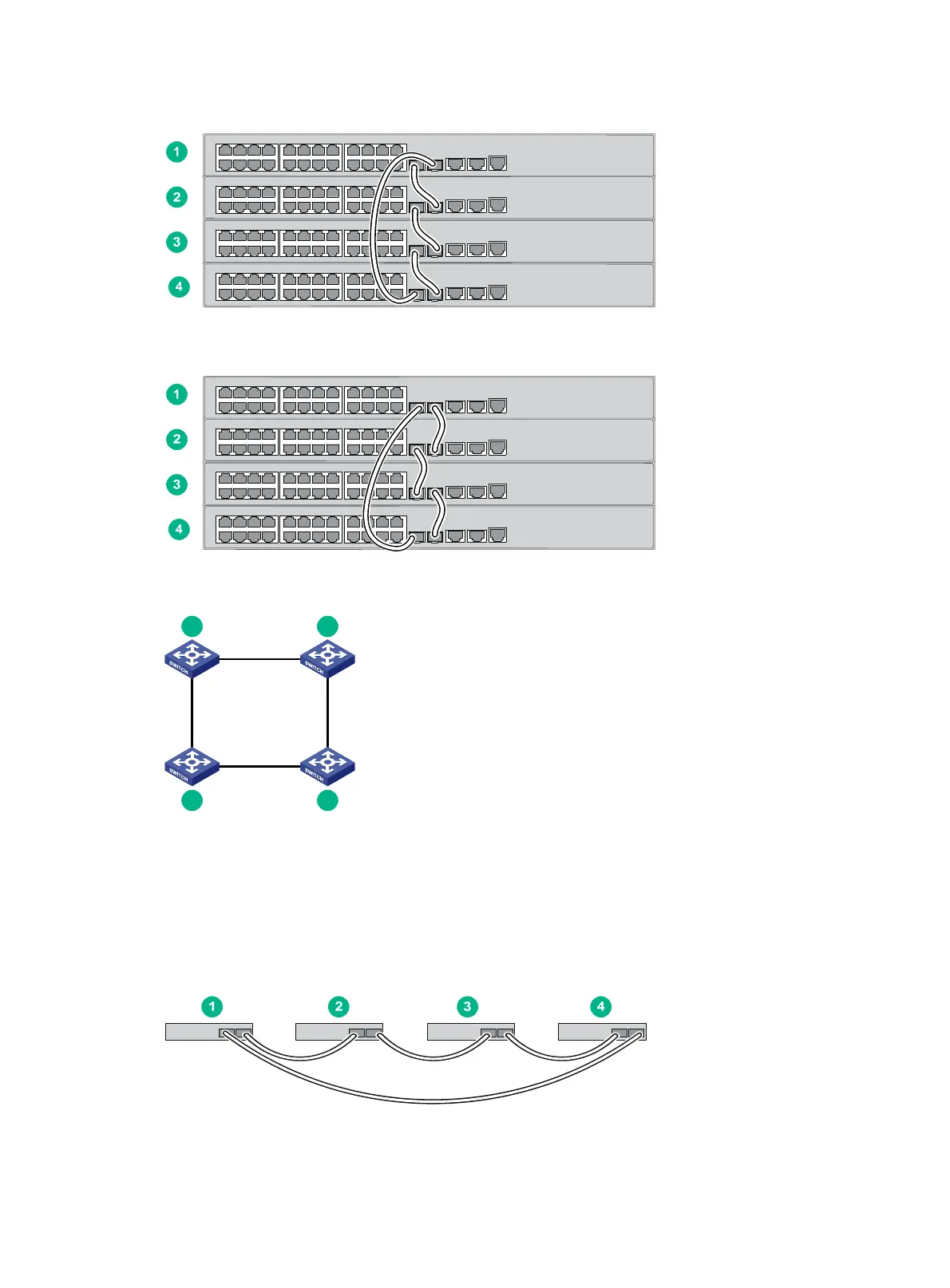

Figure 29 Connecting the switches in one rack (1)
Figure 30 Connecting the switches in one rack (2)
Figure 31 Stack topology
Connecting the stack member switches in a ToR solution
You can install stack member switches in different racks side by side to deploy a top of rack (ToR)
solution.
Figure 32 sho
ws an example for connecting four top of rack stack member switches by using SFP+
transceiver modules and optical fibers. The topology is the same as Figure 31.
Figure 32
ToR cabling
1 2
34

HPE OfficeConnect 1950 Series Specifications

General

Model	HPE OfficeConnect 1950 Series
Switch Type	Managed
Layer	Layer 2/3
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Routing Protocol	Static, RIP, OSPF
Operating Temperature	0°C to 45°C
QoS Support	Yes
Ports	24 or 48 Gigabit Ethernet ports
10G Ports	Optional 2 or 4 SFP+ ports
PoE Support	Yes
Stacking	Yes (up to 4 switches)
Management	Web-based, SNMP, CLI
Security	802.1X, ACLs, Port Security
Forwarding Rate	Up to 131 Mpps
Power Supply	Internal
Dimensions	Varies by model
Weight	Varies by model
Operating Humidity	10% to 90% non-condensing
