Chapter 3 Machenical Installation Shenzhen Hpmont Technology Co., Ltd.
- 14 - HD3N Series User Manual V1.1
Frame 8 - Frame 12

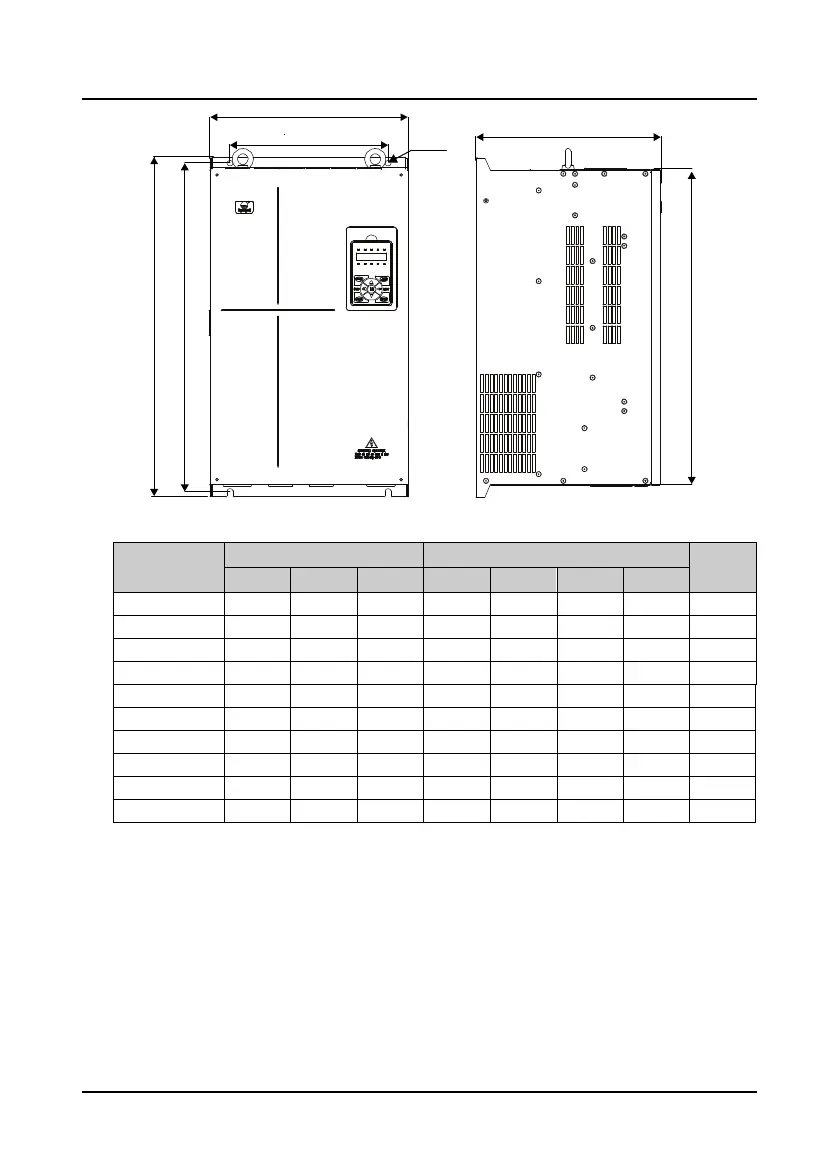

Table 3-3 HD3N dimensions and weight
Size
Dimension (mm) Mounting size (mm)
GW
(kg)
W H D W1 H1 H2 d
Frame 3 140 260 155 122 248 235 6 5.4
Frame 4 180 298 175 160 284 270 6 8.3
Frame 5 220 375 190 200 360 345 7 13
Frame 6 260 440 230 220 420 403 8 21
Frame 7 300 555 270 240 535 515 10 36
Frame 8 338 580 315 270 560 538 10 41.5
Frame 9 400 840 340 320 816 792 10 73
Frame 10 520 780 350 380 752 720 12 95
Frame 11 620 880 360 480 848 823 14 120
Frame 12 780 1350 394 620 1320 1281 14 260
