Huawei 2288H V5 - Page 65

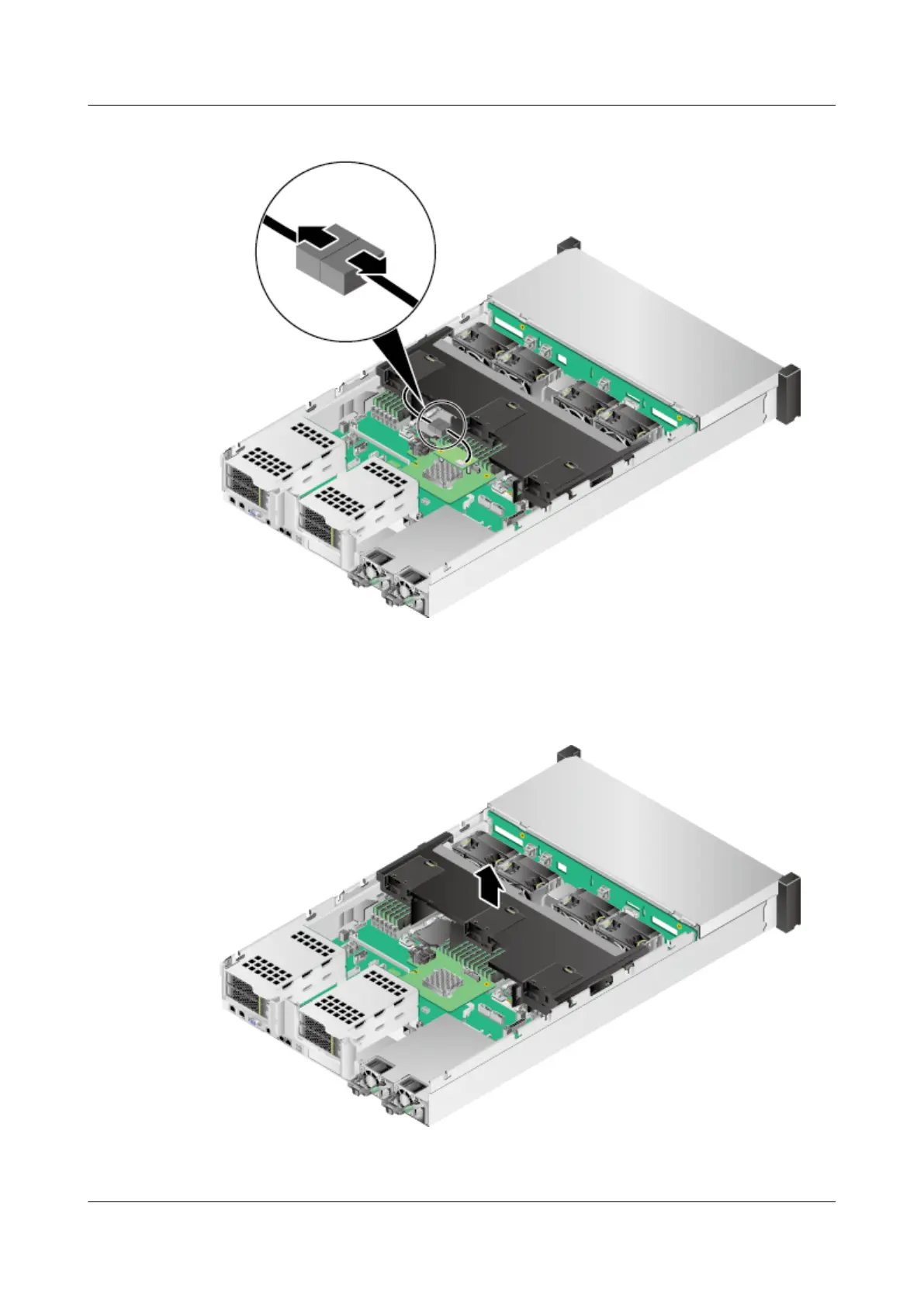

Figure 3-14 Removing the supercapacitor cable
Step 8 Lift the air duct according to the signs on the air duct. See Figure 3-15.
Figure 3-15 Removing the air duct
2288H V5 Server
User Guide
3 Basic Operations
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 56
