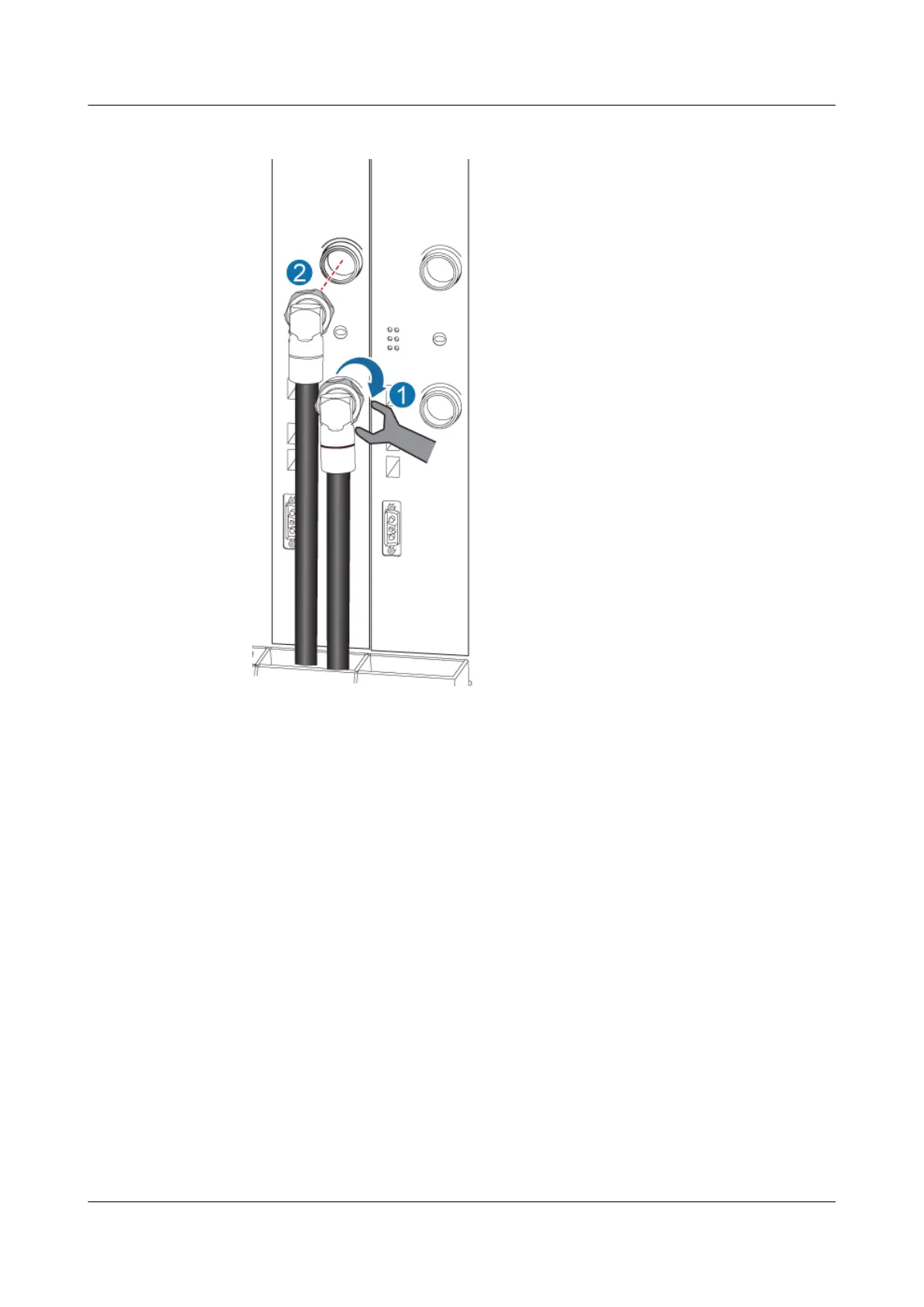

Figure 12-62 Fixing the DIN connector
Step 4 Seal the cable holes for RF jumpers, as shown in Figure 12-63.
1. Lead RF jumpers through corresponding cable holes, and then install the cable outlet
module on the bottom of the cabinet.
2. Use rubber caps to seal the idle cable holes in the cable outlet module.
3. Insert the metal piece, and then tighten the screw.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
142
