12.4.2 Installing the FE/GE Cable
This section describes the procedure and precautions to be taken for installing an FE/GE cable.
Procedure
Step 1 Connect one end of the FE/GE cable to the FE0 or FE1 port near the OUTSIDE label on the
UFLP, as shown in Figure 12-26 or Figure 12-27.
NOTE
l You must use shielded straight-through FE/GE cable.
l For details about how to connect the FE/GE cable, see Transmission Cable Connections.
l The descriptions about the installation positions and routes of the FE/GE cables in the -48 V DC cabinet
and in the APM30H are the same. For details, see Figure 12-26.

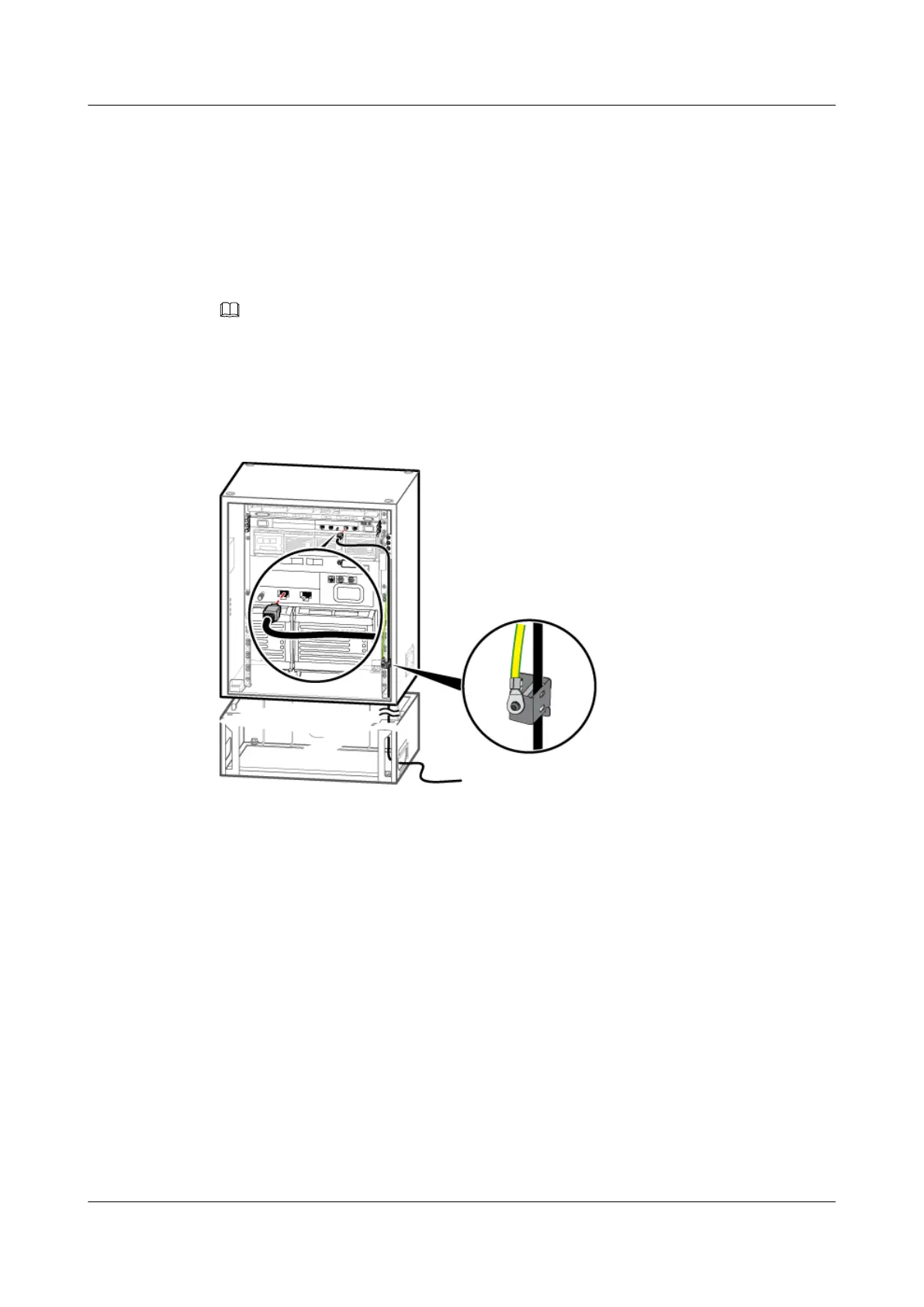

Figure 12-26 Installing the FE/GE cable (1)
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
