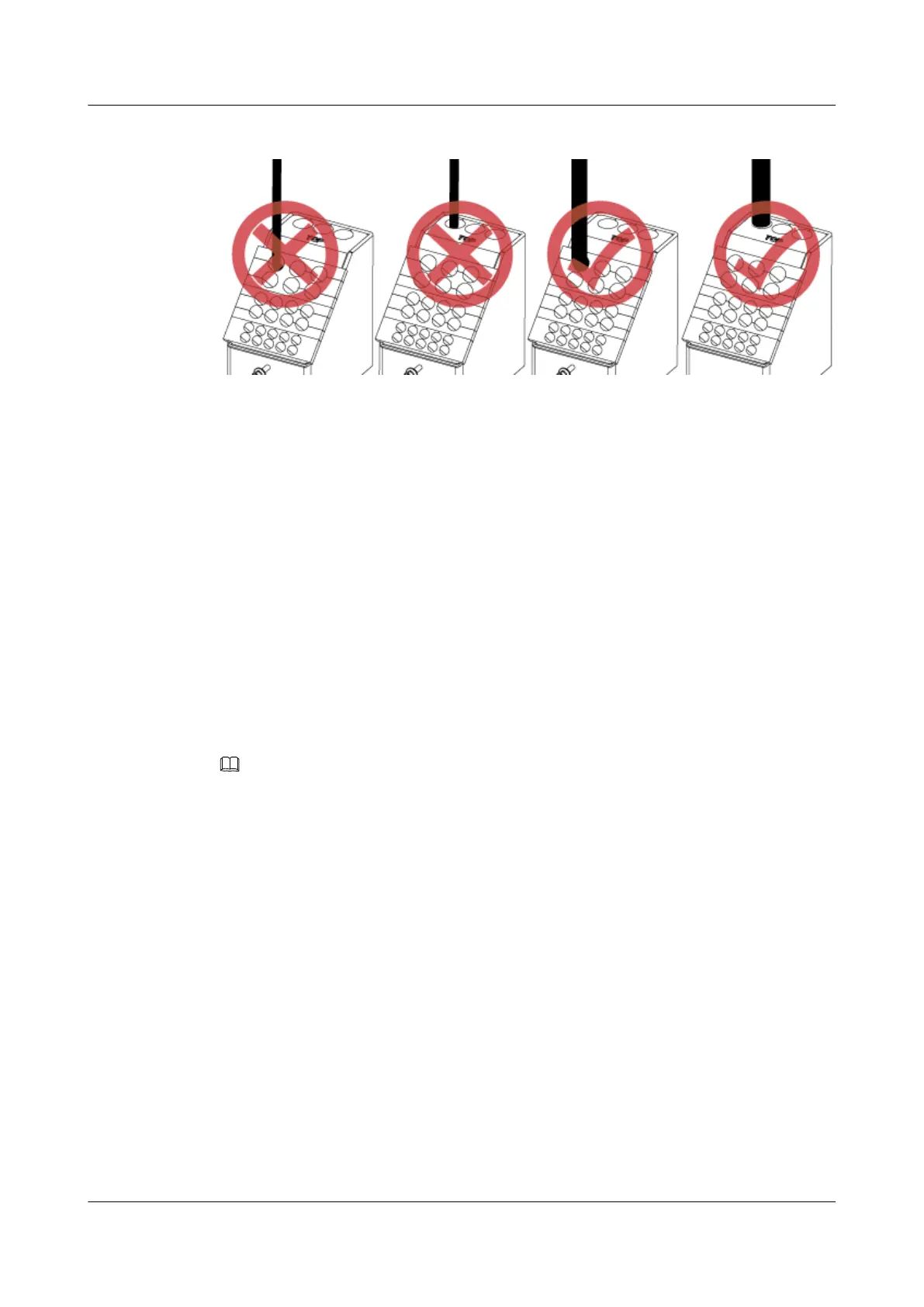

Figure 12-6 Leading the cable through the cable outlet module
Step 2 Use rubber caps to seal the idle cable holes.
Step 3 Tighten the screws in the front of the cable module to fix the module.
----End
12.3 Installing the Power Cable
This section describes the procedure and precautions for installing the external input power
cable.
Context
The BTS3900A cabinet is delivered with boards installed, and the power cables in the cabinet
are already installed. The external input power cables need to be installed on site.
NOTE
The color and appearance of the power cable is for reference only. The actual cables may differ from what
are shown in the figures.
12.3.1 Installing the Power Cable in the Cabinet with AC Power
Supply
This section describes the procedure and precautions for installing the power cable of each
cabinet in AC power supply scenario. The external power cables are often purchased on the local
market. The color of the power cables must be subject to local laws or regulations.
Installing the Input Power Cable for the APM30H
The input power cable for the APM30H is used to connect the external power equipment and
input wiring terminals on the EPS, feeding external power into the BTS3900A cabinets.
Prerequisite
l The tools, such as a Phillips screwdriver, cable cutter, and multi-purpose crimping tool, are
ready.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
87
