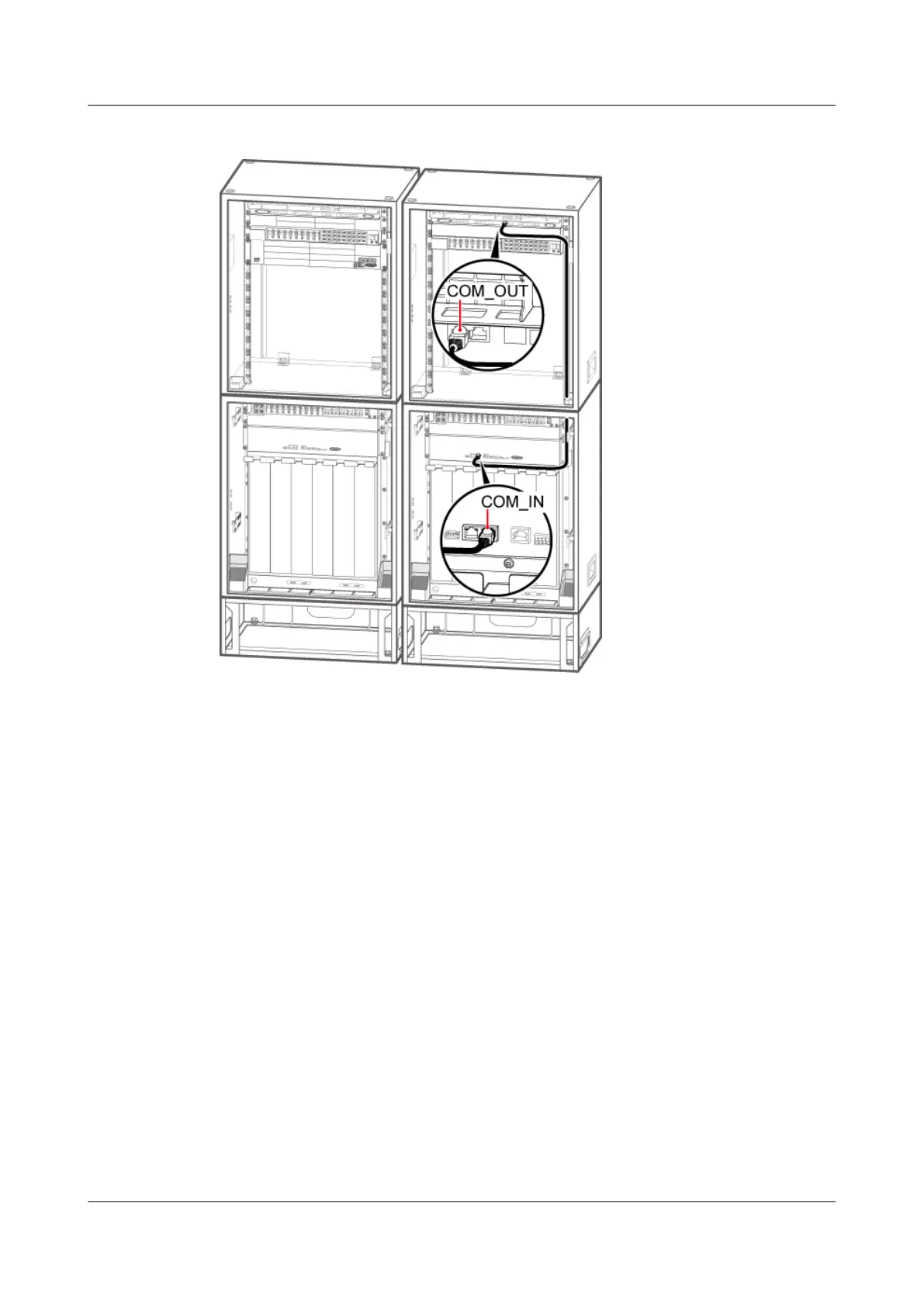

Figure 12-58 Installing the monitoring signal cable in the scenario of 2 RFCs+2 TMC11Hs (2)
Step 3 Attach labels to the installed cables. For details, see Attaching an L-Shaped Label.
Step 4 Run each cable that leave the cabinet in a PVC corrugated pipe, and then tie the pipe to the cable
hole in the cabinet.
----End
12.6 Installing the RF Jumper
The RF jumper connects the RFU to the antenna system for signal exchange between the NodeB
and the antenna system.
Prerequisite
The tools and materials, such as a cable cutter, PVC insulating tape, and a wrench or torque
wrench, are ready.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
139
