Procedure
Step 1 Install the monitoring signal cable between the cascaded CMUAs between the RFC and the
extension TMC11H. Connect one end of the cable to the COM_OUT port on the CMUA in the
fan box of the RFC and the other end to the COM_IN port on the CMUA in the fan box of the
extension TMC11H, as shown in Figure 12-57.

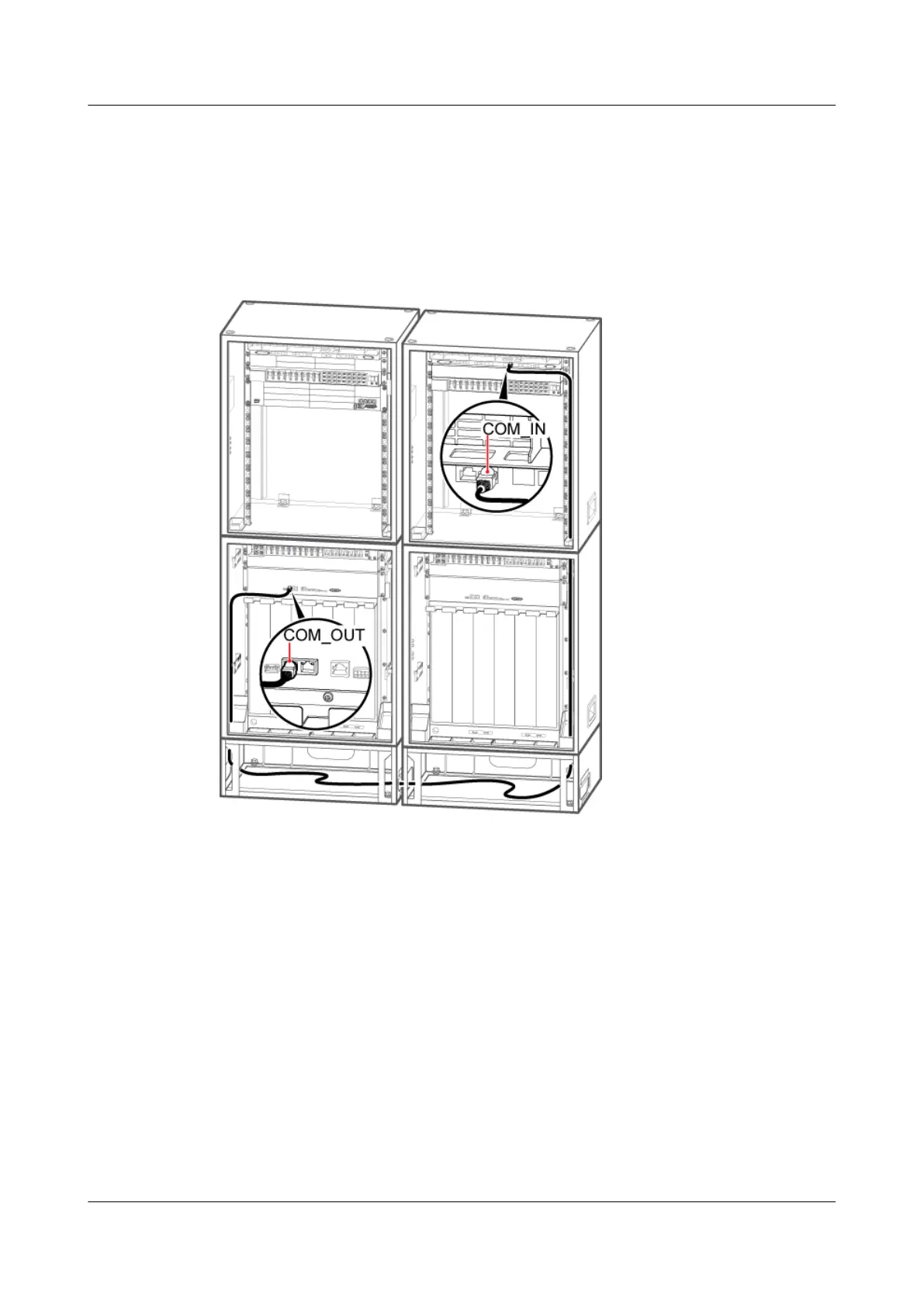

Figure 12-57 Installing the monitoring signal cable in the scenario of 2 RFCs+2 TMC11Hs (1)
Step 2 Install the monitoring signal cable between the cascaded CMUAs between the extension
TMC11H and the extension RFC. Connect one end of the cable to the COM_OUT port on the
CMUA in the fan box of the extension TMC11H and the other end to the COM_IN port on the
CMUA in the fan box of the extension RFC, as shown in Figure 12-58.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
138
