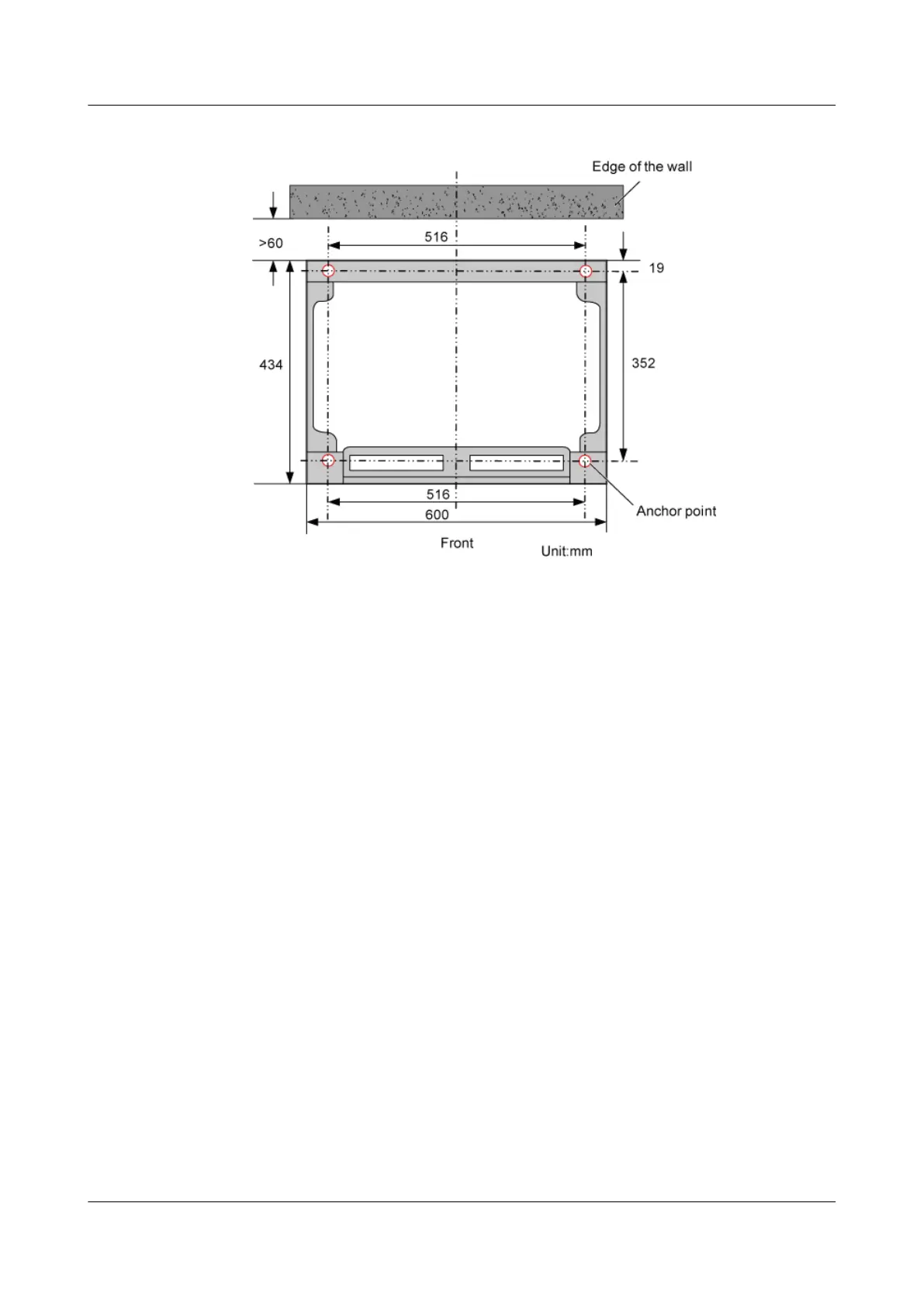

Figure 8-1 Installation holes of the base
3. After marking all the holes, use the measuring tape to check whether the distances between
the holes are accurate.
Step 3 Drill holes at the anchor points, and then install the expansion bolt assemblies, as shown in
Figure 8-2.
