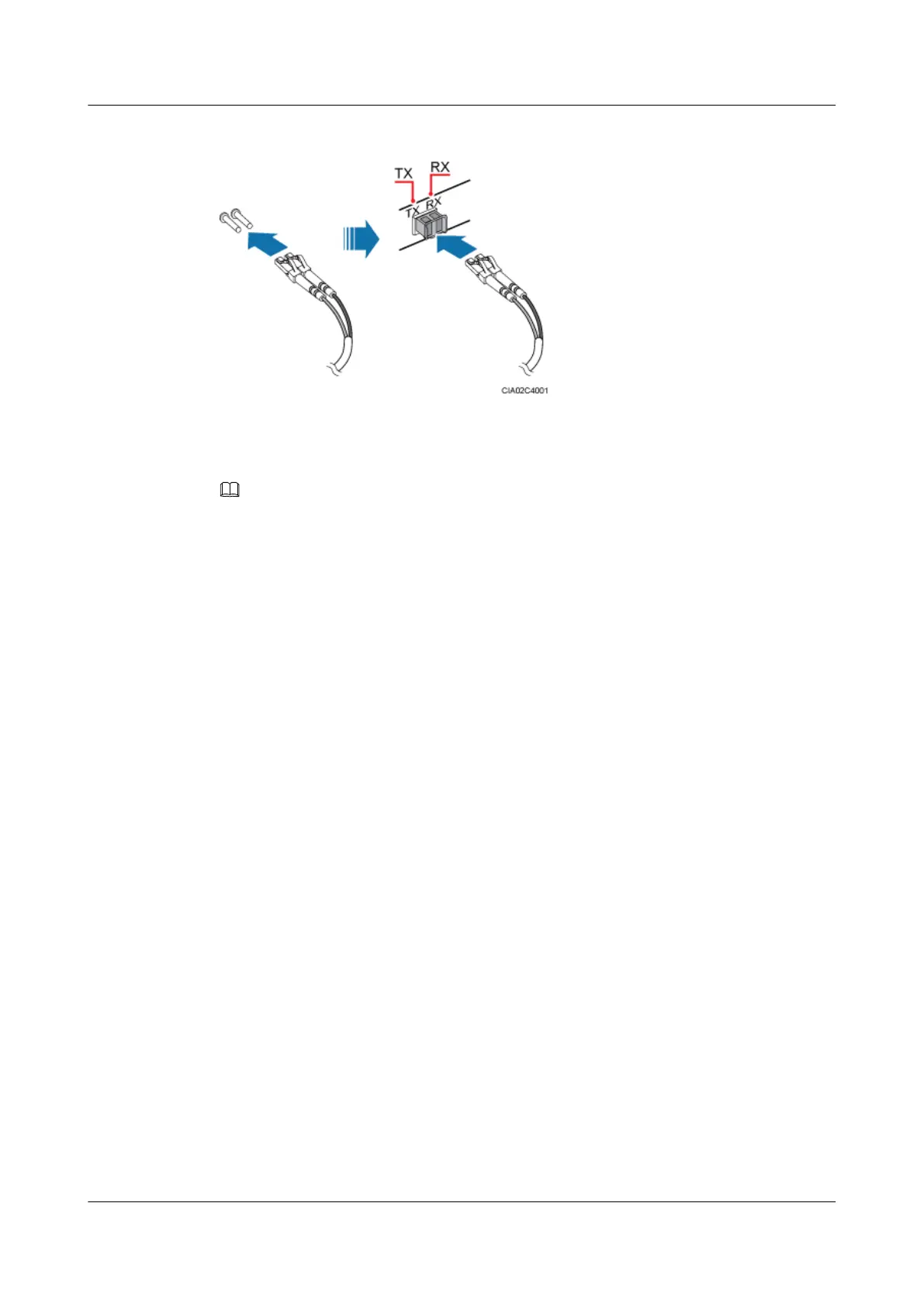

Figure 11-41 Installing a CPRI optical fiber
Step 3 Route the CPRI optical fiber out of the cabinet from the cable outlet on the left or right top. For
details about how to route the cable according to the instructions in 11.1 Cabling
Requirements, as shown in Figure 11-42
NOTE
CPRI fiber optic cables are routed out of the cabinet through the nearer (left or right) cable outlet. One cable
outlet allows a maximum of 12 CPRI fiber optic cables. Therefore, the remaining cables besides the 12 ones
must be routed through the other cable outlet.
BTS3900L (Ver.C)
Installation Guide 11 Installing the Cables
