Huawei BTS3900L - Small Configuration Scenario I: 2 X80 A in Upper and Lower Shelves

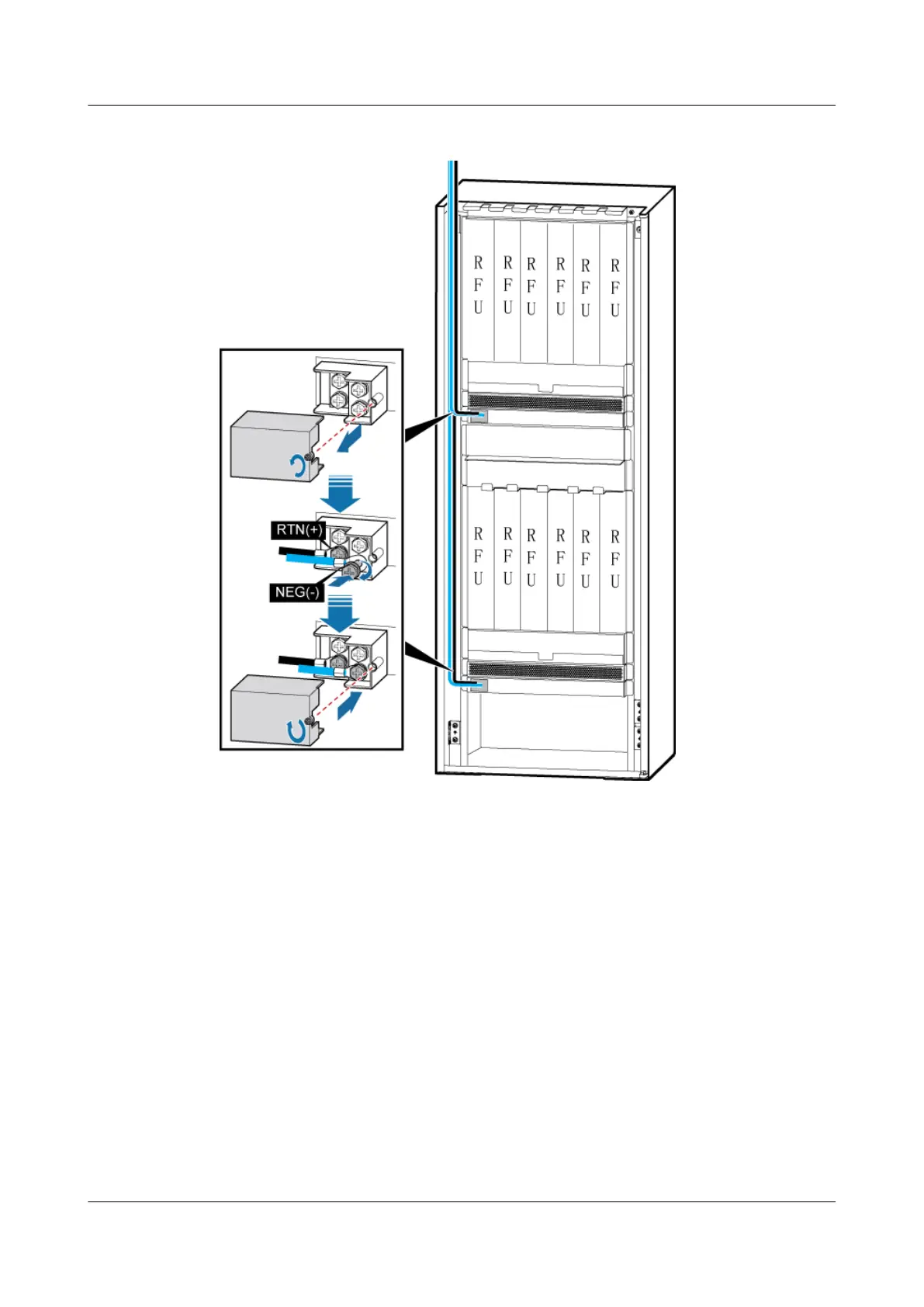

Figure 11-12 Installing the input power cable
Step 7 Route the cables by referring to 11.1 Cabling Requirements and 11.2 Cable Routes.
Step 8 Label the cables by referring to Attaching a Cable-Tying Label.
----End
11.3.2 Small Configuration Scenario I: 2x80A in Upper and Lower
Shelves
In this scenario, two 80A input power cables are used for upper and lower shelves.
Context
Its typical scenarios include:
l 3 large-power modules + 3 large-power modules + 1 or 2 BBUs, and RFUs in upper and
lower shelves.
BTS3900L (Ver.C)
Installation Guide
11 Installing the Cables
