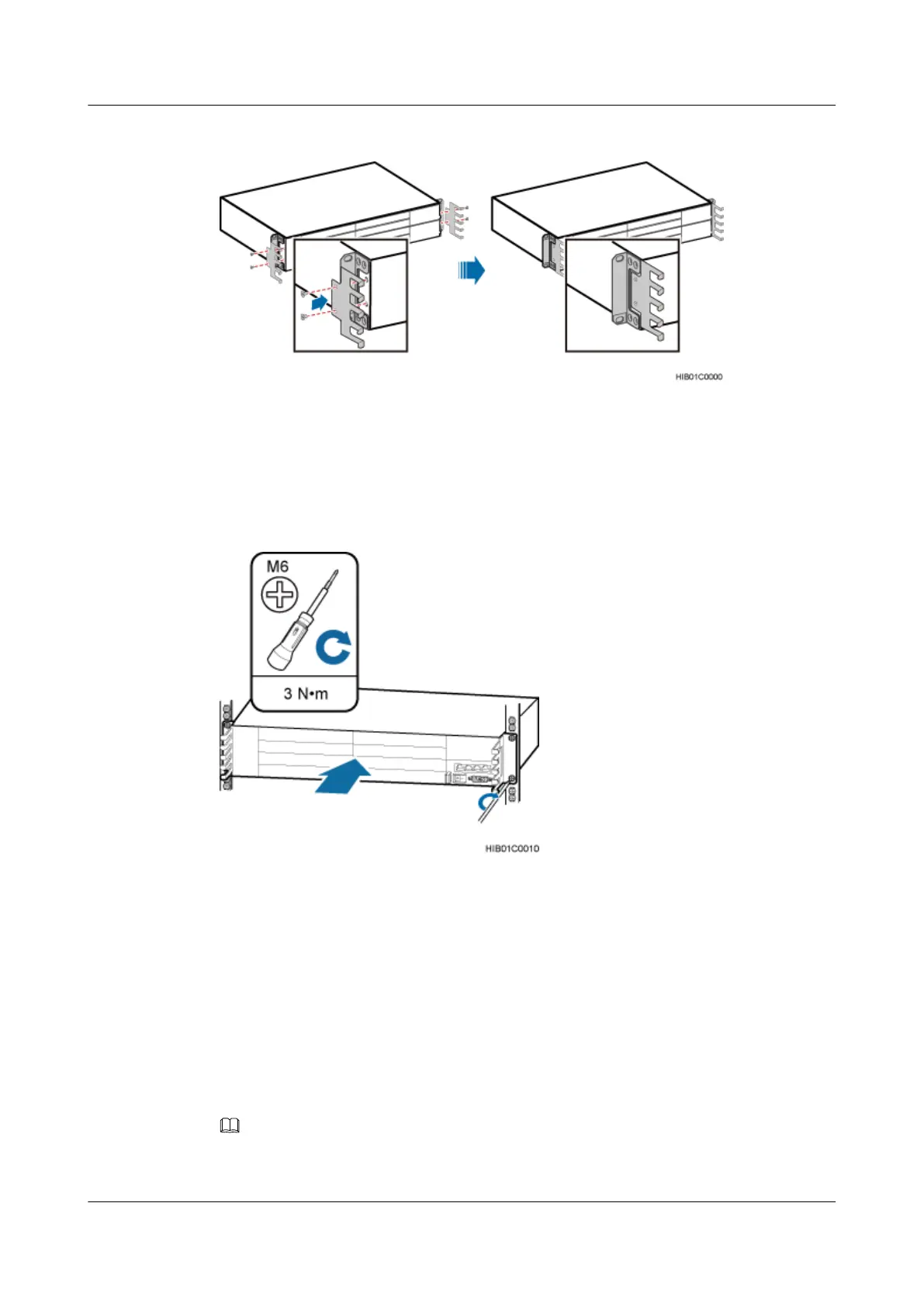

Figure 10-15 Installing cable holders on the BBU
Step 2 Slide the BBU along the guide rails into the cabinet, and then tighten four M6x16 screws on the
panel to 3 N·m (26.55 lbf·in.), as shown in Figure 10-16.
Figure 10-16 Installing the BBU case
----End
10.5 Installing the BBU Components
This section describes how to install the boards into the BBU and SLPU.
Context
NOTE
This chapter only describes the procedure for installing components in the BBU. For details about the slots
where the BBU components are installed, see the BBU configuration information.
BTS3900L (Ver.C)
Installation Guide
10 (Optional) Installing the Modules
Issue 07 (2013-11-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
57
