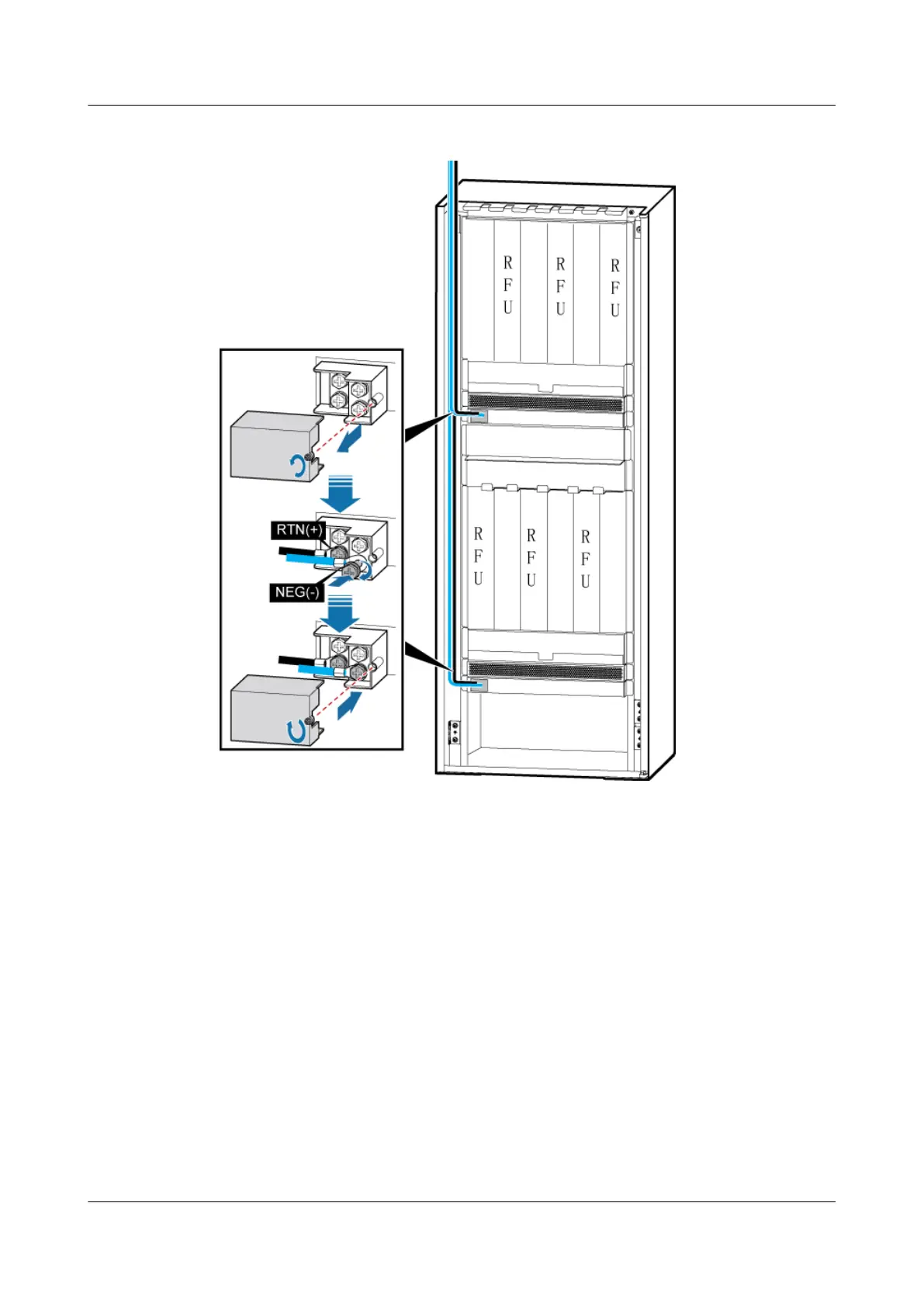

Figure 11-14 Installing the Input Power Cables
Step 7 Route the cables by referring to 11.1 Cabling Requirements and 11.2 Cable Routes.
Step 8 Label the cables by referring to Attaching a Cable-Tying Label.
----End
11.3.3 Small Configuration Scenario II: 2x80A in Lower Shelf in
Parallel
In this scenario, two 80A input power cables are connected to DCDU in the lower shelf and an
BBU is powered by the DCDU in the lower shelf via 1.3m power cable.
Context
The typical scenario includes:
l 6 large-power modules + 1 BBU, and RFUs in lower shelf.
BTS3900L (Ver.C)
Installation Guide
11 Installing the Cables
Issue 07 (2013-11-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
76
