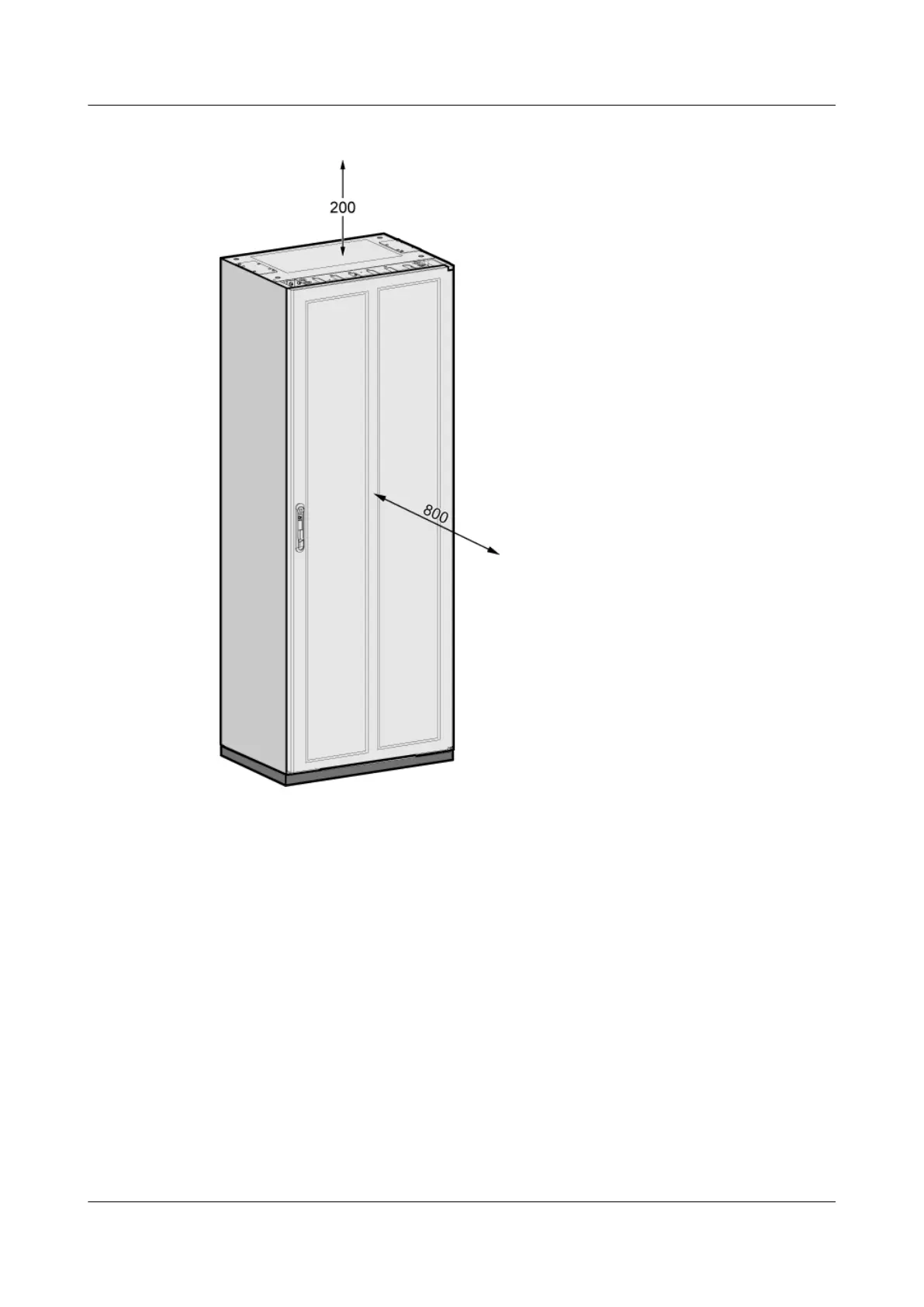

Figure 3-6 Cabinet installation clearance requirements
Cabinet Layout Requirements
The layout principles of the BTS3900L cabinets are as follows:
l The cabinets are as close to the feeder window as possible so that the feeder is used less.
l The cabinets are installed in a row in the same equipment room for easy cabling.
l No space is reserved for the same cabinets if they are installed next to each other.
Figure 3-7 shows the typical cabinet layout (unit: mm).
