Step 2 Place the DCDU against the wall, and use a marker to mark the holes for installing screws
securing mounting ears, as shown in the following figure.

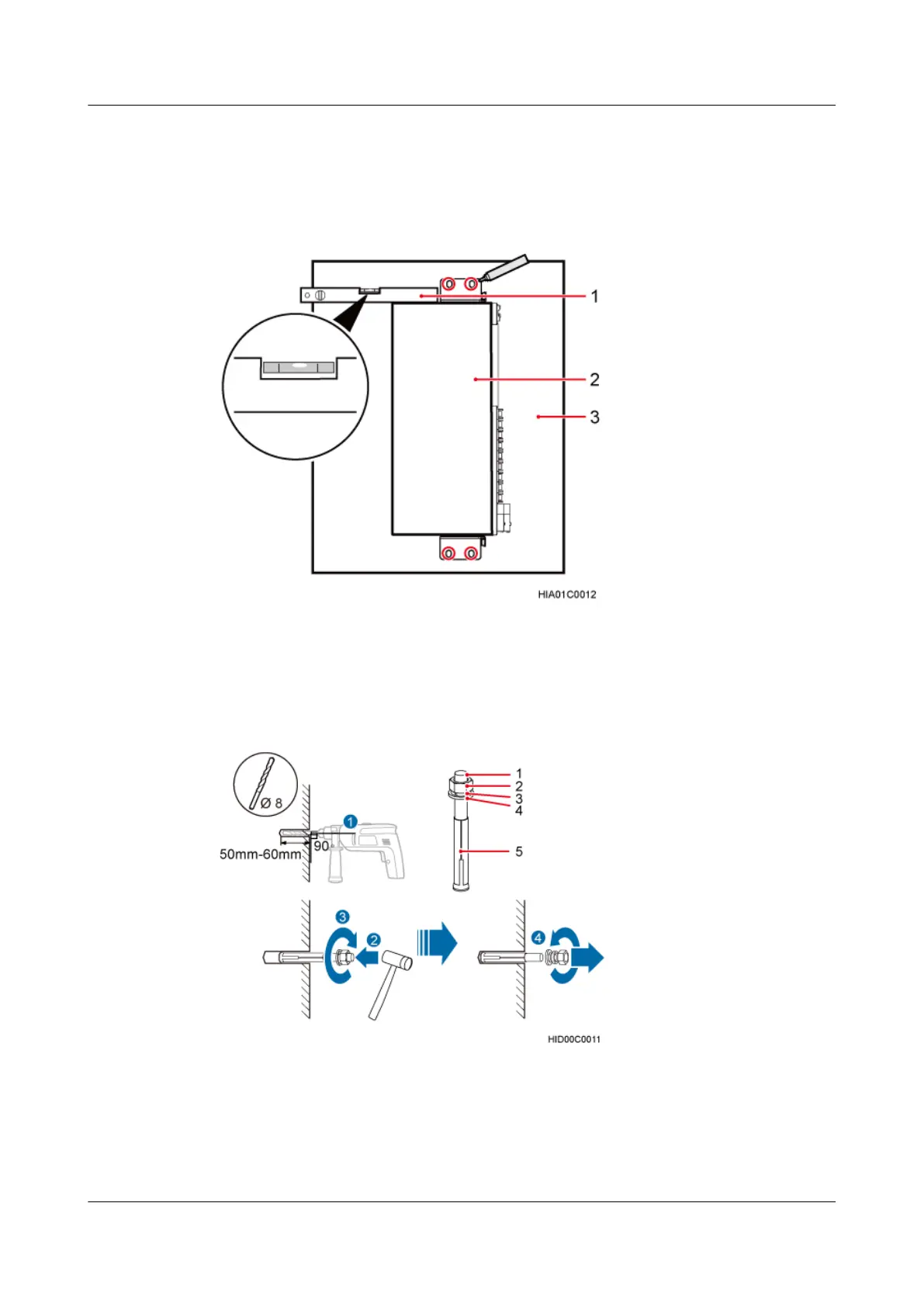

Figure 10-10 Marking the positions for installing screws securing mounting ears of the DCDU
Step 3 Drill holes at the anchor points and install expansion bolt assemblies in the holes, as shown in
the following figure.
Figure 10-11 Drilling a hole and inserting an expansion bolt assembly
(1) M6x60 bolts
(2) Nut (3) Spring washer (4) Flat washer (5) Expansion tube
1. Use a hammer drill with a Φ8 bit to drill holes vertically at the marked anchor points. Ensure
that the depth of each hole ranges from 50 mm (1.97 in.) to 60 mm (2.36 in.).
