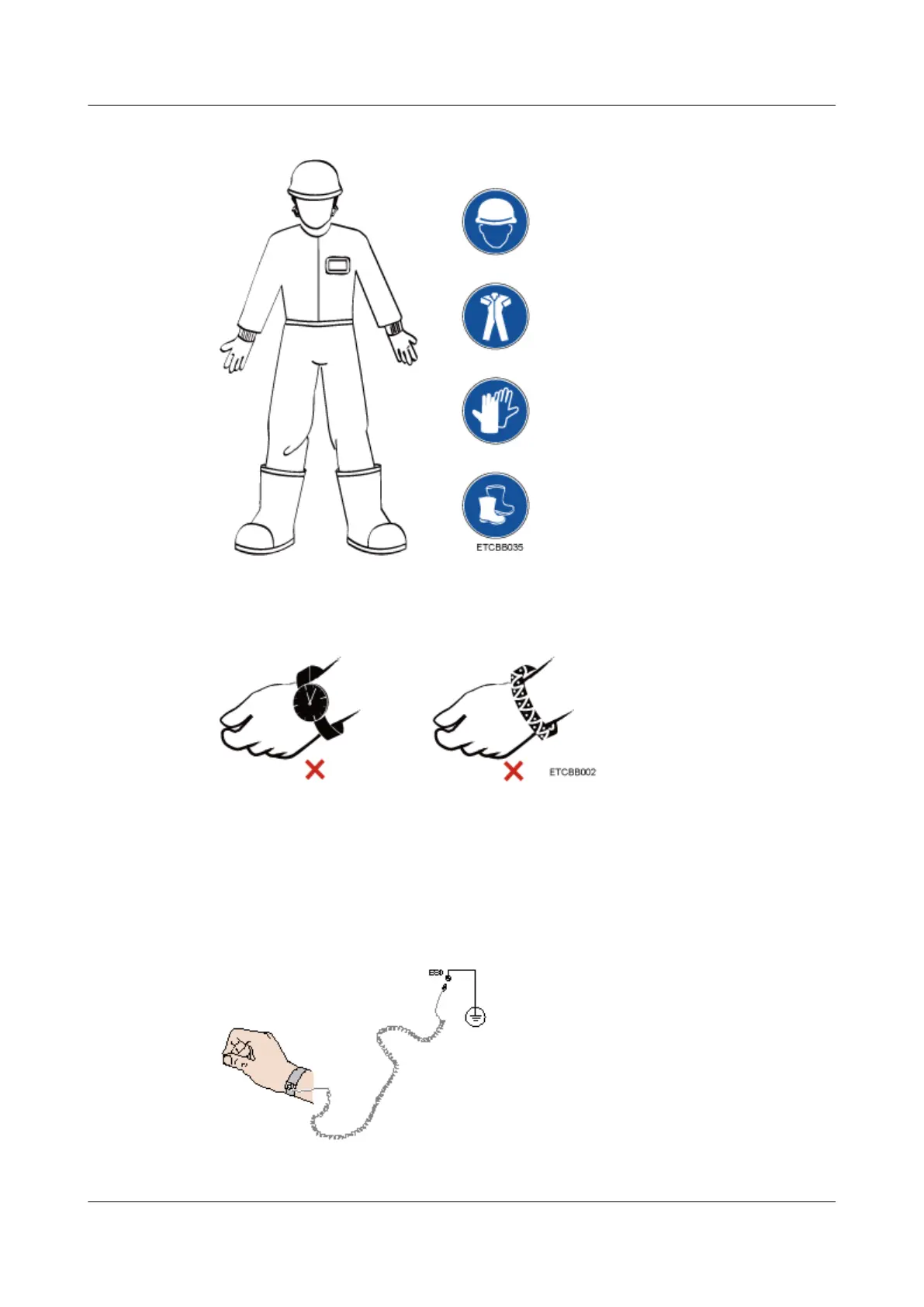

Figure 1-1 Protective clothing
l Remove any conductive objects (such as watches and jewelry), as shown in Figure 1-2.
Figure 1-2 Conductive objects to be removed
Figure 1-3 shows how to wear an ESD wrist strap.
1. Secure the wrist strap around your wrist.
2. Fasten the strap buckle and ensure that the ESD wrist strap is snug against the skin.
3. Insert the attached ground terminal into the jack on the grounded rack or chassis.
Figure 1-3 Wearing a wrist strap
E9000 Server
User Guide
1 Safety Instructions
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 2
