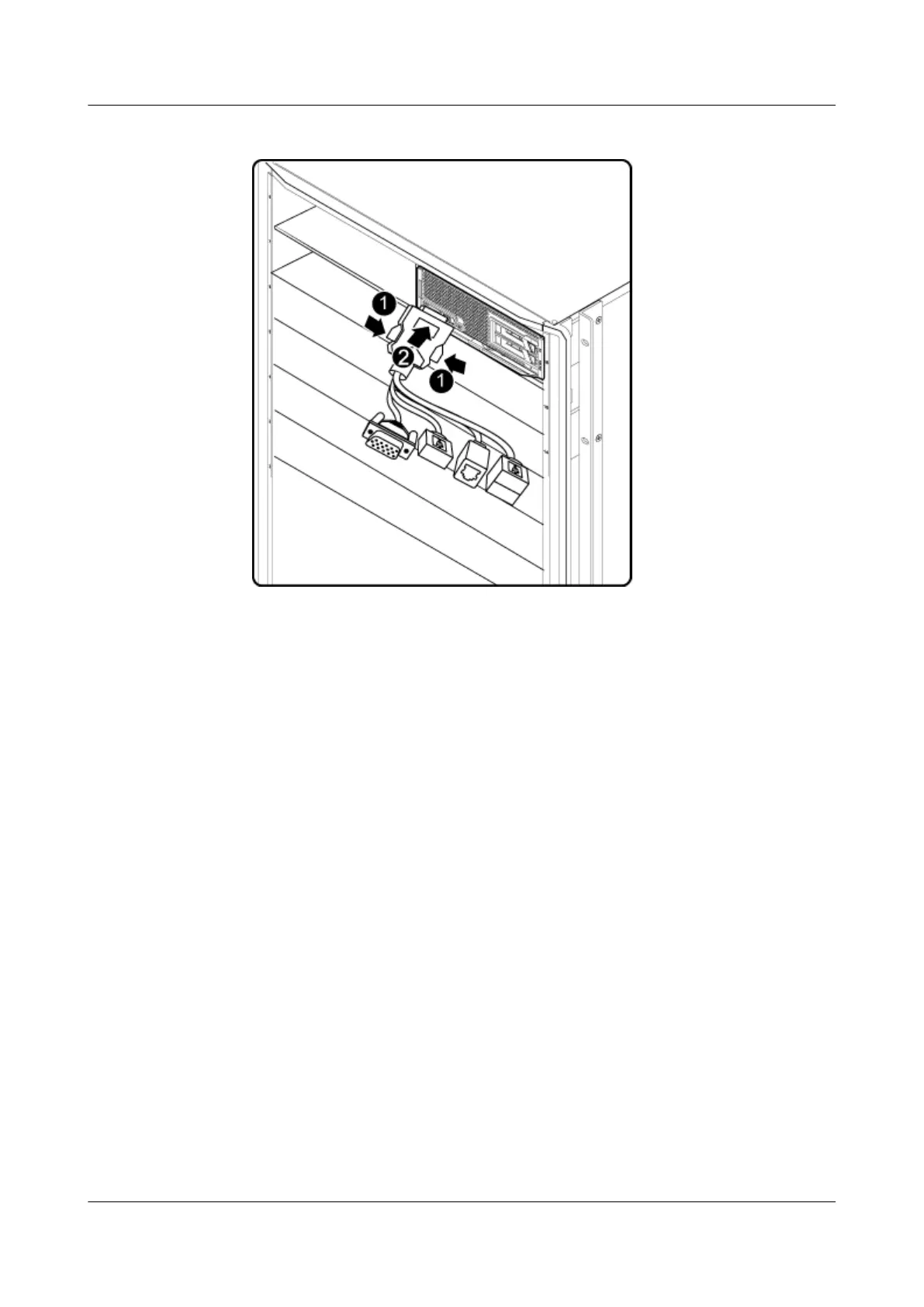

Figure 3-53 Connecting the multi-port cable (CH121 as an example)
2. Horizontally insert the multi-port cable into the UCP on the compute node. See (2) in
Figure 3-53.
Step 2 Connect optical cables.
1. Determine the type and installation position of the optical module based on site
requirements.
2. Insert the optical module into the optical port until the optical module clicks into place.
E9000 Server
User Guide
3 Installing the E9000
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 83
