2.2.1 (Optional) Concrete Platform Scenario
Build concrete platforms on the selected installation site.

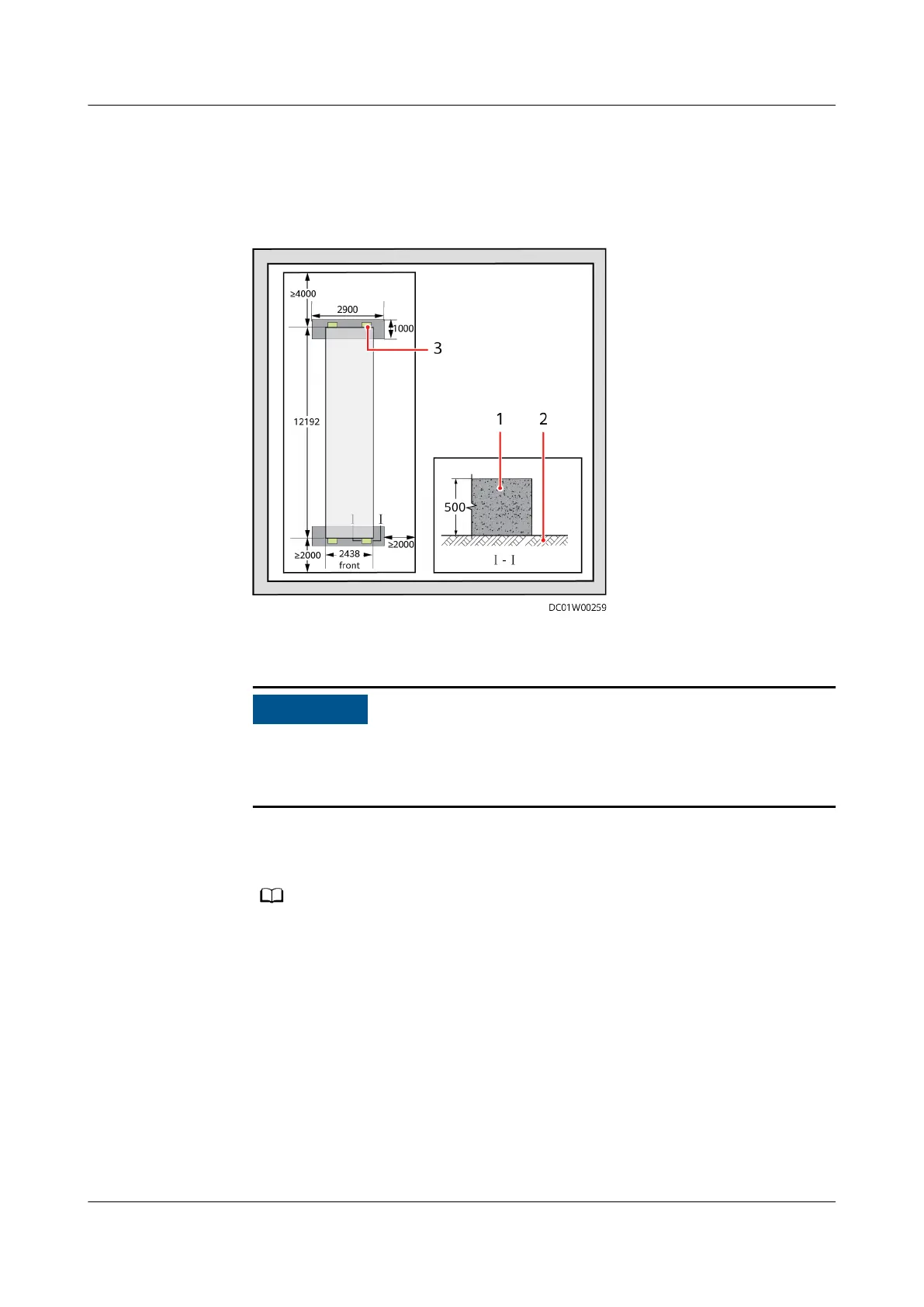

Figure 2-1 Concrete platform (unit: mm)
(1) Concrete platform (2) Ground (3) Angle steel
NO TICE
The minimum cross-sectional area of a concrete platform must be 2900 mm x
1000 mm. The concrete platforms must be 500 mm higher than the ground to
ensure
ecient drainage.
Load-bearing capacity of concrete platforms: meets the requirements of the
maximum weight of a pre-fab. module 25,000 kg and NEBS Zone 3
antiseismic requirements.
NO TE
Recommended load-bearing capacity calculation: Maximum weight of a pre-fab.
module 25,000 kg x 3 (NEBS Zone 3 requires amplitude acceleration 3g) x 1.5 (0.5
times the engineering construction error and margin)/Eective support contact area
(The eective contact area in the concrete platform installation scenario is 4 x 272
cm
2
.)
The horizontal error between concrete platforms must be less than 5 mm.
Concrete pads or passages with the load-bearing capacity meeting local civil
work standards can be built on the site outside the concrete platforms for
access and servicing.
2.2.2 Base Installation Scenario
Build concrete platforms on the selected installation site.
FusionDC1000A Prefabricated All-in-One Data
Center
Installation Guide (IT Scenario) 2 Site Requirements
Issue 01 (2021-04-20) Copyright © Huawei Technologies Co., Ltd. 16
