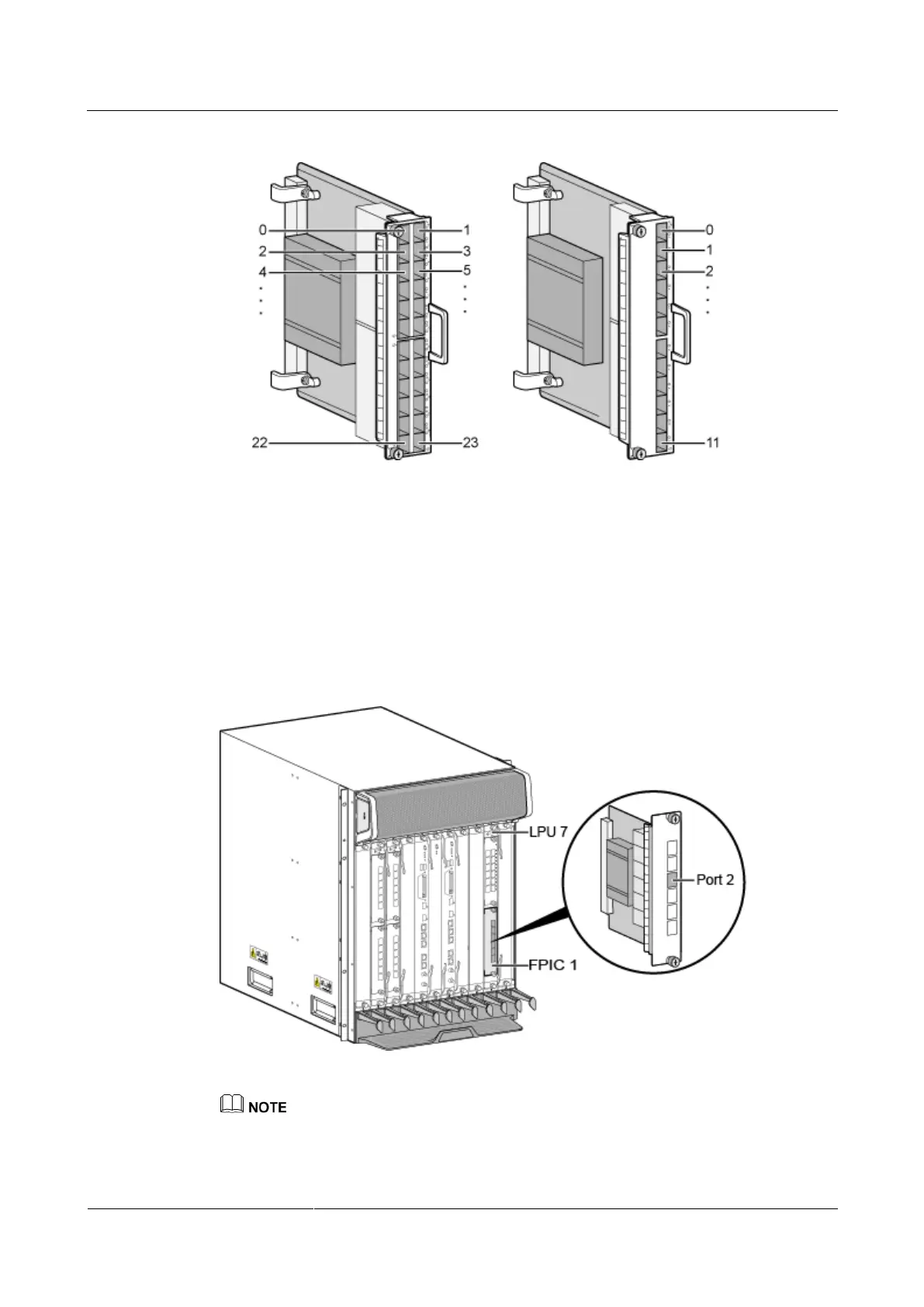

Figure 1-108 Interface numbers
Example for Naming Interfaces
Interfaces are named in the format of LPU slot/FPIC slot/interface number.
Use the NE40E-X8 as an example. As shown in Figure 1-109, the LPU slot number is 7, the
FPIC slot number is 1, and the interface number is 2. Therefore, the interface is named 7/1/2.
Figure 1-109 Interface numbers
If the LPU is a fixed interface board, the FPIC slot number is considered 0.
If the LPU slot number is special, use the actual board information to name the interface.
