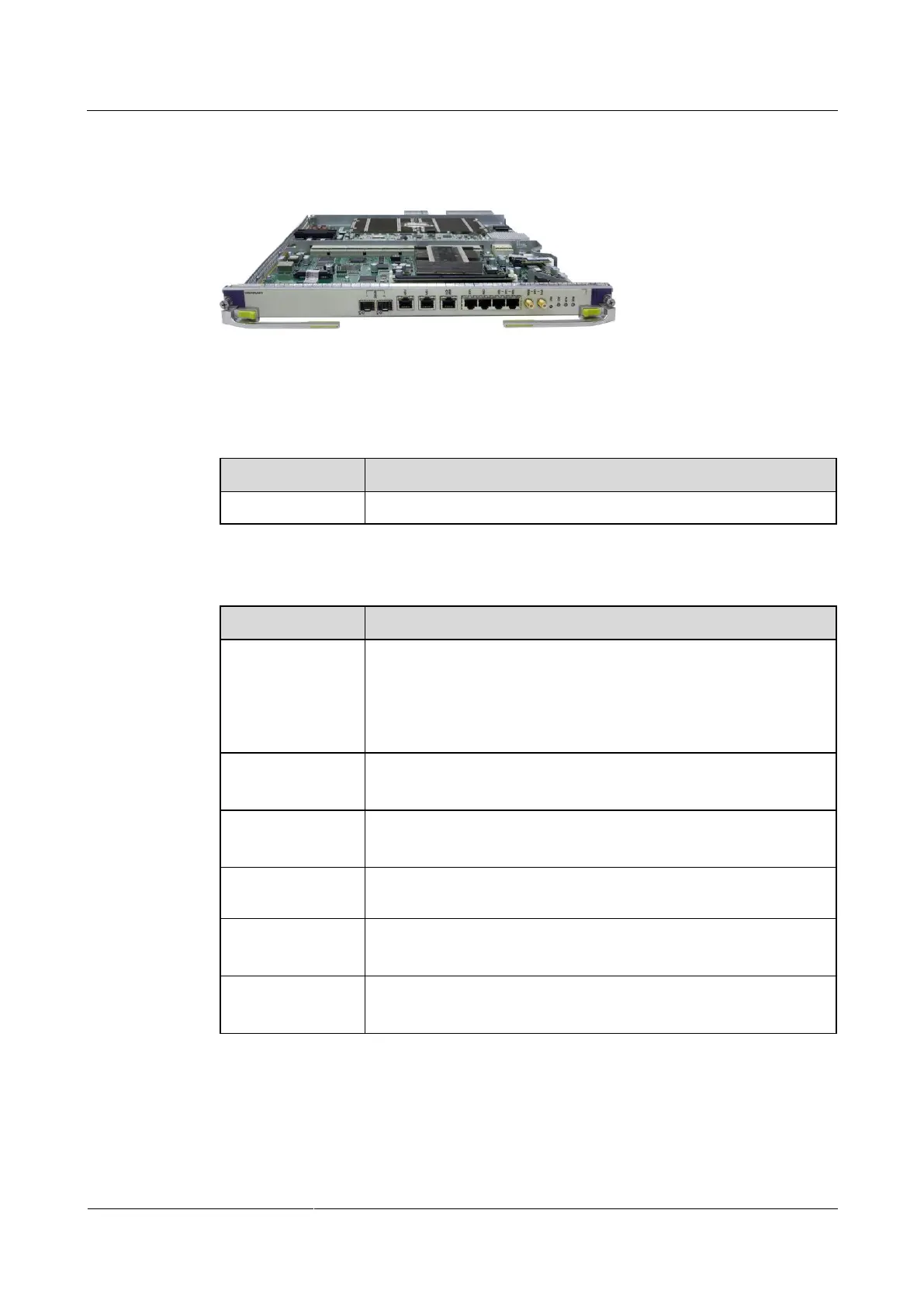

Appearance
Panel
Table 1-176 Buttons
When this button is pressed, the board is reset.
Table 1-177 Indicators
Before the board is powered on and registers, this indicator status
changes in the following sequence: off > blinks quickly > steady
on > blinks quickly > steady on > blinks slowly (0.5 Hz).
After the board is powered on and registers, if this indicator blinks at
0.5 Hz, the system is working properly.
If this indicator is steady on, an alarm is generated.
If this indicator is off, no alarm is generated.
If this indicator is steady on, the board functions as the master one.
If this indicator is off, the board functions as the slave one.
If this indicator is steady on, the link is Up.
If this indicator is off, the link is Down.
If this indicator is blinking, data is being transmitted and received.
If this indicator is off, no data is being transmitted or received.
