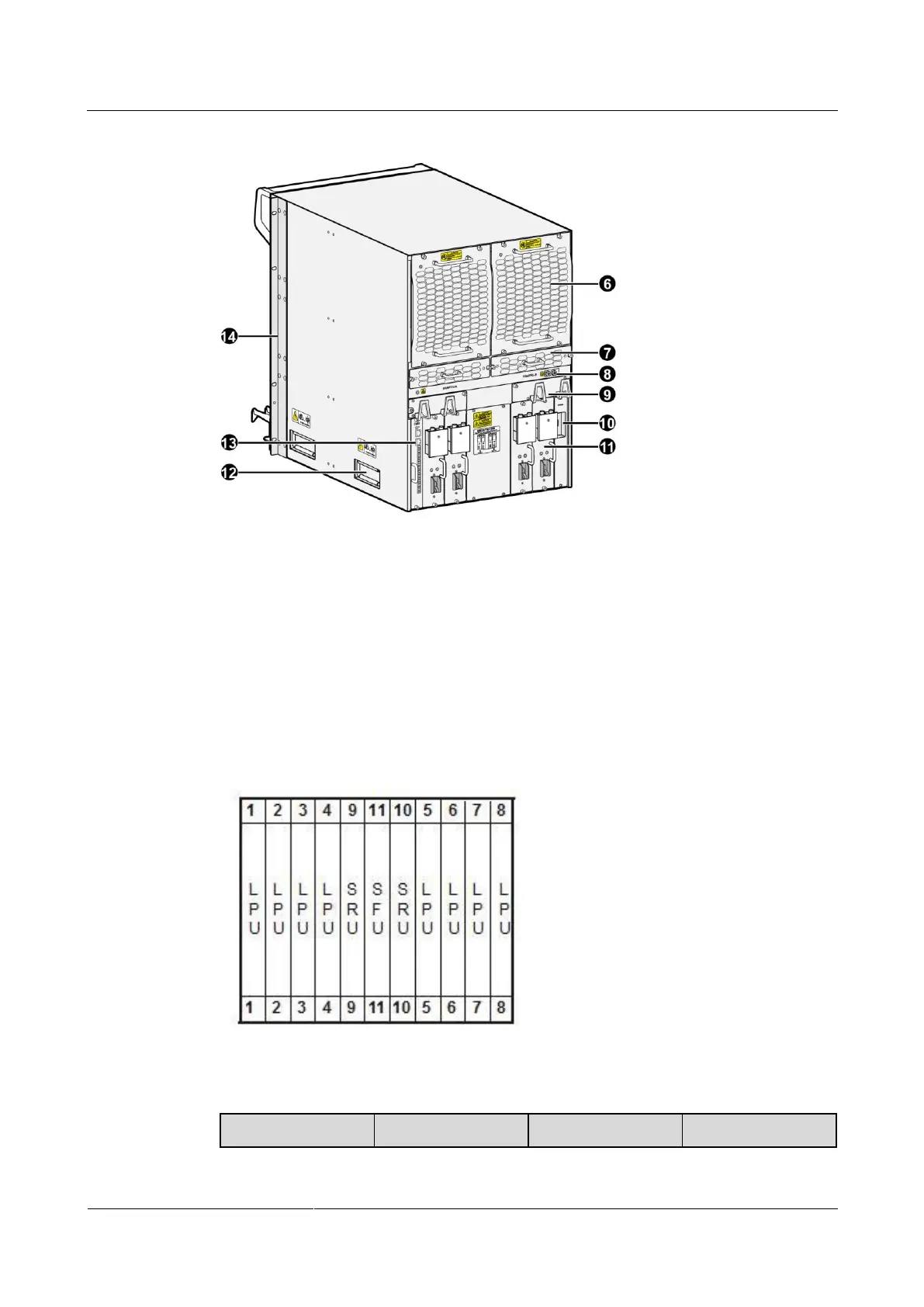

Figure 1-18 Components (rear view)
6. Fan
7. Filler Panel
8. Ground
terminal
9. Rear cable trough
10. Power management
interface
11. DC power
module
12. Handle
13. Central monitoring
module (Optional)
14. Mounting ear
Slot Layout
Figure 1-19 Slot layout
Table 1-7 Description of slot layout
Slot Name
Slot Quantity
Slot ID
Remarks
