Huawei SUN2000-3KTL-M1 User Manual

Step 7 (Optional) Observe the LED indicator on the Smart Dongle to check its running
status.
● WLAN-FE Smart Dongle

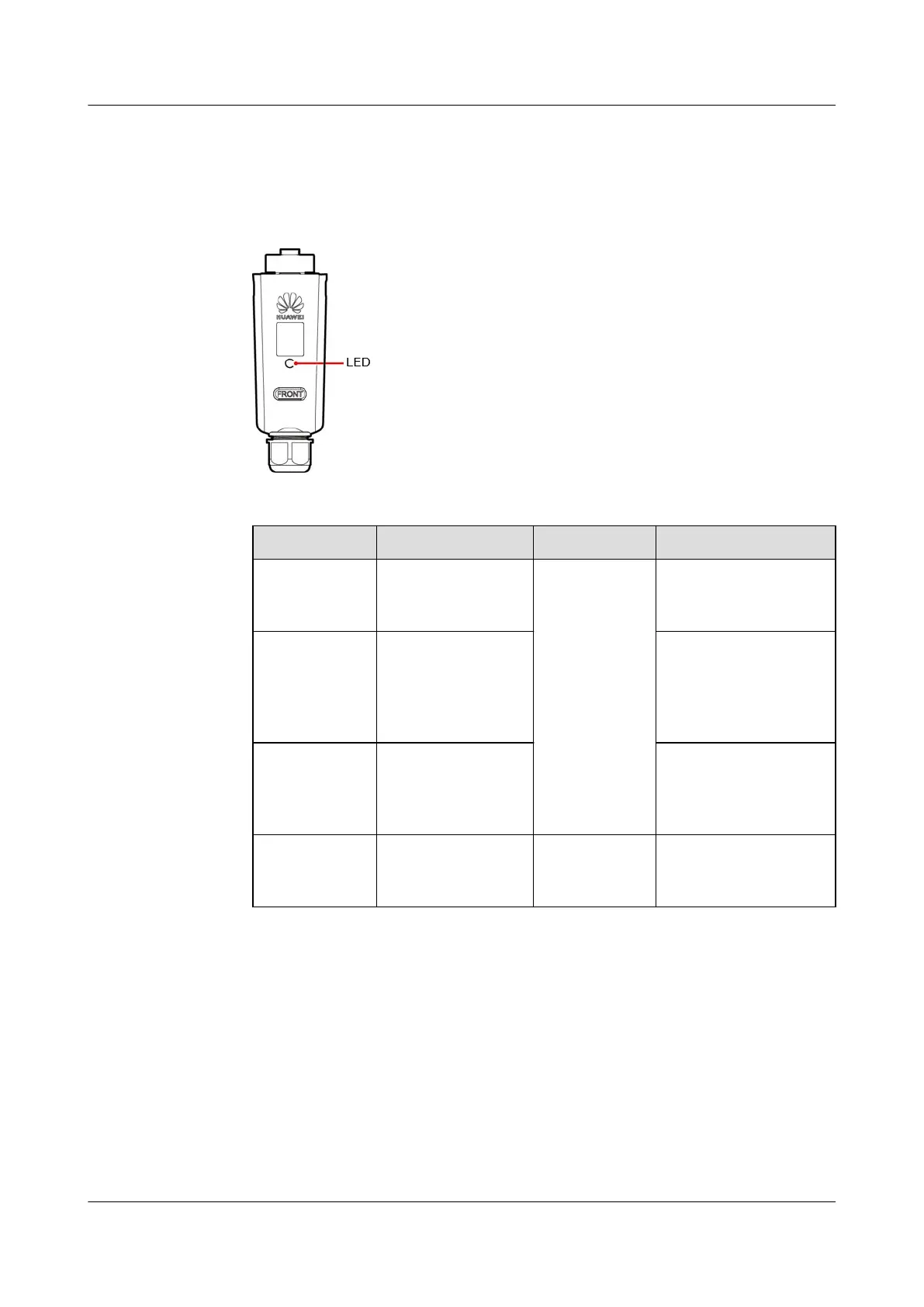

Figure 6-2 WLAN-FE Smart Dongle
Table 6-3 Indicator description
Indicators Status Remarks Description
- O Normal The Smart Dongle is
not secured or not
powered on.
Yellow
(blinking
green and red
simultaneousl
y)
Steady on The Smart Dongle is
secured and powered
on.
Red Blinking at short
intervals (on for
0.2s and then o
for 0.2s)
The parameters for
connecting to the
router are not set.
Red Steady on Abnormal The Smart Dongle is
faulty. Replace the
Smart Dongle.
SUN2000-(3KTL-10KTL)-M1
User Manual 6 Commissioning
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 63

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
