NO TICE
Prepare the EPO switch and cable before installation. The recommended cable
size is 0.3 mm
2
.
Equip the EPO switch with a protective cover to prevent misoperations, and
protect the cable with a protective tube.
Triggering EPO will shut down the rectier, inverter, charger, and static bypass,
but will not disconnect the UPS mains input. To power o the UPS completely,
turn o the upstream input switch when you trigger EPO.
Set remote EPO for the UPS separately. The UPS cannot share switch contacts
with other devices.
Connect the EPO switch to the dry contact on the UPS using a cable. The EPO port
is normally open (NO) by default. When you turn on the EPO switch, EPO is
triggered.

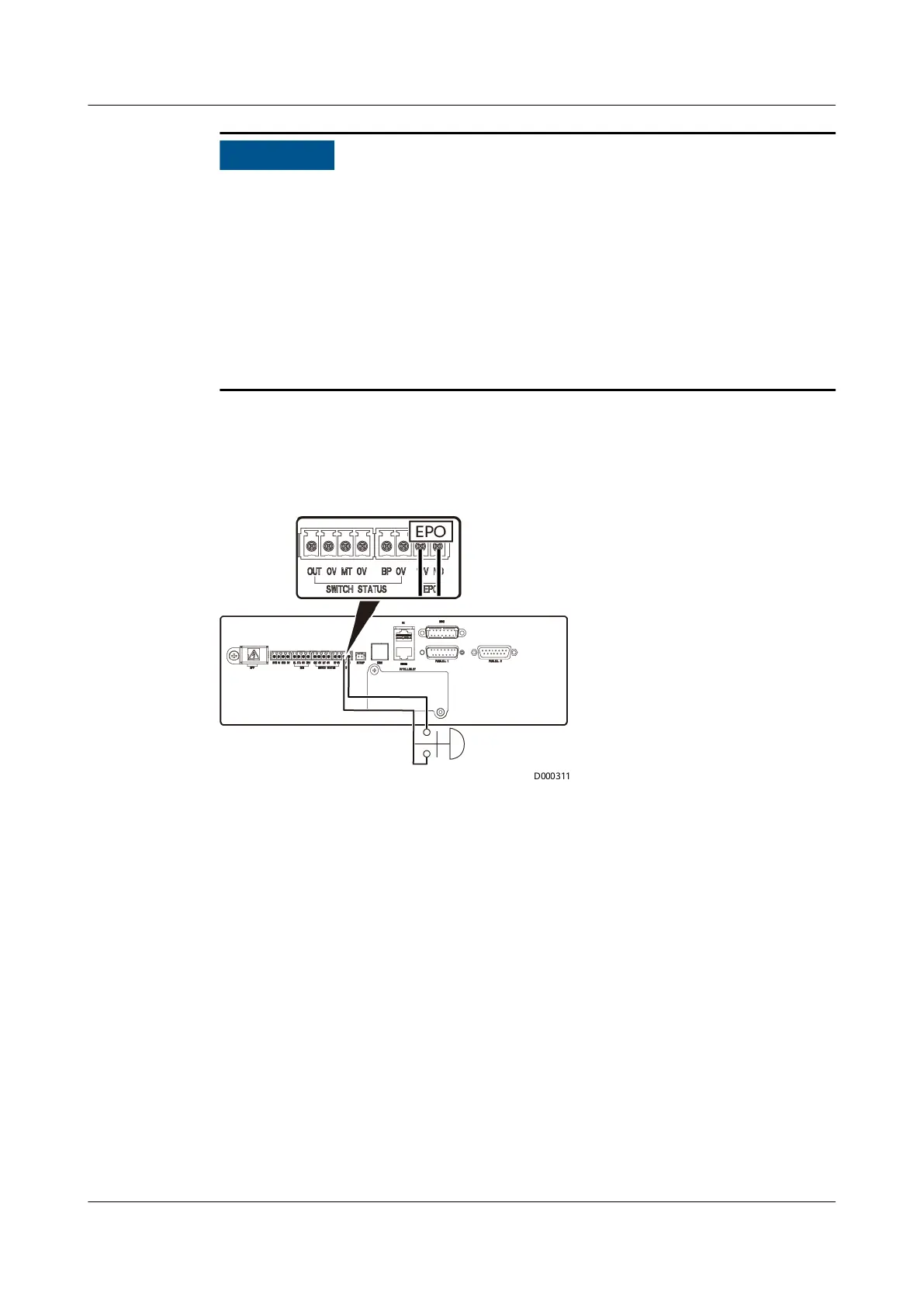

Figure 4-38 Cable connection for an NO EPO port
4.2.2 Single UPS Installation (60 kVA/80 kVA/120 kVA)
4.2.2.1 Installing the Chassis
Tower-mounted Installation (Non-secured Installation)
Step 1 Lower the four leveling feet at the bottom of the cabinet using a wrench until all
the four castors at the bottom hang in the air and the leveling feet bear the whole
cabinet weight.
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 92
