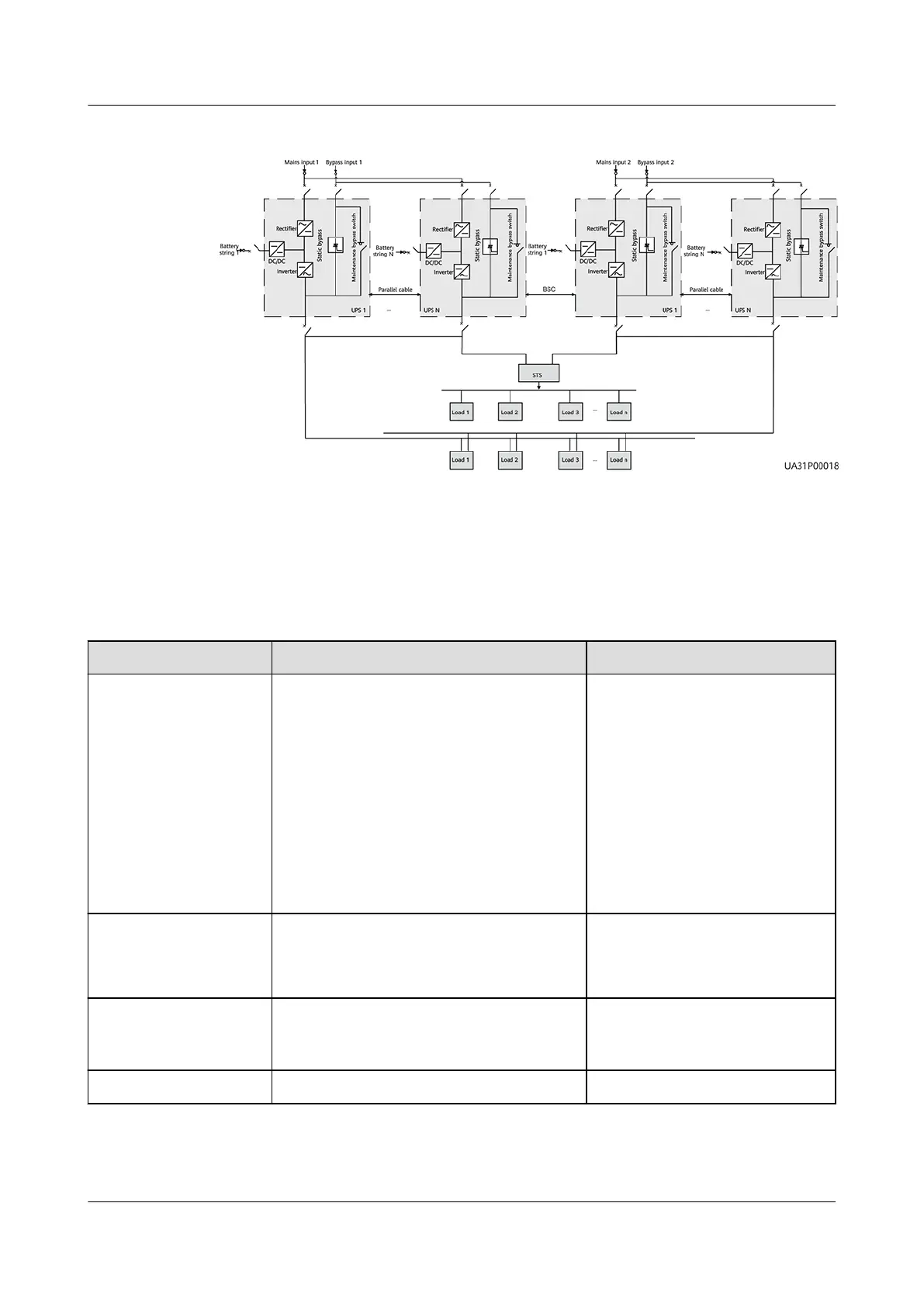

Figure 2-26 Conceptual diagram of a dual-bus system
2.7 Optional Components
The UPS provides a variety of optional components to address various customer
requirements.
Table 2-7 Optional components
Optional Component
Model Function
BCB-BOX ● PDU8000-0250DCV8-BXA006
● PDU8000-0400DCV8-BXA007
● PDC-0630DC0384BXA
● PDU8000-0063DCV8-BXA002
● PDU8000-0125DCV8-BXA001
● PDU8000-0250DCV8-BXA001
● PDU8000-0400DCV8-BXA001
● PDU8000-0630DCV8-BXA001
● PDU8000-0800DCV8-BXA001
● Controls the connection
between battery strings and
the UPS.
● Supports overload
protection, short-circuit
protection, and remote trip
management.
Battery bus bar box
(BBB box)
● PDU8000-0630DCV8-BGA001
● PDU8000-1250DCV8-BGA001
● PDU8000-2000DCV8-BGA001
Converges the currents of
multiple battery strings.
Antiseismic kit - Reinforces the cabinet so that
the cabinet can resist intensity
9 earthquakes.
Dry contact card RMS-RELAY01A Provides output dry contacts.
UPS5000-A-(30 kVA-120 kVA)
User Manual 2 Product Overview
