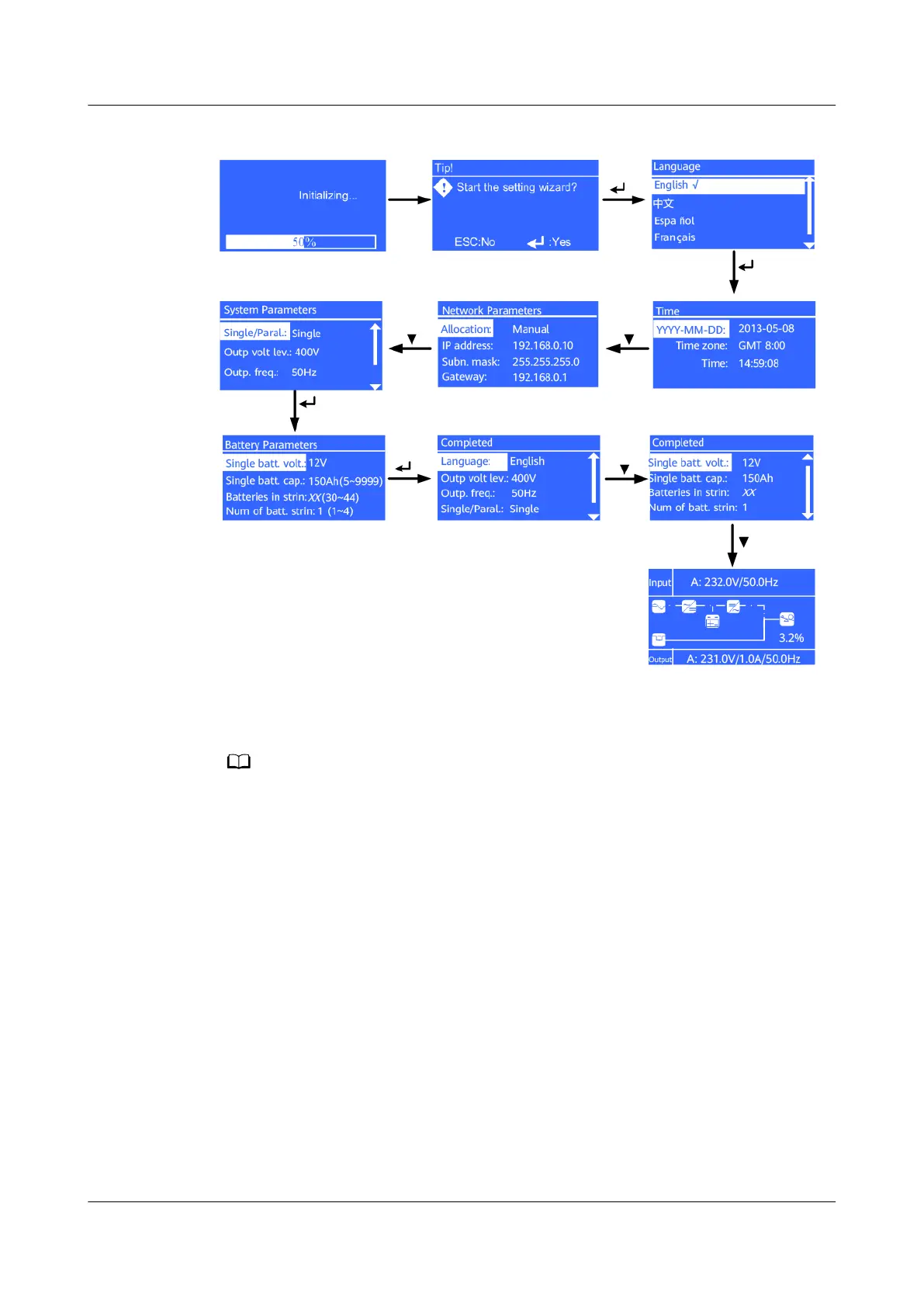

Figure 5-1 Settings wizard
Step 3 After you set parameters on the Settings Wizard screen, the system displays the
Bypass mode and No battery alarms, which do not need to be handled. Other
alarms need to be handled.
● After you set parameters on the Settings Wizard screen, choose Settings > System
Settings on the main menu screen. Check that Requisite modules and Redundant
modules match the actual values.
● If dry contact signals are connected to the system, choose Settings > Dry Contact Set
on the main menu screen. Check that the connected dry contacts have been enabled
and that the disconnected dry contacts have been disabled.
Step 4 View the system running diagram on the LCD to check that the bypass input is
normal and the UPS works in bypass mode.
----End
5.1.3 Powering On Loads
Context
After the inverter starts, the UPS transfers to inverter mode, and the Bypass mode
alarm on the MDU disappears.
UPS5000-A-(30 kVA-120 kVA)
User Manual 5 Single UPS Commissioning
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 123
