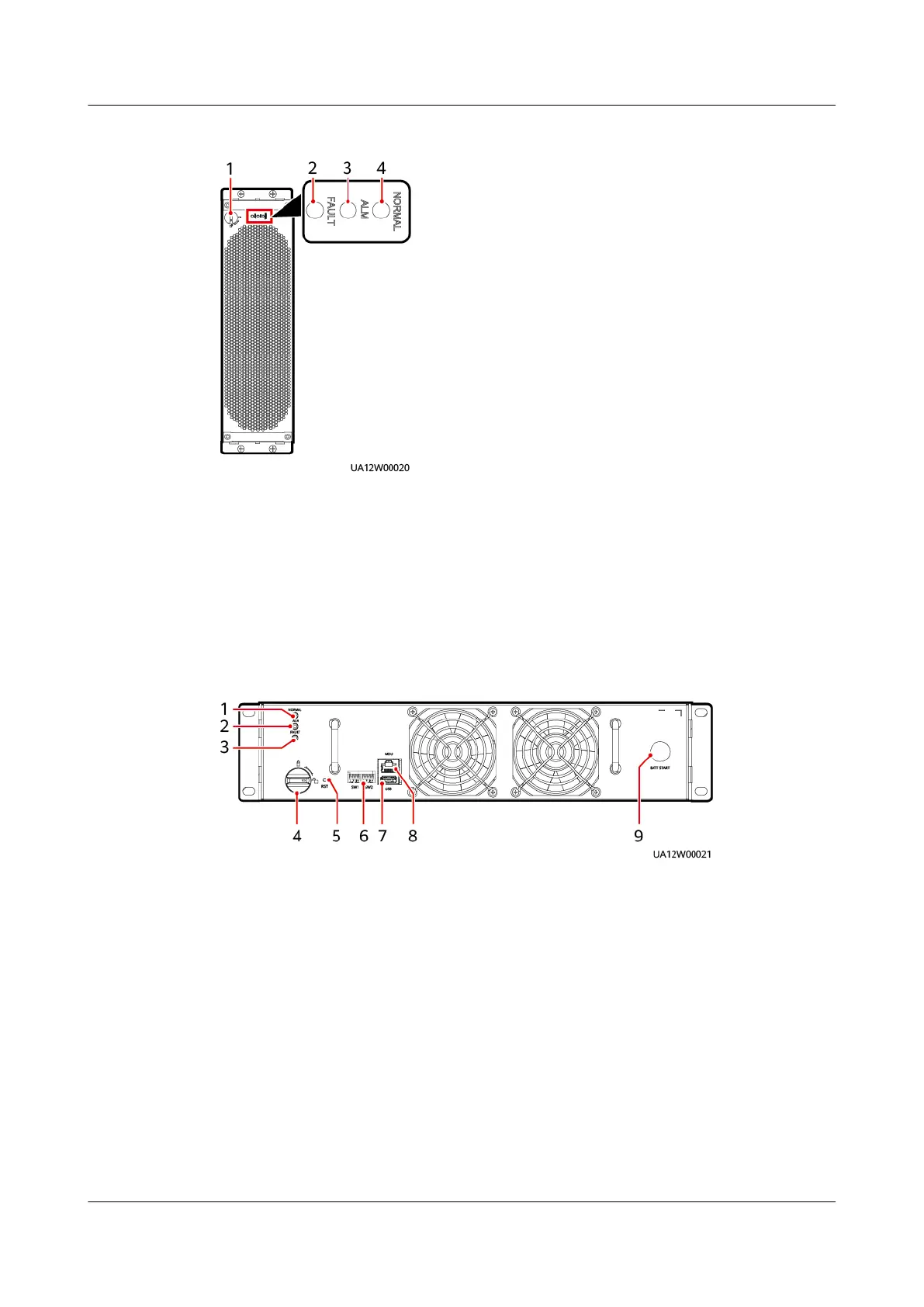

Figure 2-20 Appearance
(1) Ready switch (2) Fault indicator
(3) Alarm indicator (4) Running indicator
2.5.2 Bypass Unit
There are four models of bypass units. Bypass units 1 and 3 have the same
appearance, and bypass units 2 and 4 have the same appearance.
Figure 2-21 Bypass unit 1/3
(1) Running indicator
(2) Alarm indicator (3) Fault indicator
(4) Ready switch (5) MDU reset button (6) DIP switches
(7) USB port (reserved) (8) MDU port (9) Battery cold start button
UPS5000-A-(30 kVA-120 kVA)
User Manual 2 Product Overview
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 39
