Huawei UPS5000-A-H Series User Manual

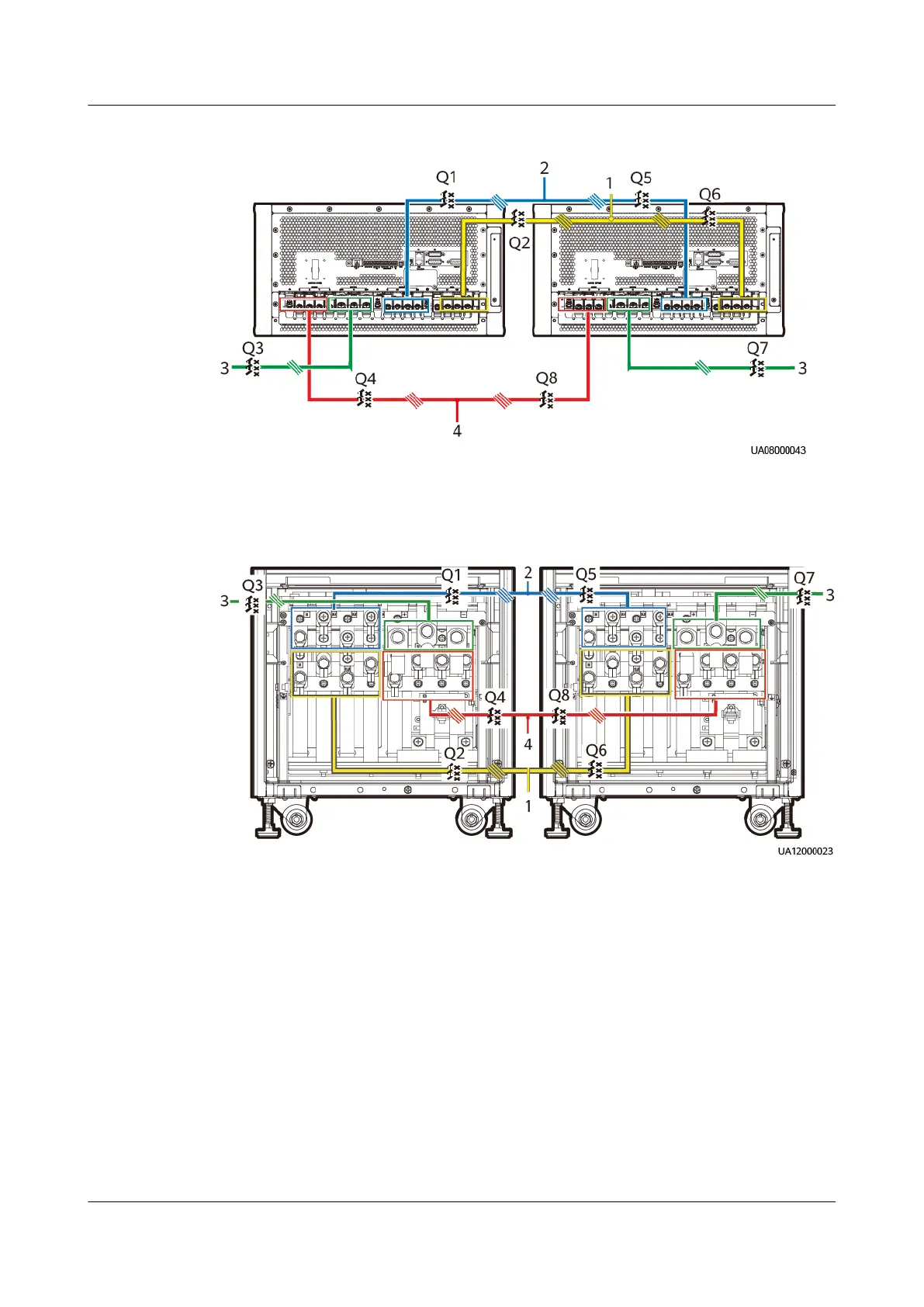

Figure 4-69 Cable connections for a 1+1 parallel system (30 kVA/40 kVA)
(1) Mains input power
cables
(2) Bypass input power
cables
(3) Battery cables (4) Output power
cables
Figure 4-70 Cable connections for a 1+1 parallel system (60 kVA/80 kVA/120 kVA)
(1) Mains input power
cables
(2) Bypass input power
cables
(3) Battery cables (4) Output power
cables
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 114
