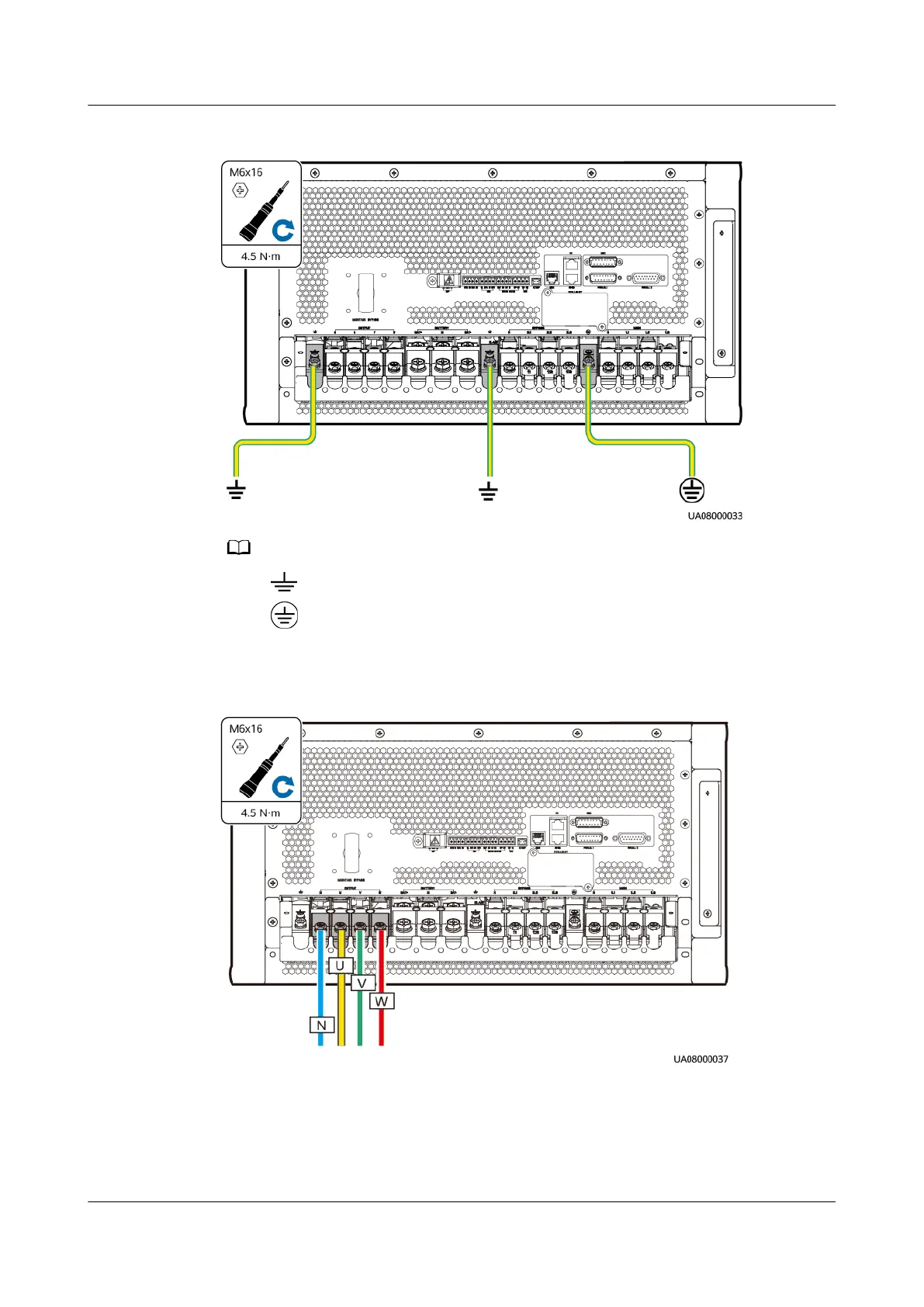

Figure 4-30 Installing ground cables
● : internal equipotential bonding label
● : protective ground label
Step 3 Install UPS output power cables.
Figure 4-31 Connecting output power cables
Step 4 Install AC input power cables.
● One power source
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
