Customize the Chart Instrument View
CUSTOMIZE THE CHART INSTRUMENT VIEW
T
he Chart Instrument View displays a digital compass and XTE (Cross Track Error) graphic on the Chart View. If a compass is not
i
nstalled, the COG (Course Over Ground) provides the data source for the digital compass.
The Chart Instrument View shares the same menu settings as the Chart View. For customization information, see Customize the
Chart View.
NOTE: Digital readouts can be displayed as an overlay, or they can be displayed in data boxes (see Views: Display Digital
Readouts).

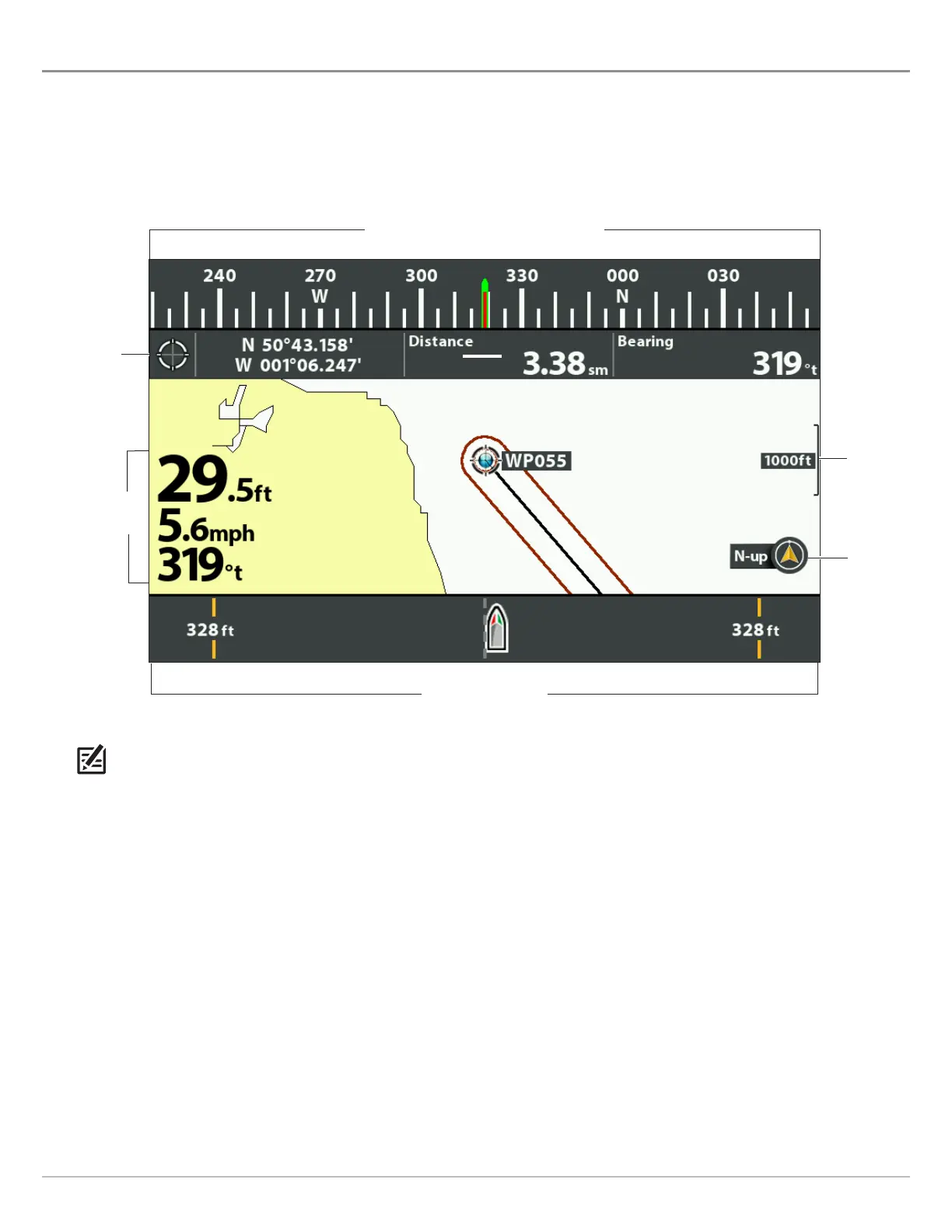

Chart Instrument View
north up
indicator
map scale
c
u
rso
r
d
ig
it
al
re
ad
o
u
t
s
digital
readouts set
to overlay
XTE (cross track error)
digital compass (COG or connected compass)

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
