90
Side Imaging Sonar
DISPLAY A SIDE IMAGING VIEW ON-SCREEN ( HELIX CHIRP SI GPS G2 O
NLY
)
T
here are a variety of views available to display Side Imaging data. You can also customize the view by showing or hiding information
(
see Customize the Side Imaging View), and you can adjust the sonar settings to maximize the information displayed on-screen
(
see Adjust Settings While you Fish). The changes you make are applied to all Side Imaging views.
Display a Side Imaging View
1. Press and hold the VIEW key.
2. Select Sonar > Side Imaging View.
Display a Side Imaging Combo View
1. Press and hold the VIEW key.
2. To open a Side Imaging Combo View, select Sonar.
To open a Chart Combo View (Side Imaging and Chart together), select Chart.
3. Select a view to display on-screen. Press the RIGHT Cursor key.
NOTE: The available views are determined by your control head model and the installed transducer. See each related section of
the manual (Views, Sonar, Down Imaging, Navigation Overview, etc.) for more information.

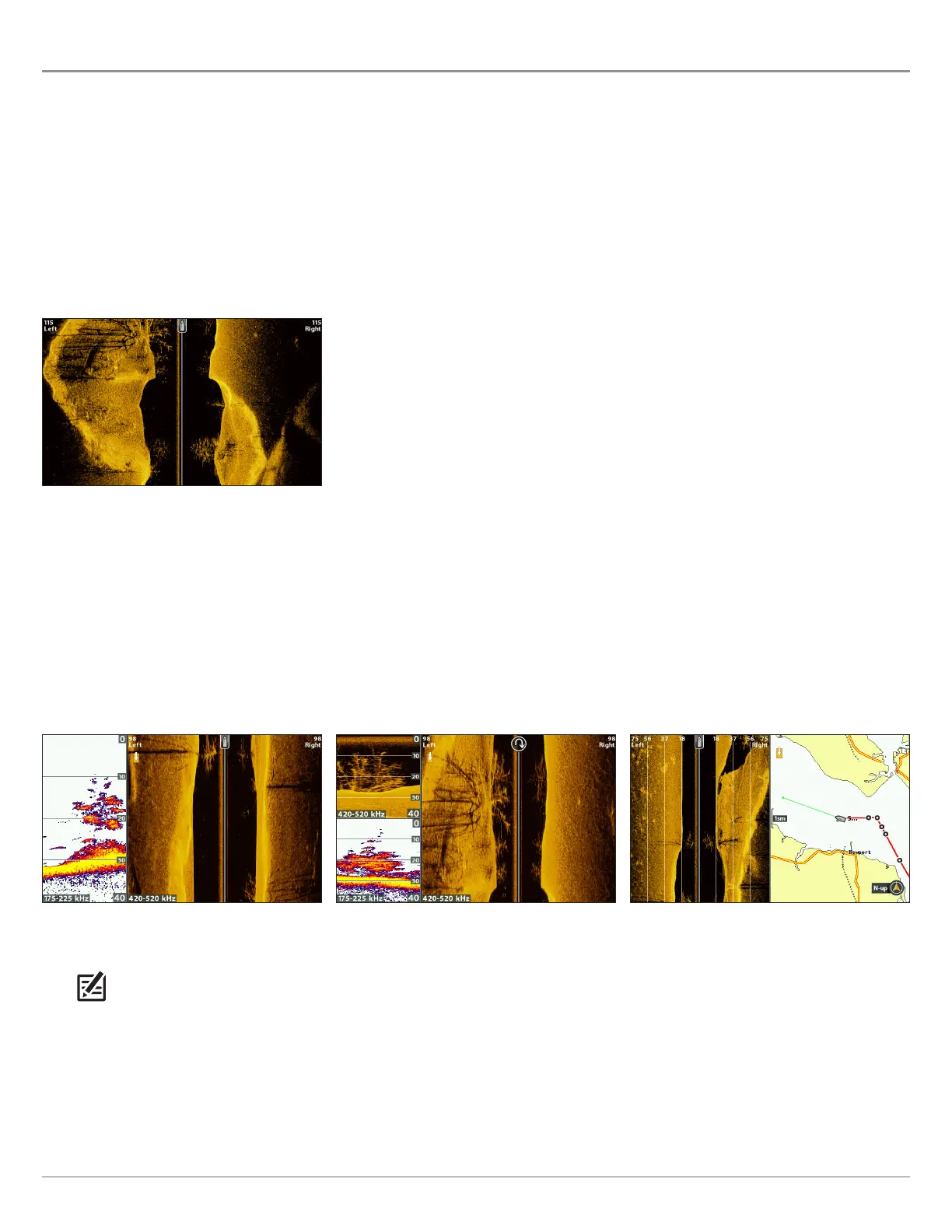

Side Imaging View
Chart > Chart/Side Combo View
For more information, see
Navigation Overview.
Sonar > Down/Side/Sonar Combo View
For more information, see
the Sonar and Down Imaging sections.
Sonar > Side/Sonar Combo View
For more information, see
the Sonar section.
