VIEWS
T
he HELIX control head has many options to display data on-screen, and the data can be displayed in a variety of ways. There are
a
lso several ways to quickly display a view on-screen.
Display a View
The available views on your control head are determined by the model you’ve purchased and the connected transducer.
Display a View from the Views X-Press Menu
1. Press and hold the VIEW key.
2. Select a view category. Press the RIGHT Cursor key.
3. Select a view. Press the RIGHT Cursor key.

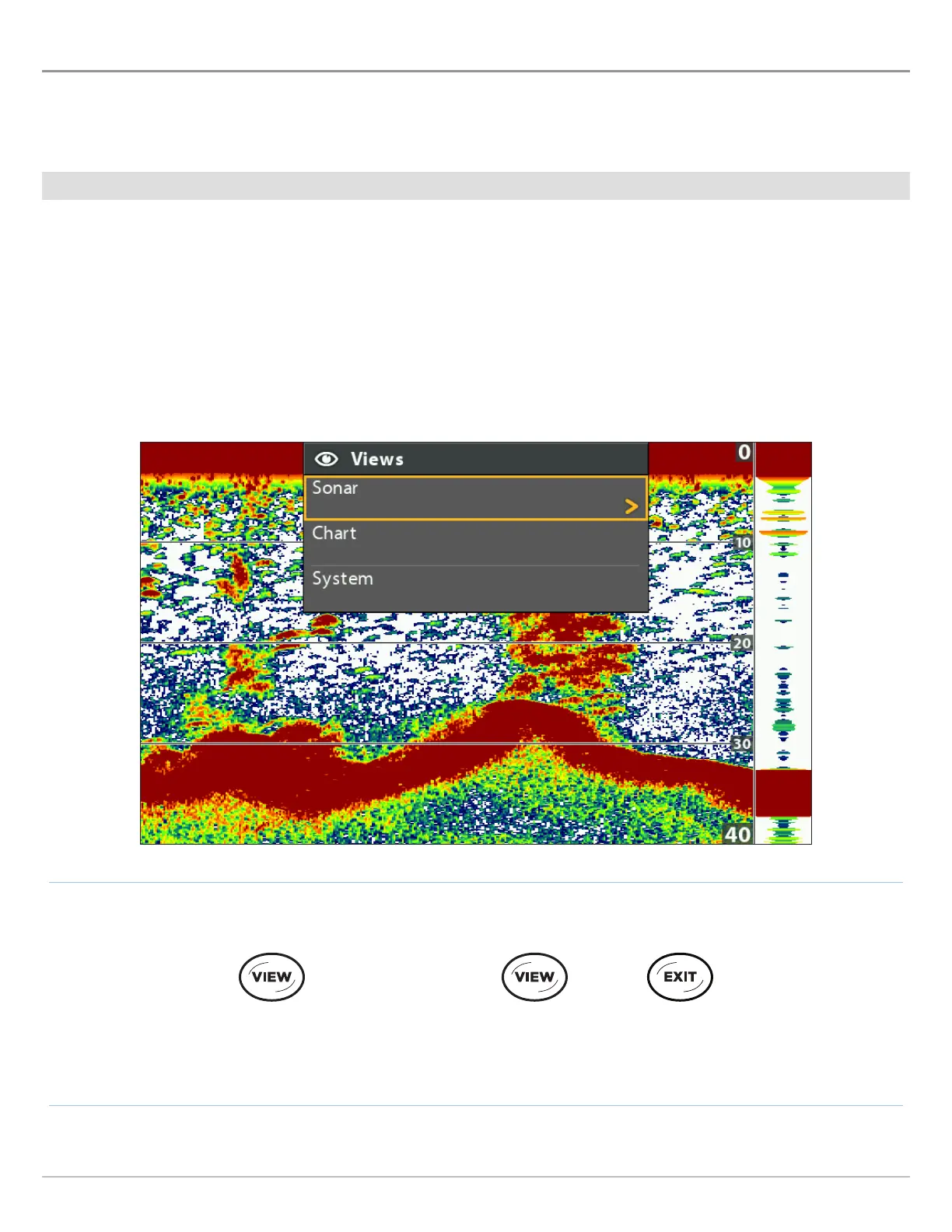

Selecting a View to Display on the Screen
Forward: Press to go
to the Next View
Back: Press to go to
the Previous View
Press and Hold to Open
the Views X-Press Menu
OR

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
