Humminbird HELIX 7 G2 SERIES User Manual

45
Sonar (2D)
CUSTOMIZE THE SONAR VIEW
Y
ou can customize the sonar views by showing or hiding information, such as the temperature graph, depth lines, color bar, and RTS
W
indow. You can also change the color palette.

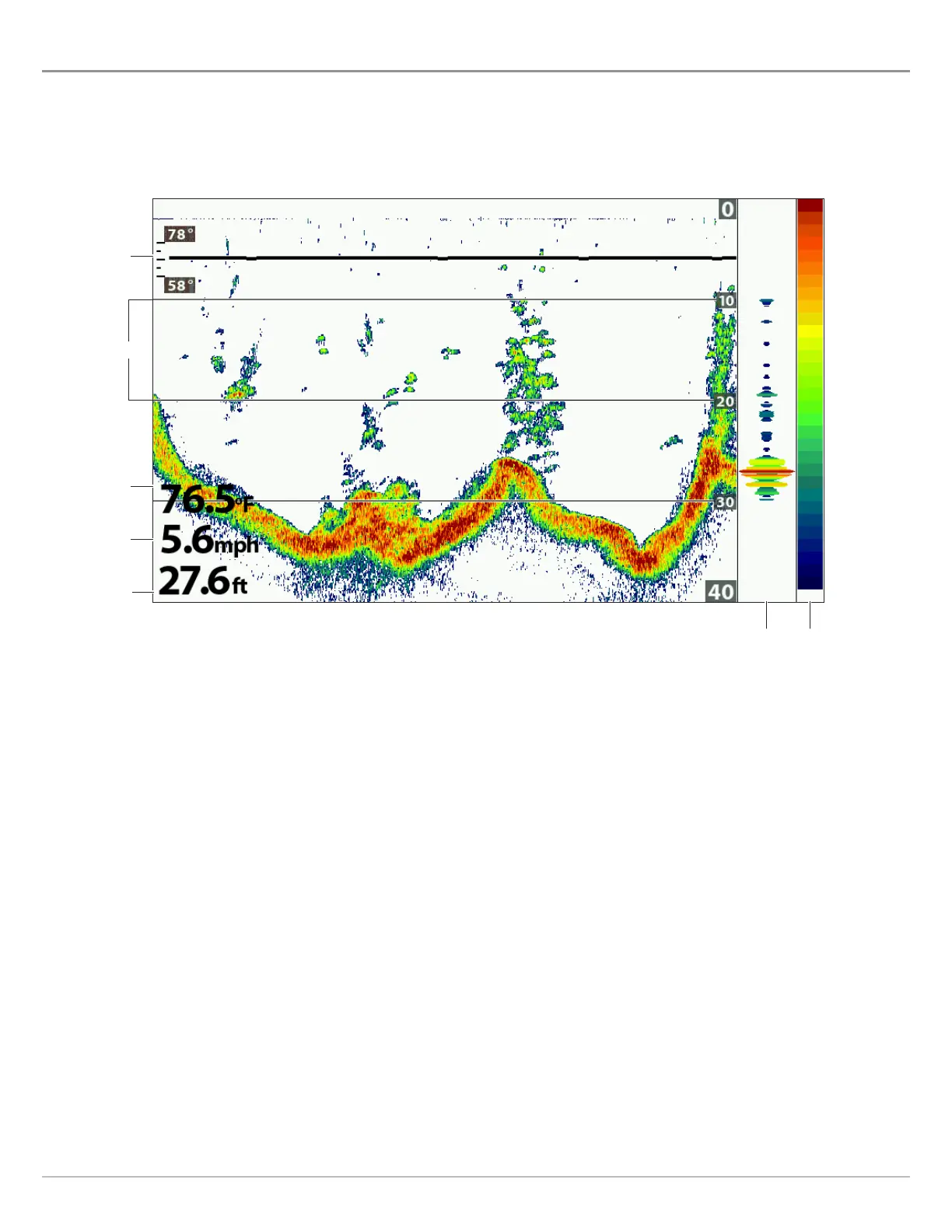

Customizing the Sonar View
temperature
(digital readout
overlay)
depth
(digital readout
overlay)
speed
(digital readout
overlay)
temperature
graph
RTS Window
(A-Scope)
color
bar
depth lines

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
