Sonar (2D)
REVIEW SONAR HISTORY
P
ress any arrow on the Cursor Control key, and the sonar history will freeze and the cursor will display on-screen. If you move the
c
ursor over a sonar return, digital readouts for the cursor position are displayed on the view. The RTS Window continues to update
a
t the fastest rate possible for depth conditions (see Customize the Sonar View).
Freeze the Sonar History
1. Press any arrow on the Cursor Control key.
2. Move the cursor over a sonar return.
NOTE: To mark a waypoint or start navigation to the cursor position, see Navigation in Sonar Views.
Move the Cursor

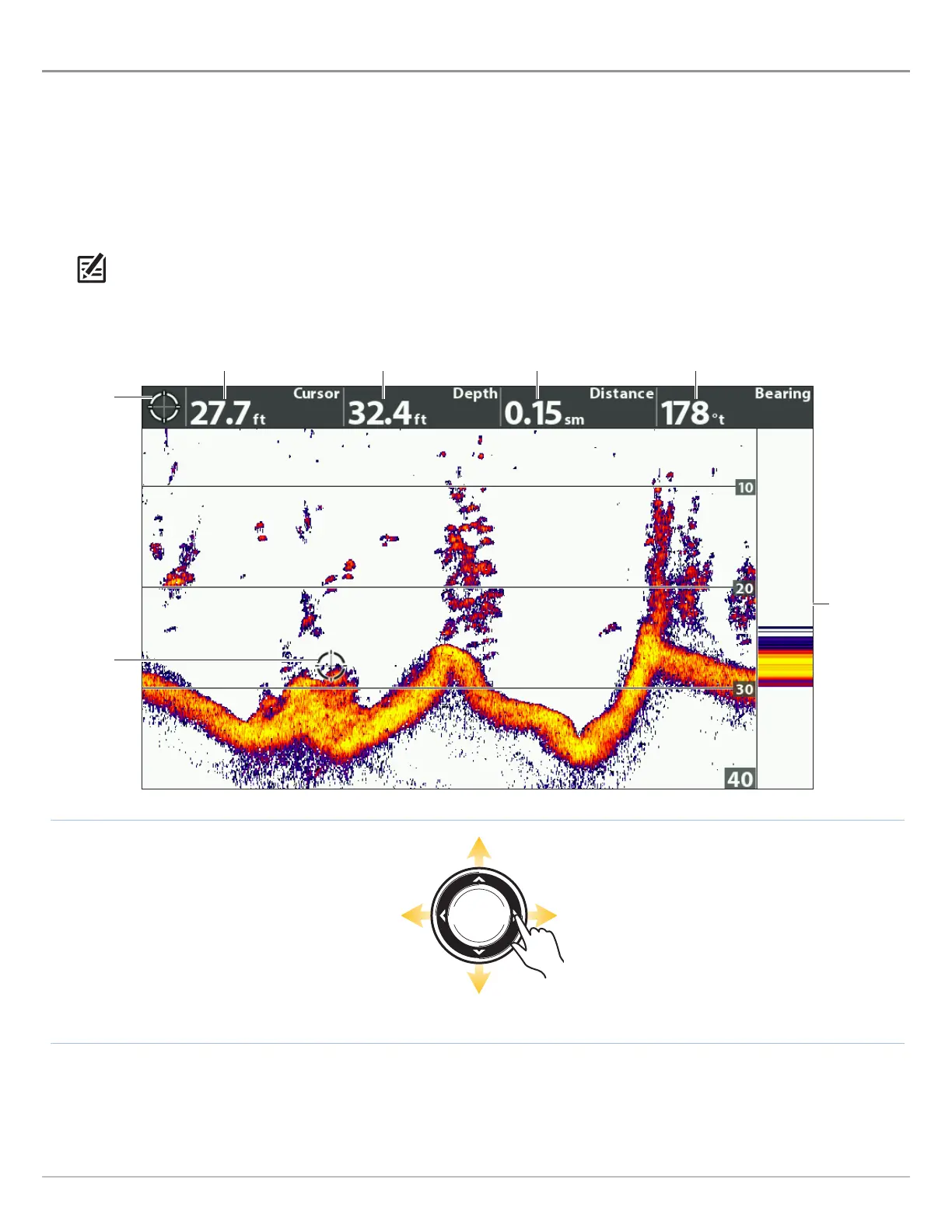

Reviewing the Depth of the Cursor Position
cursor
digital
readouts
RTS Window
cursor
cursor depth depth below cursor distance to cursor position bearing to cursor position

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
