Menu System Overview
MENU SYSTEM OVERVIEW
T
he menu system provides menu options that are determined by the operations mode, on-screen view, and connected accessories.

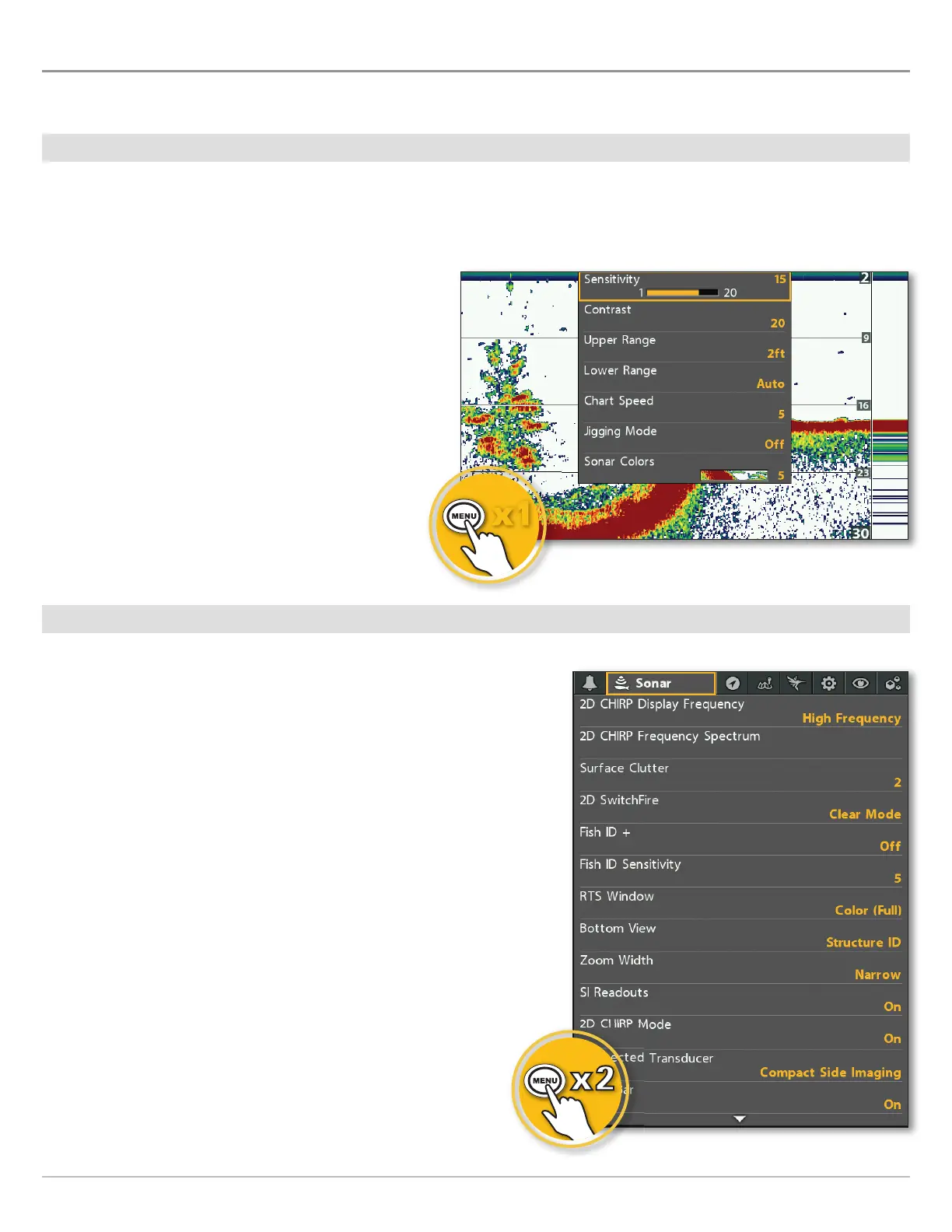

Open an X-Press Menu
The X-Press Menu displays menus that are related to the on-screen view and the operations mode (such as navigation). In this
illustration, the Sonar X-Press Menu is displayed because the Sonar View is displayed on the screen.
Open the X-Press Menu
1. Press the VIEW key repeatedly until the view you want
is displayed on-screen.
2. Press the MENU key once.
Open the Main Menu
The main menu is divided into tabbed categories (Alarms, Sonar,
Navigation, Chart, Humminbird Chart, Setup, Views, and Accessories).
The available tabs and menus are determined by your model and the
connected accessories.
Open the Main Menu
1. Press the MENU key twice.
O
pening the Sonar X-Press Menu
xx11
Opening the Main Menu

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
