Humminbird HELIX 7 G2 SERIES User Manual

74
Circular Flasher
MOVE THE DEPTH CURSOR
Use the Depth Cursor to identify a depth on the Circular Flasher View.
N
OTE: Ice Fishing Mode must be turned on to enable this feature (see Display the Circular Flasher View On-Screen).
1. Activate: Press the DOWN Cursor key, and the purple cursor line will display on the dial.
2. Adjust the Cursor: Press the UP or DOWN Cursor keys.
3. EXIT: Press the EXIT key.

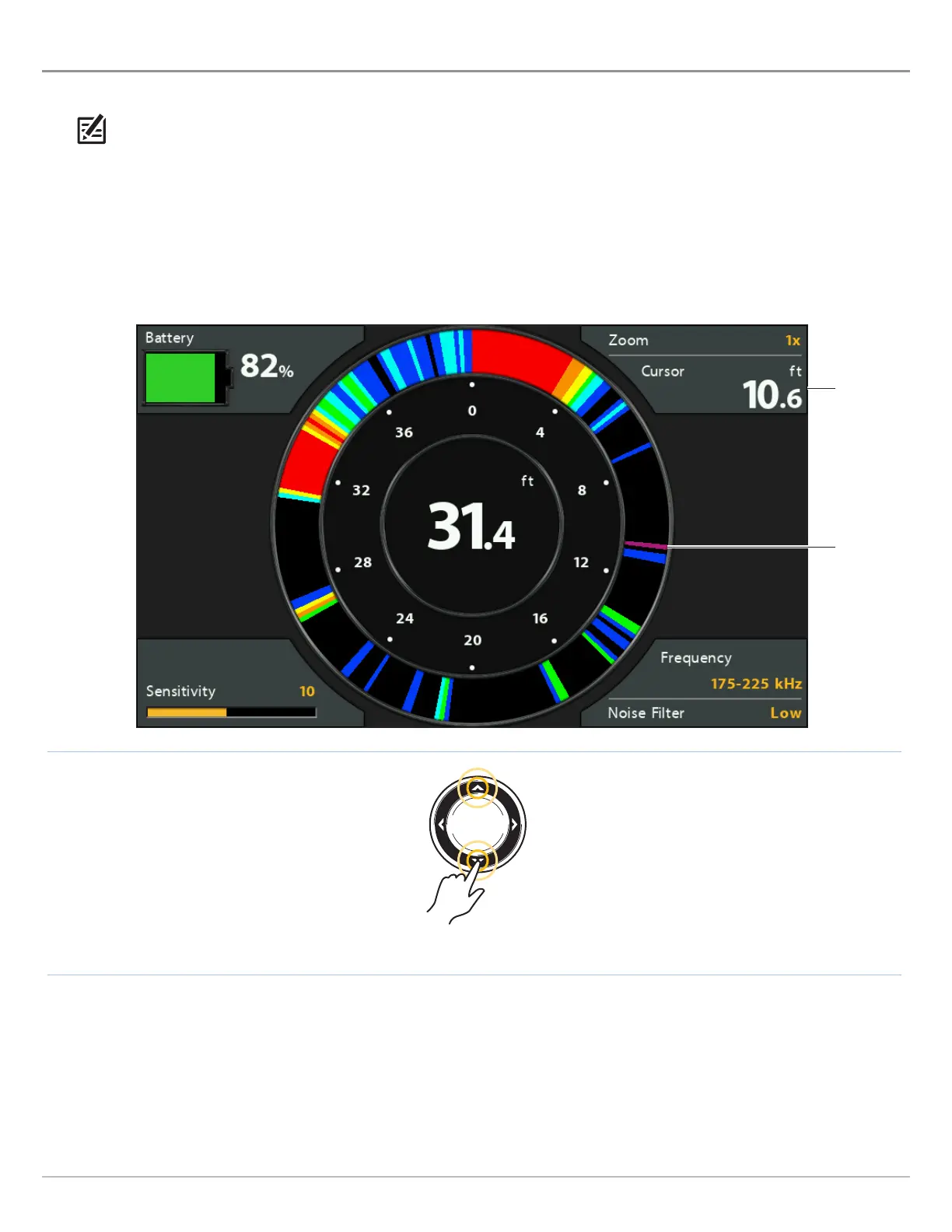

Circular Flasher View with Depth Cursor Displayed
depth cursor
setting
depth cursor
(purple line)
Move the Cursor

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
