Down Imaging Sonar
ADJUST SETTINGS WHILE YOU FISH (DO
WN
IM
AGING
X-PR
ESS
ME
NU
)
T
he X-Press Menu provides menu options to adjust the sensitivity and range as you fish. You can also control how fast the sonar
h
istory scrolls across the screen. The menus allow you to see more or less of the sonar returns from the transducer beams as you
a
djust each setting. Also, you can use key shortcuts on the view.

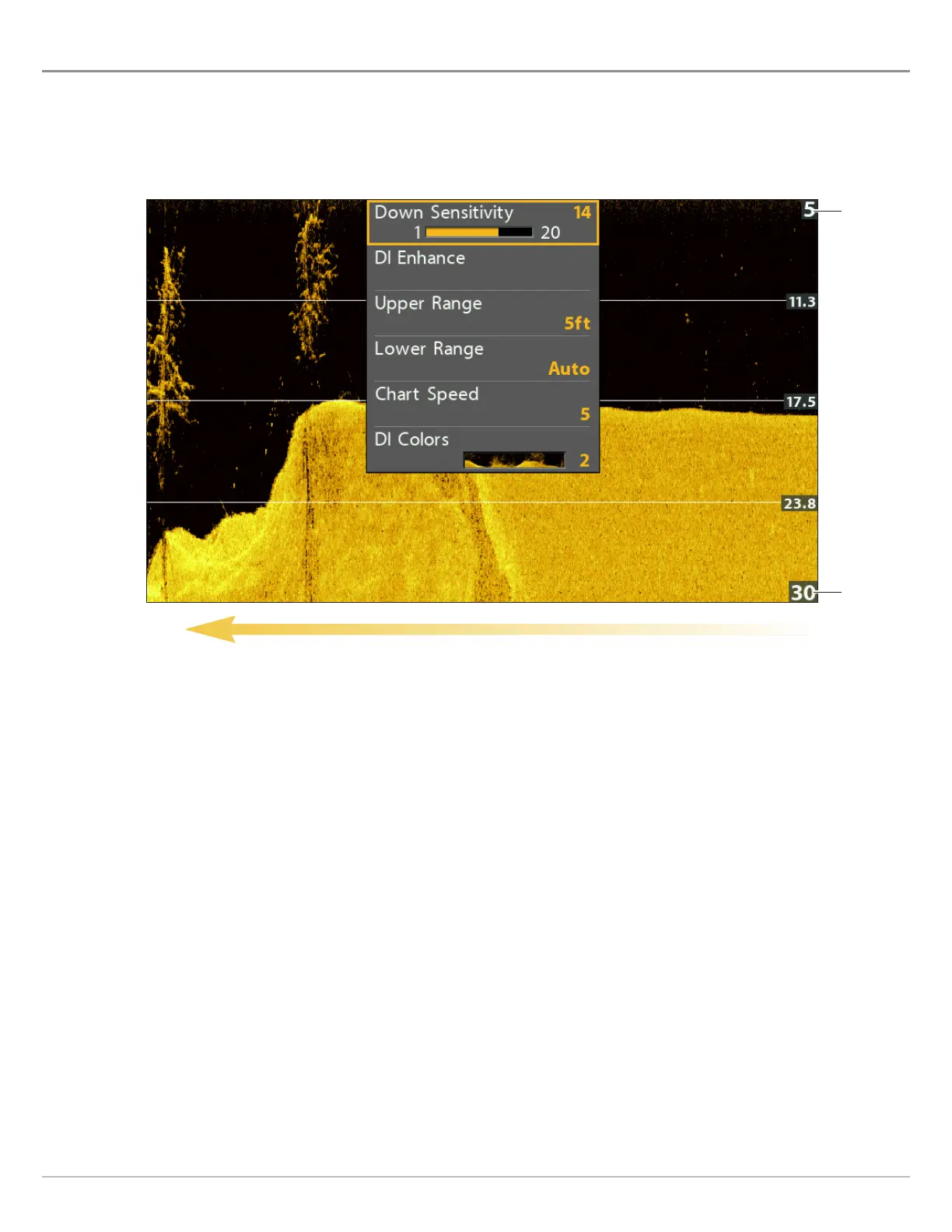

Adjusting Settings from the Down Imaging X-Press Menu
chart speed
lower range
upper range

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
