Down Imaging Sonar
CUSTOMIZE THE DOWN IMAGING VIEW
Y
ou can customize the Down Imaging views by showing or hiding information, such as depth lines, temperature graph, and digital
r
eadouts. You can also change the color palette.
NOTE: Digital readouts can be displayed as an overlay, or they can be displayed in data boxes (see Views: Display Digital
Readouts).
Show/Hide Depth Lines
The depth lines show incremental marks between the upper and lower depth range. See Adjust Settings While you Fish for details.
The Depth Lines menu is shared with the Sonar View, so turning them on or off will affect the Sonar Views and the Down Imaging
Views.
1. Main Menu (Advanced User Mode): Press the MENU key twice. Select the Sonar tab.
2. Select Depth Lines.
3. Select On (show) or Off (hide).
Show/Hide the Temperature Graph
The temperature graph displays the temperature changes over the recent sonar history. A temperature input from the installed
transducer or temp/speed accessory is required to enable this feature. The Temperature Graph menu is shared with the Sonar
View, so turning it on or off will affect the Sonar Views and the Down Imaging Views.
1. Main Menu: Press the MENU key twice. Select the Sonar tab.
2. Select Temperature Graph.
3. Select On (show) or Off (hide).

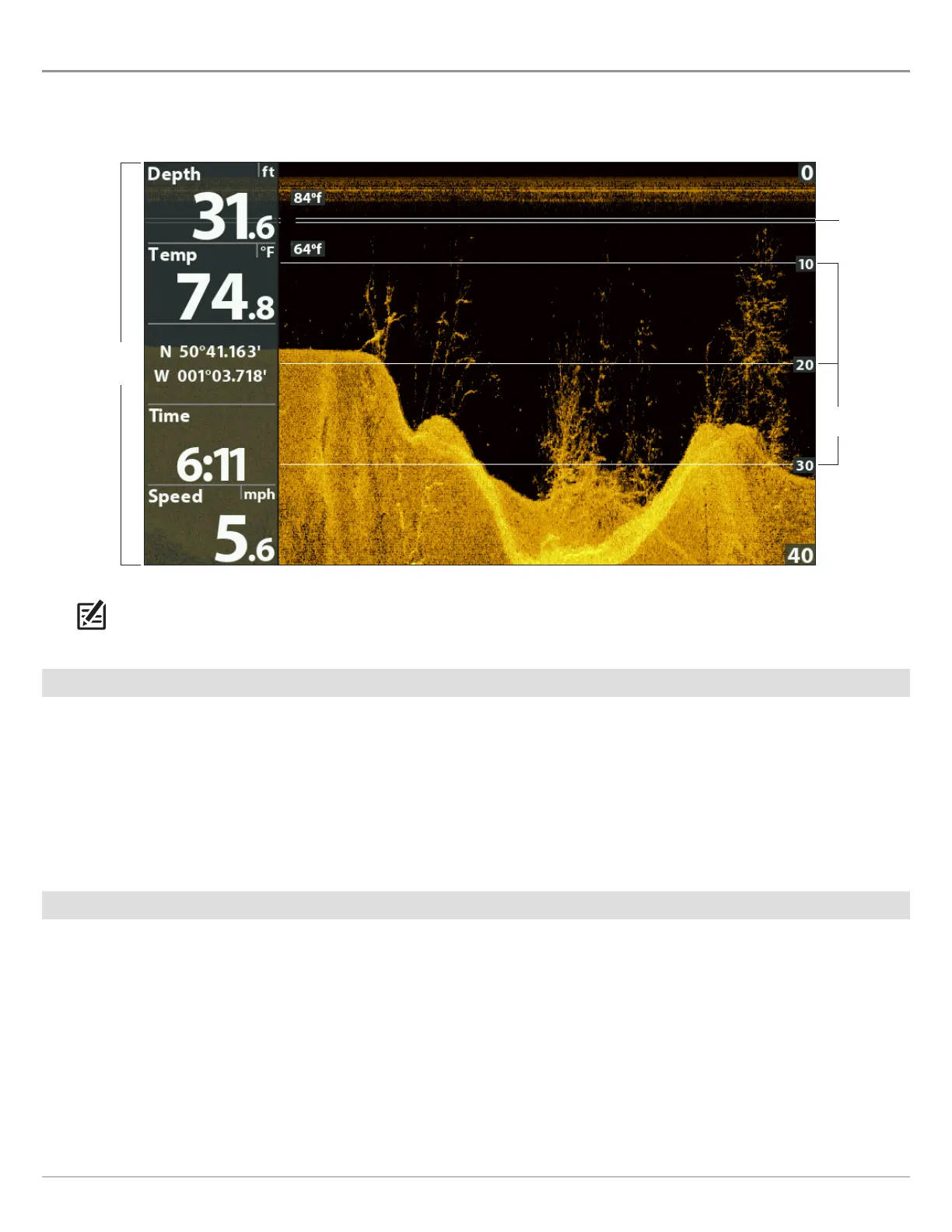

Customizing the Down Imaging View
digital
readouts set
to boxes
depth
lines
temperature
graph
