Down Imaging Sonar

Change the View Colors

The DI Colors menu changes the palette used to display sonar returns on the view.

Change the Down Imaging Colors Palette

1. Down Imaging X-Press Menu: With a Down Imaging View displayed on-screen, press the MENU key once.

2. Select DI Colors.

3. Select a palette.

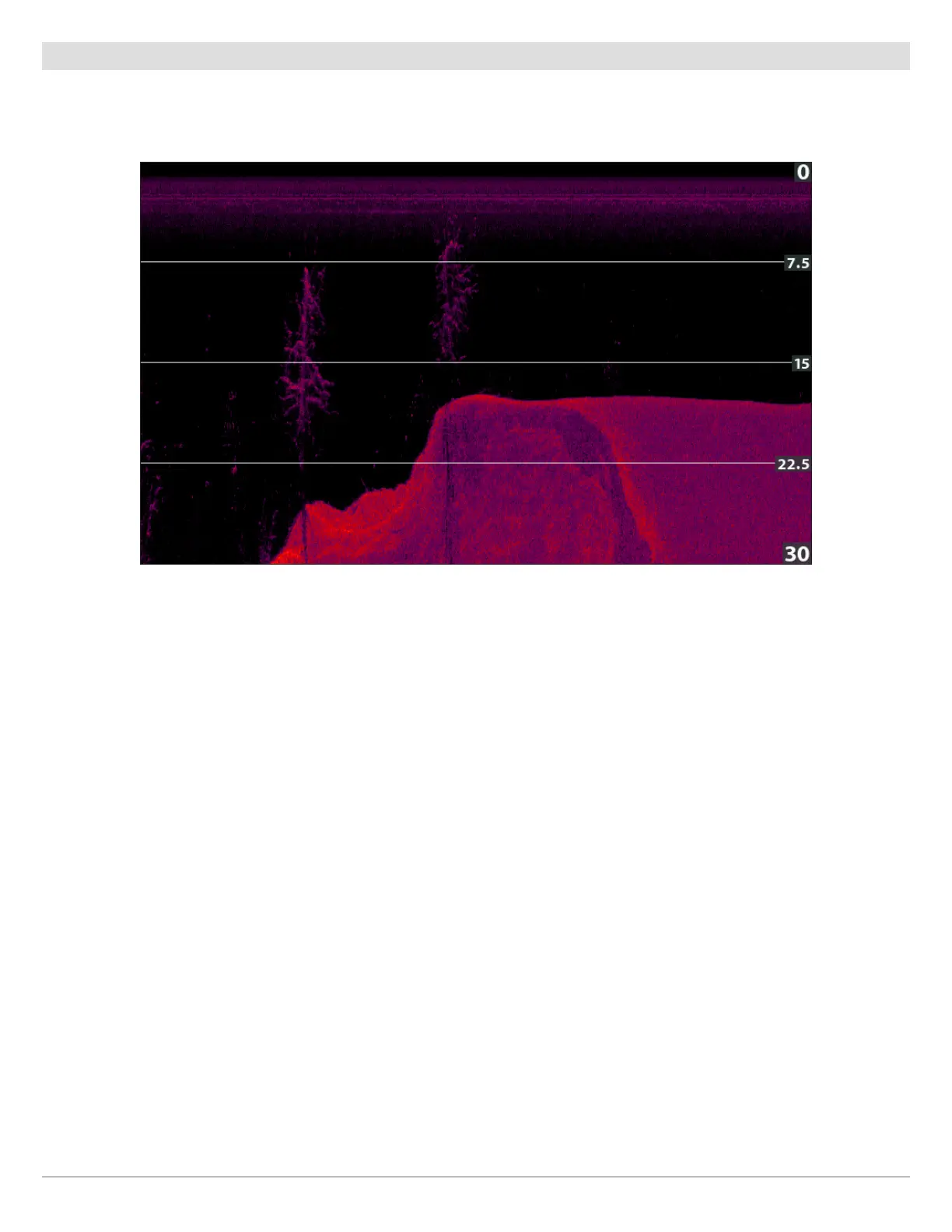

Down Imaging View with Palette 10 Selected (DI Colors)
