77
Down Imaging Sonar
DISPLAY A DOWN IMAGING VIEW ON-SCREEN (DO
WN
IM
AGING AND
SI
DE
IM
AGING MODELS ONLY
)
T
here are a variety of views available to display Down Imaging data. You can also customize the view by showing or hiding information
(
see Customize the Down Imaging View), and you can adjust the sonar settings to refine the information displayed on-screen (see
A
djust Settings While you Fish). The changes you make are applied to all Down Imaging views.
Display a Down Imaging View
1. Press and hold the VIEW key.
2. Select Sonar > Down Imaging View.
Display a Down Imaging Combo View
1. Press and hold the VIEW key.
2. To open a Down Imaging Combo View, select Sonar.
To open a Chart Combo View (Down Imaging and Chart together), select Chart.
3. Select a view to display on-screen. Press the RIGHT Cursor key.
NOTE: The available views are determined by your control head model and the installed transducer. See each related section of
the manual (Views, Sonar, Side Imaging, Navigation Overview, etc.) for more information.

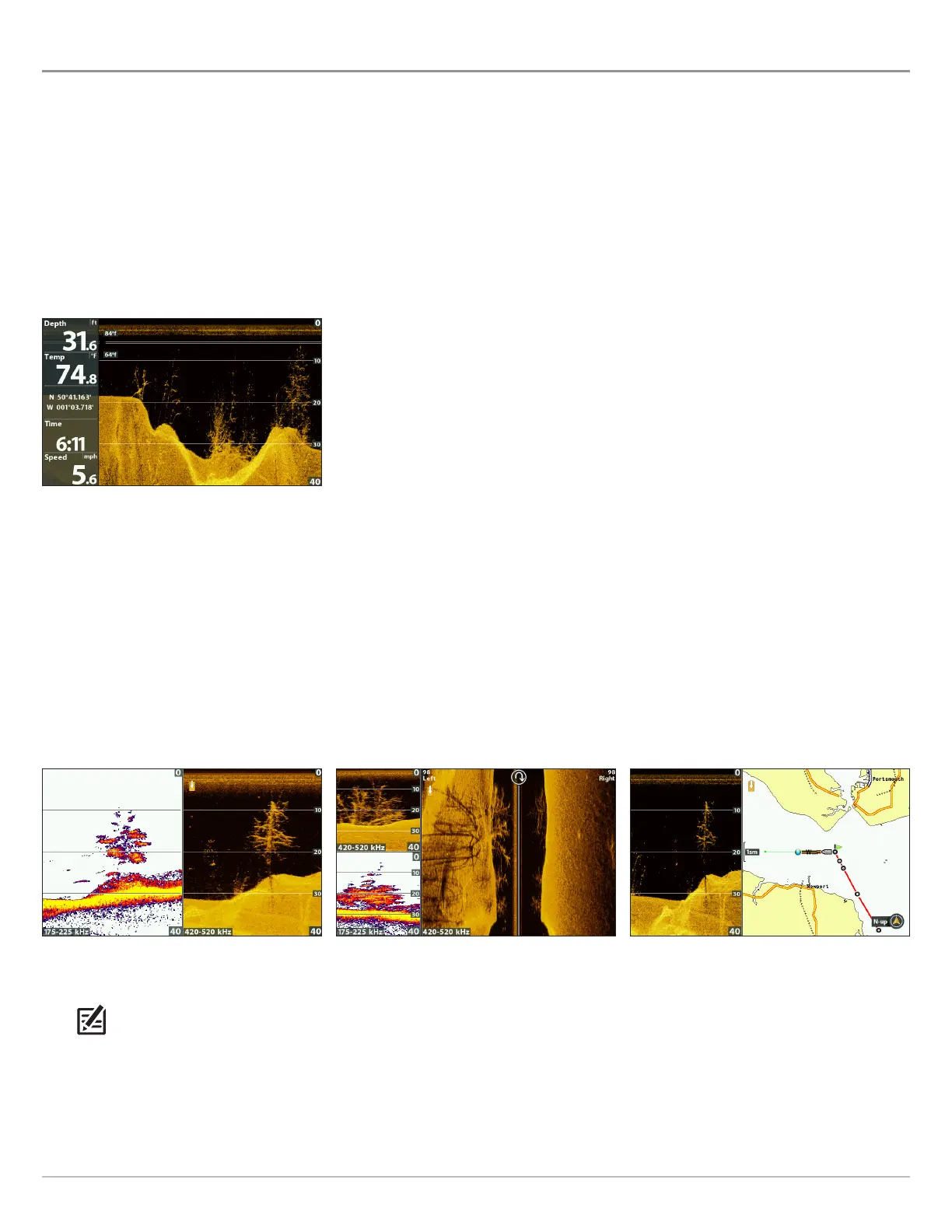

Down Imaging View
Chart > Chart/Down Combo View
For more information, see
Navigation Overview.
Sonar > Down/Side/Sonar Combo View
For more information, see
the Sonar and Side Imaging sections.
Sonar > Down/Sonar Combo View
For more information, see
the Sonar section.
