185
AutoChart Live
DISPLAY/HIDE YOUR CUSTOM MAP
T
he custom map can be displayed or hidden while you are recording or after the map is saved. You can also adjust the transparency.
Display the Map
1
. Chart X-Press Menu: With a Chart View displayed on-screen, press the MENU key once.
2. Select AutoChart Live. Press the RIGHT Cursor key.
3. Select AutoChart Live. Select Visible.
Adjust the Transparency
1. Select Transparency.
2. Press the RIGHT or LEFT Cursor keys to adjust the setting.

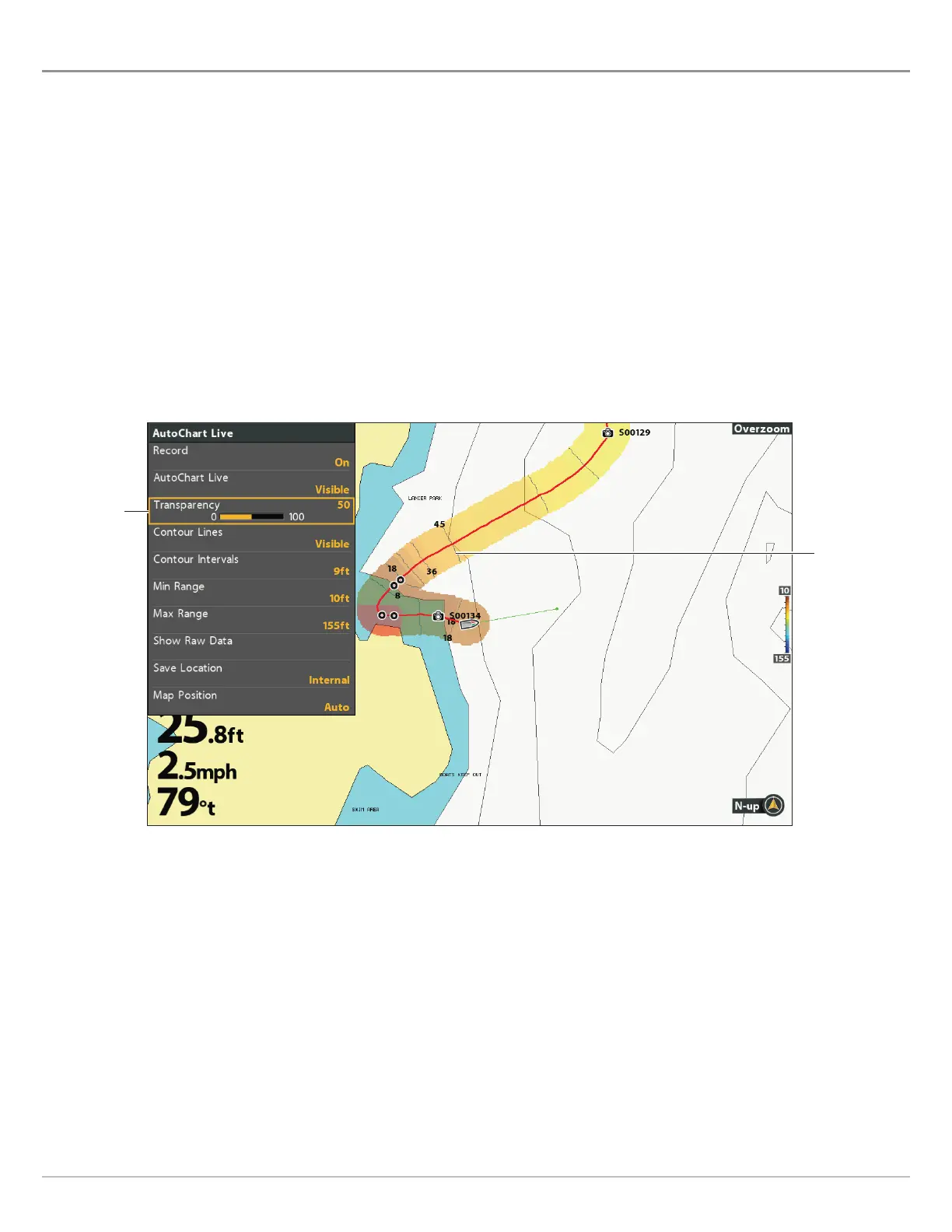

Adjusting the Overlay Transparency
depth map with
transparency
set to 50
adjust the
transparency
setting
