Humminbird HELIX 7 G2 SERIES User Manual

160
Manage Waypoints
Create a New Waypoint
Use the following instructions to create a new waypoint and add your own settings. To mark a waypoint in Chart View, see Navigation
Overview: Waypoints.
1. Open a Group or Route: Select a group or route (where you want to save the new waypoint). Press the RIGHT Cursor key.
Home is the highest level group, or the main directory, in the Waypoint Management dialog box.
2. Select Open. Press the RIGHT Cursor key.
3. Select Options > New > New Waypoint.
4. Create New Waypoint: Use the Cursor Control key to set the available fields. See Edit a Saved Waypoint for details.
5. Save: Select Save. Press the RIGHT Cursor key.

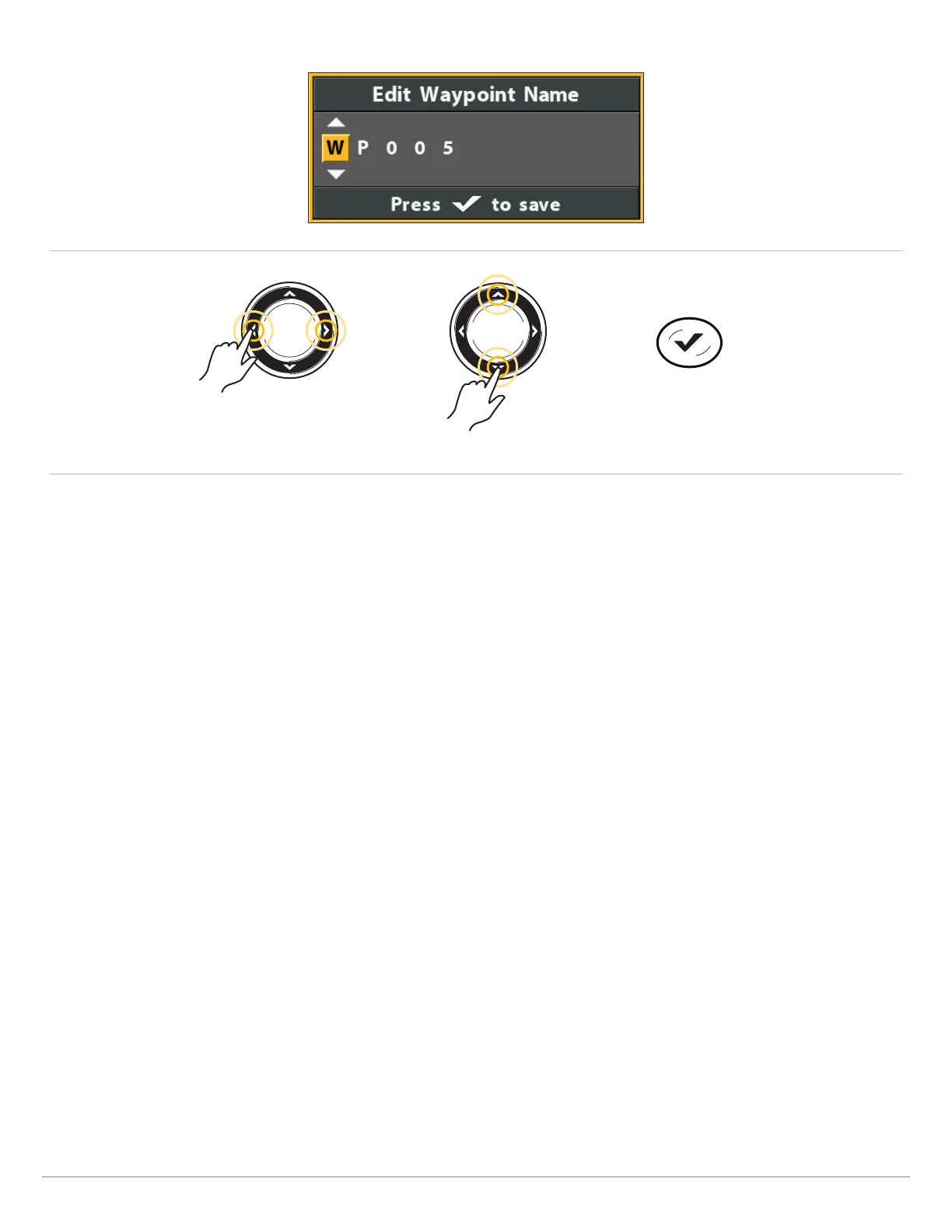

Changing the Waypoint Name
Move from Space to Space Select a Letter, Number, or Symbol
Save

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
