Humminbird HELIX 7 G2 SERIES User Manual

53
Sonar (2D)
Set the Bottom View Display
B
ottom View selects the method used to represent bottom and structure on the display. Bottom View is also affected by the palette
selected in Sonar Colors (see Customize the Sonar View: Change the View Colors).
Change the Bottom View Setting
1. Main Menu: Press the MENU key twice. Select the Sonar tab.
2. Select Bottom View.
3. Select one of the following modes:

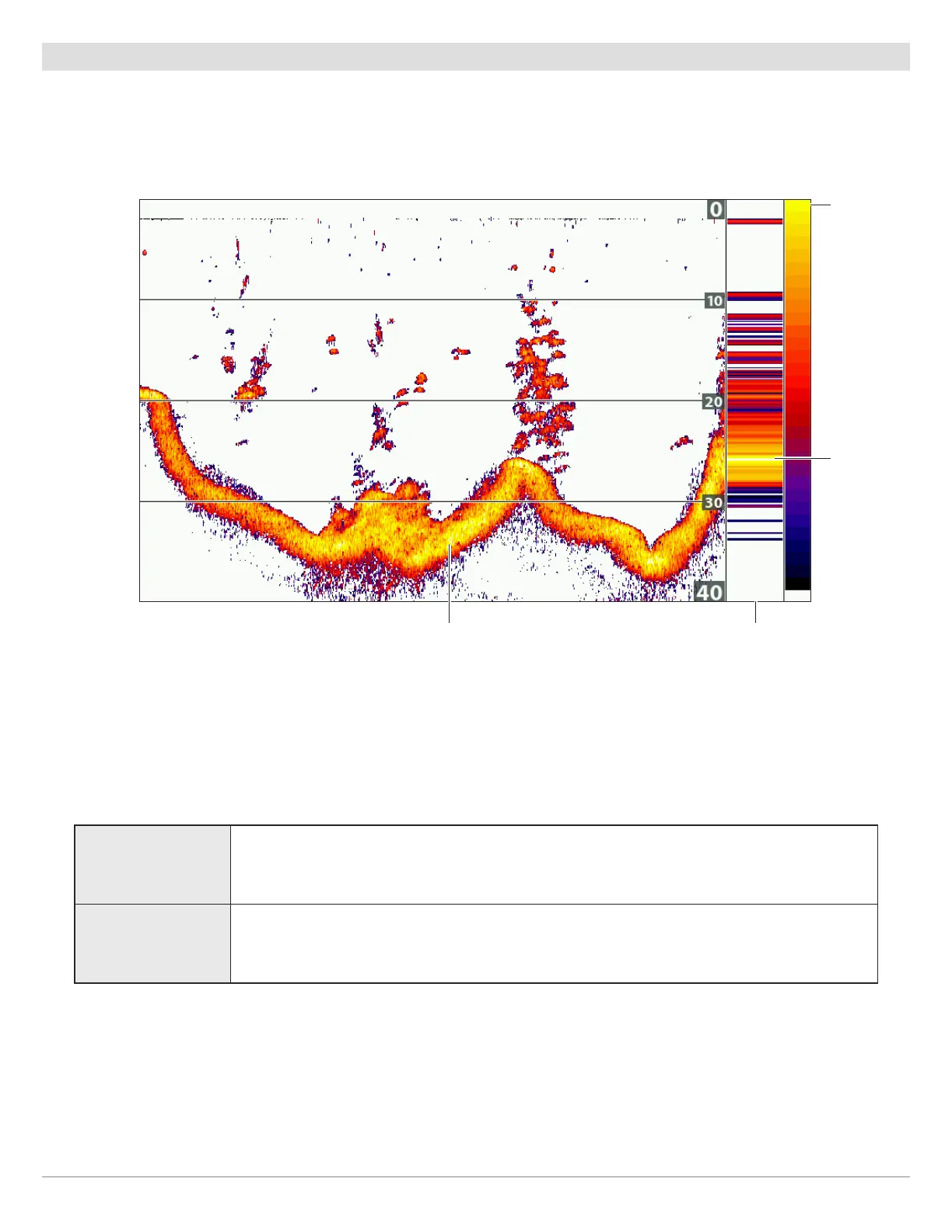

Bottom View set to WhiteLine
color bar with
sonar colors
set to palette 1
RTS Windowwhite shows strongest returns
white shows
strongest
returns
Structure ID
Structure ID will display the strongest return as specified by the palette selected in the Sonar
Colors menu.
WhiteLine
WhiteLine highlights the strongest sonar returns in white. This has the benefit of clearly
defining the bottom on the display.

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
