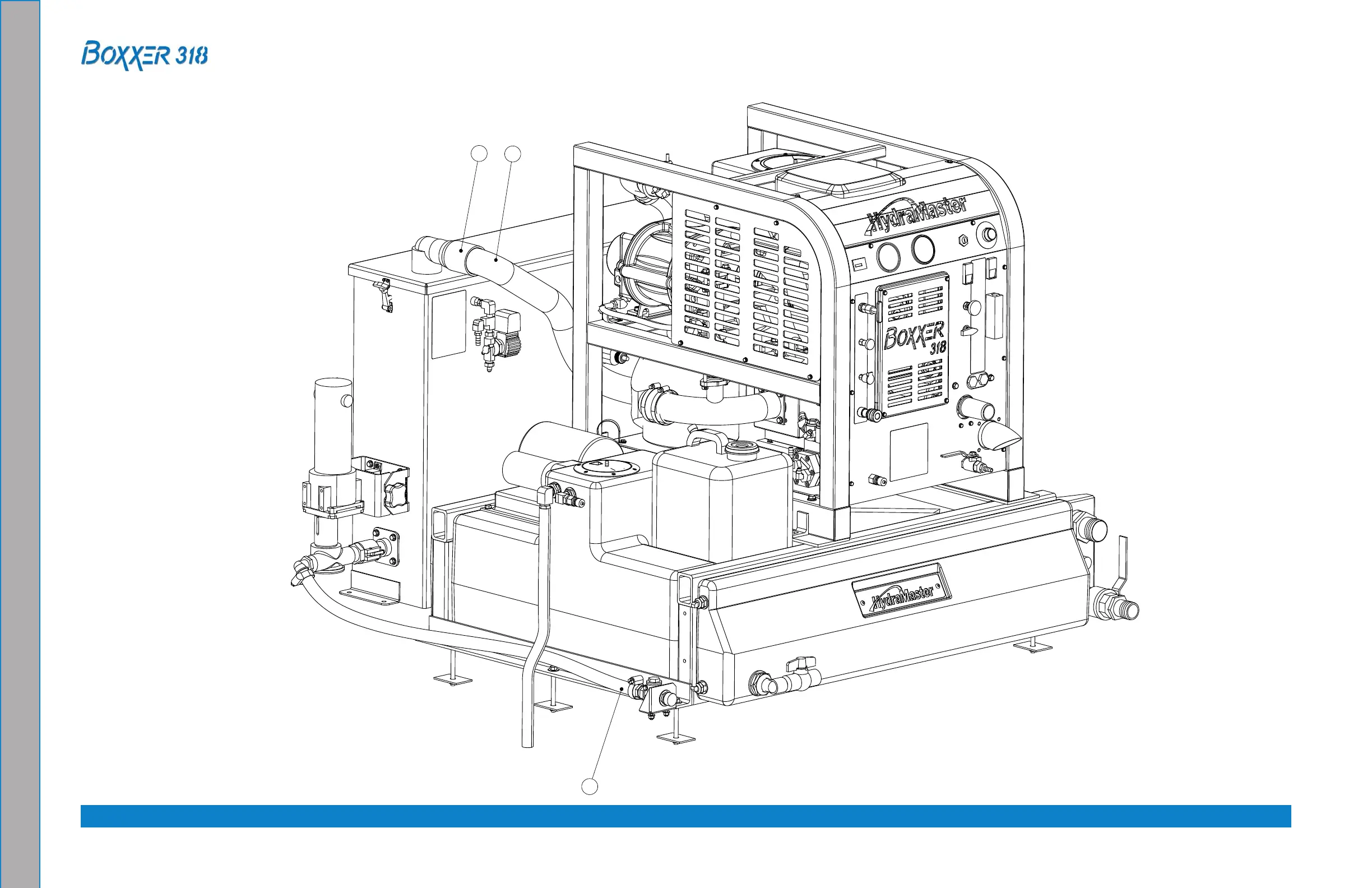

HydraMaster Boxxer 318 - Figure 8-27. Boxxer 318 on 85 RMT W; 50 Urt Assembly - Left View

Machine Assemblies and Parts Lists: 8-36
Boxxer 318 on 85 RMT w/ 50 URT Assembly - Left ViewFigure 8-27.
7087
10
1
4
13
12
1
2
11
3
5
6
7
9
8
12
10
5
14
NOTES:
1. REFERENCE BOM'S:
000-078-052 MACHINE MOUNTING KIT
000-079-099 DURA-FLOW APO
000-079-101 50 GALLON URT MOUNT KIT
000-159-118 85 GALLON RMT
610-003-001 50 GALLON URT
610-050-061 BOXXER 318 CONSOLE
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
14 1 ASSEMBLY, APO CONNECTION KIT VARIOUS - - - 7243
13 1 ASSEMBLY, DUMP & VACUUM BRACKET VARIOUS - - - 7088
12 2 CUFF, Ø2" VACUUM HOSE VARIOUS 000-052-169 - - -
11 1 HOSE, Ø1.5" RED STRIPE TYPE 55 - BULK VARIOUS 000-068-135 - - -
10 1 HOSE, Ø2" VACUUM - BLACK VARIOUS 000-068-042 - - -
9 6 WASHER, 3/8" LOCK STEEL 000-174-021 - - -
8 6 WASHER, 3/8" FLAT STEEL 000-174-005 - - -
7 6 SCREW, 3/8"-16UNC x 4" LG. HEX HEAD (FULL THREAD) STEEL 000-143-150 - - -
6 1 HOSE, Ø2.50" I.D. x 30" LG. FLEXIBLE WIRE REINFORCED VARIOUS 000-068-776 - - -
5 1 ASSEMBLY, 50 GALLON URT FOR 85 RMT VARIOUS - - - 6526
4 1 ADAPTER, SILENCER EXHAUST ASTM A513 000-001-107 6242
3 1 CLAMP, Ø2.5" MUFFLER STEEL 000-033-058 - - -
2 1 ASSEMBLY, MACHINE VARIOUS - - - 7010
1 1 ASSEMBLY, 85 GALLON ROTOMOLDED TANK VARIOUS - - - 5566
BOXXER 318- - -
- - -
D
C
B
A
A
B
C
D
1
2
3
45
6
7
8
8
7
6
5
4
3
2
1
E
F
- - -
ANGULAR= 1°
BREAK ALL SHARP EDGES 0.005-.015
FINISH
125
DRAWN
CHECKED
APPVD
SCALE: 1:5
SHEET 1 OF 2
E
F
MACHINE
Mukilteo, Washington 98275
DRAWING NUMBER
B.R.T.
-
7087
D
SIZE
PROPRIETARY INFORMATION
11015 47th Avenue West,
.XXX= .010
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:
APPLICATION
NEXT ASSY USED ON
L.O.L.
B.R.T.
03/21/2008
03/21/2008
03/21/2008
SEE NOTES
REV
ASSEMBLY, BOXXER 318 ON 85 RMT w/ 50 URT
TOLERANCES
.X= .1
.XX= .03
UNLESS OTHERWISE NOTED
- - -
