HydraMaster Boxxer 318 - Silencer Assembly Parts List

8-15: Machine Assemblies and Parts Lists
Silencer Assembly Parts List

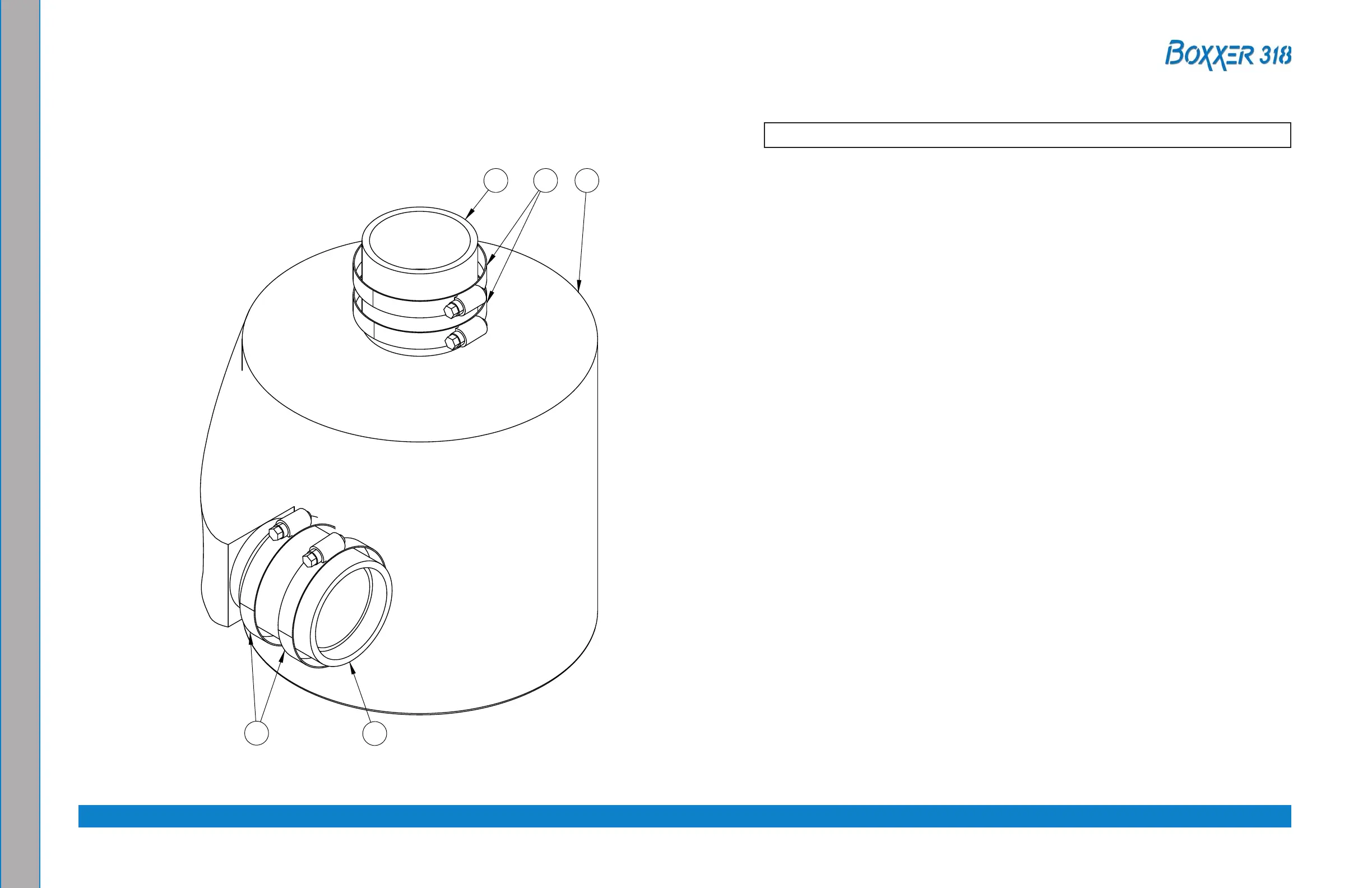

Silencer AssemblyFigure 8-11.
7075 Rev. A
1 000-093-108 Silencer, Ø2.5” O.D. Inlet/Outlet 1
2 000-068-104 Hose, Ø 2.5” I.D. Silicone x 2.5” Lg. 2
3 000-033-012 Clamp, Size #44 Hose 4
