5-3: Water and Chemical System

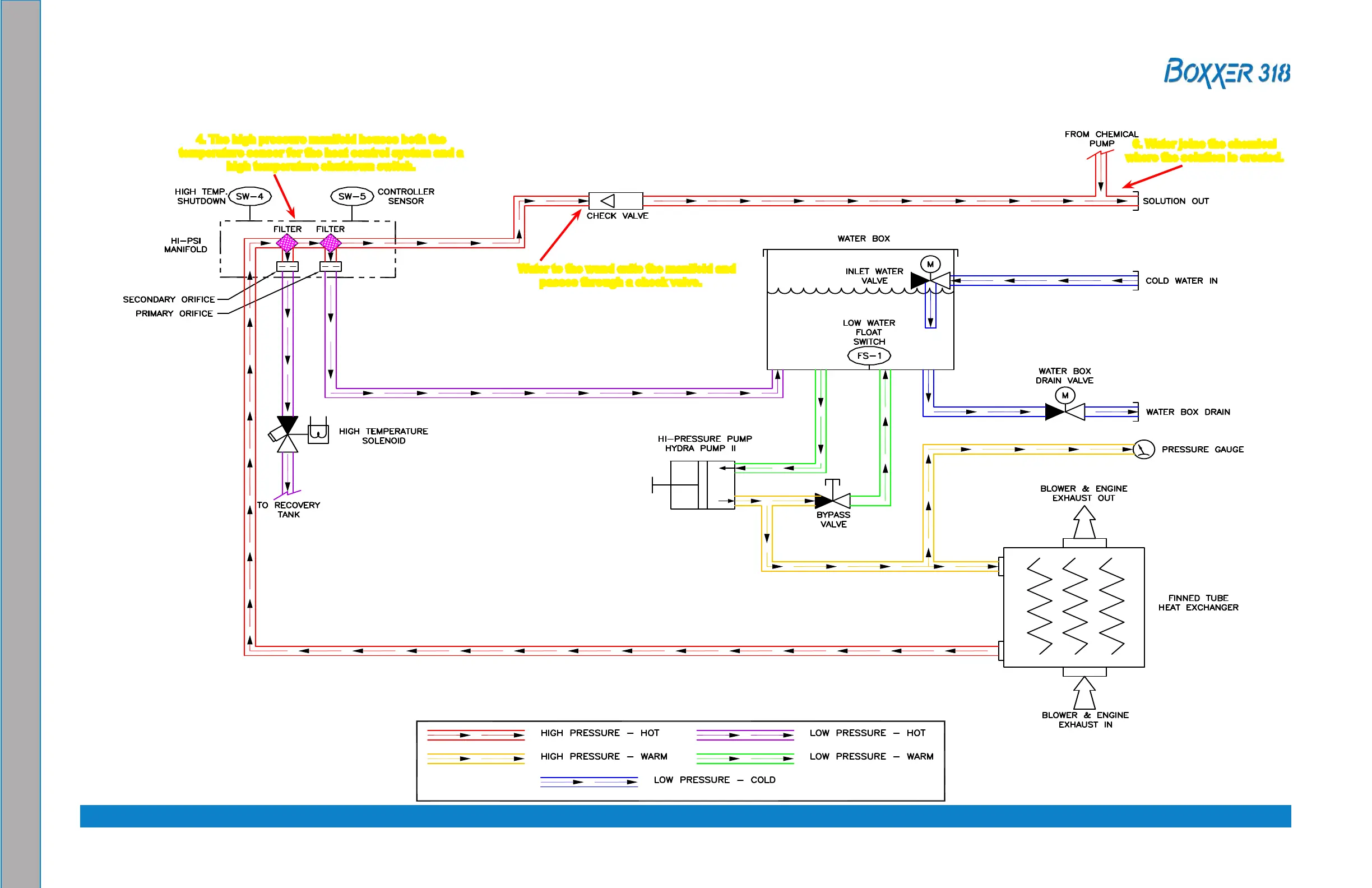

Annotated Water, Chemical and Solution Flow Diagram - View 1 of 2Figure 5-2.
7027 Rev. A
4. The high pressure manifold houses both the
temperature sensor for the heat control system and a
high temperature shutdown switch.
5. Water to the wand exits the manifold and
passes through a check valve.
6. Water joins the chemical
where the solution is created.
To Next Page
